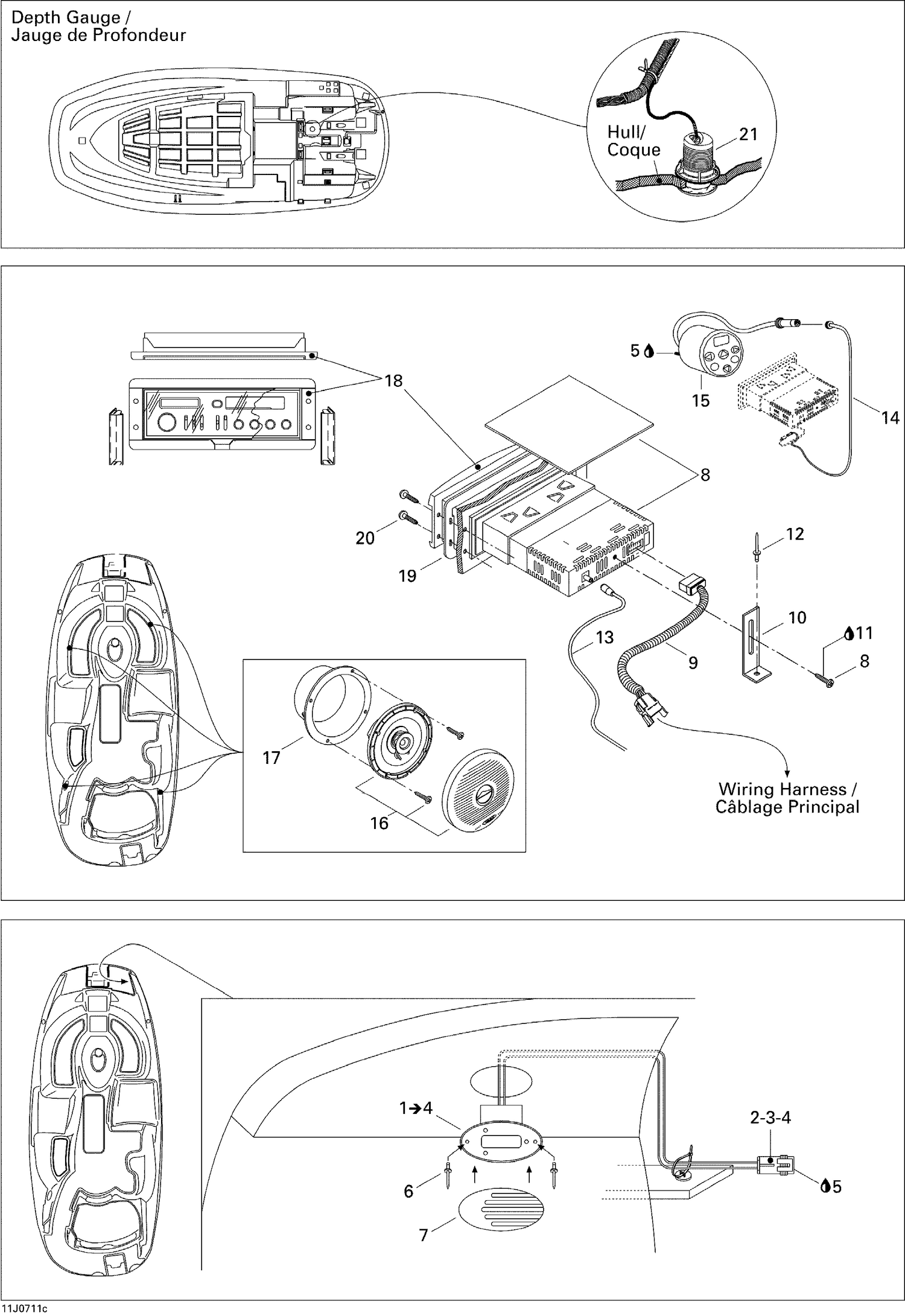

| Ref | Part Number | Description |
|---|
| 2 |
409209500 |
Female Housing, 2 Circuits |
| 3 |
278001014 |
Female Terminal |
| 4 |
278001013 |
Wire Seal |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
293150005 |
Pop Rivet 3/16" |
| 7 |
204470548 |
Horn Cover |
| 8 |
Not |
Available As Spare Part - Stereo Compact Disk Player/radio |
| 9 |
204470930 |
Stereo Adaptor Harness |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
204000081 |
Pop Rivet 3/16" |
| 13 |
204470931 |
Antenna |
| 14 |
204470993 |
Stereo Remote Cable |
| 15 |
Not |
Available As Spare Part - Stereo Remote Control |
| 16 |
Not |
Available As Spare Part - Speaker, White |
| 17 |
204470982 |
SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 18 |
204470266 |
Radio Cover |
| 19 |
204470257 |
RADIO COVER GASKET - Call your local BRP dealership |
| 20 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
