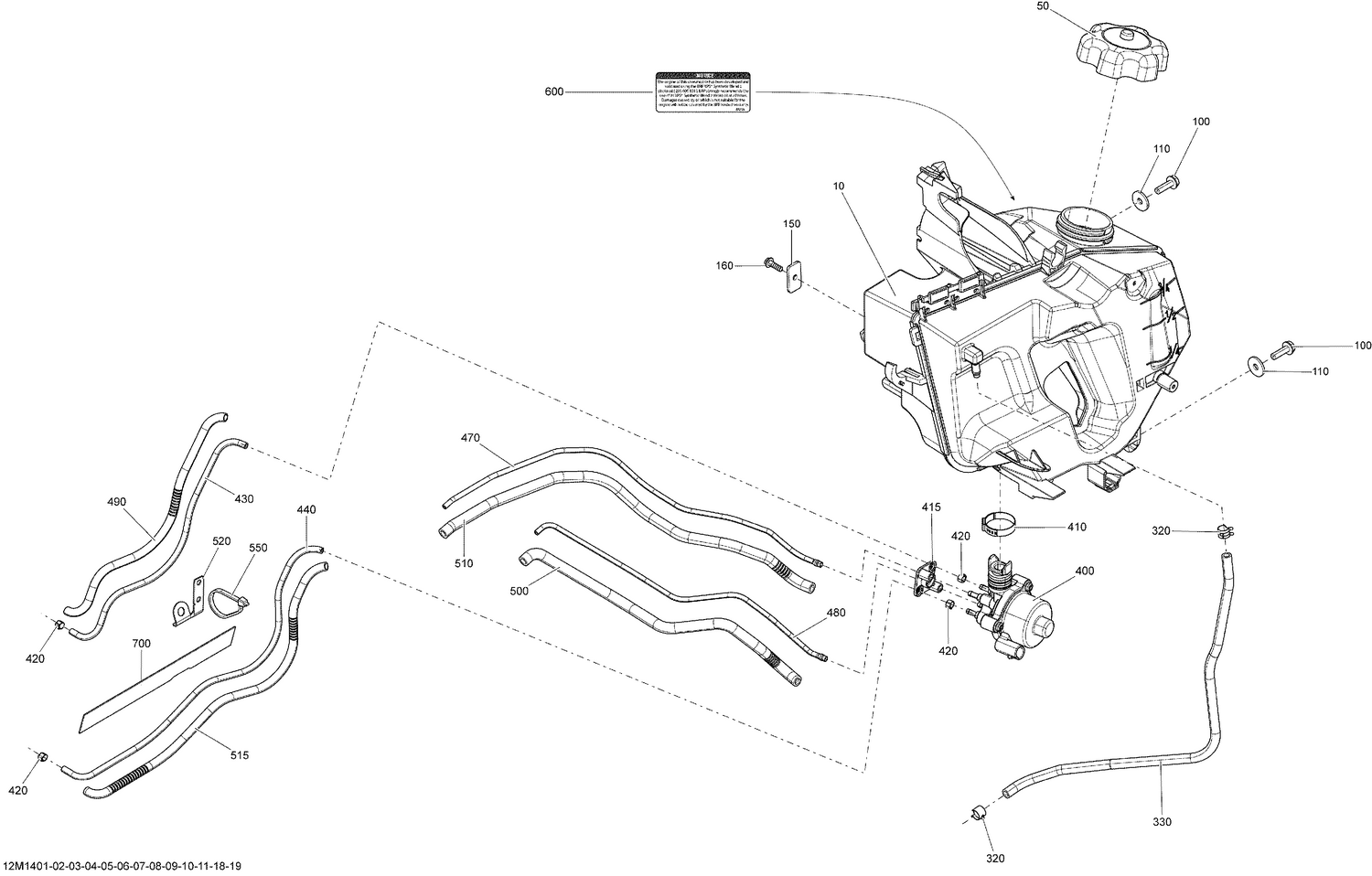

02- Oil System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 519000311 | Oil Tank This part replaces 519000299. |
| 50 | 519000273 | Cap |
| 100 | 250000331 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 110 | 224061201 | Flat Washer |
| 150 | 519000179 | Bracket |
| 160 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 320 | 414554800 | Spring Clamp |
| 330 | 219704410 | Polyurethane Hose 10000Mm Long |
| 400 | 519000376 | Pump_Hydraulic This part replaces 519000281. |
| 410 | 293650099 | Crimp Clamp |
| 415 | 519000271 | Bracket |
| 420 | 293650100 | Oetiker Clamp |
| 430 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 440 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 470 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 480 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 490 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 500 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 510 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 515 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 520 | 519000245 | Bracket |
| 550 | 293750002 | Tie Wrap 142 mm |
| 600 | 516005528 | NOTICE DECAL, OIL - Call your local BRP dealership |
