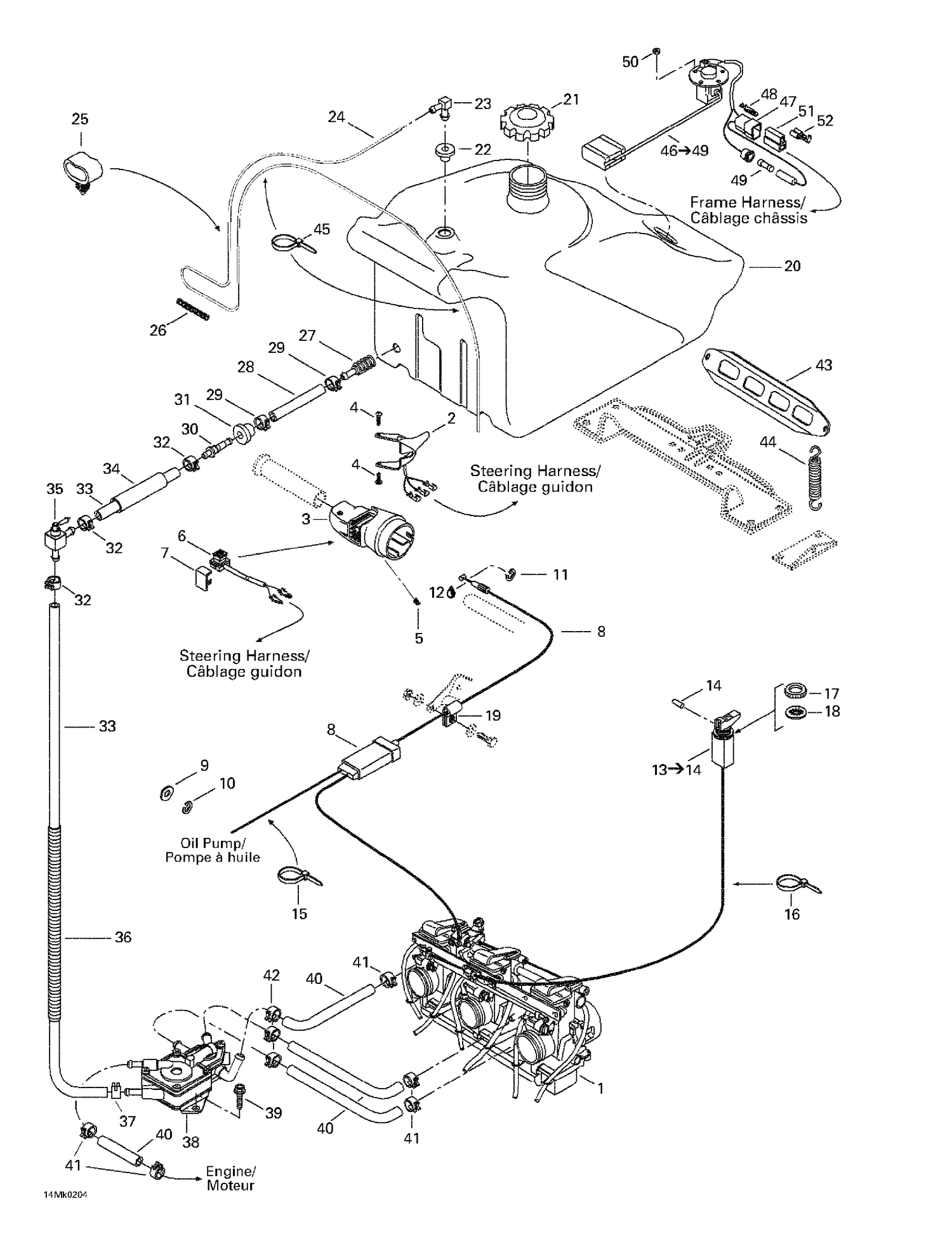

02- Fuel System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 403138633 | Carburetor Kit TM38-C317 |
| 3 | 572098800 | Throttle Handle Housing |
| 4 | 732601143 | Flange Screw |
| 5 | 414440800 | Socket Set Screw M8 X 10 |
| 7 | 572100901 | Switch Cover |
| 9 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 10 | 414753500 | Circlip |
| 11 | 414274500 | Circlip |
| 12 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 14 | 372118400 | Spring Pin |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 414115200 | Tie-Rap 180 mm |
| 17 | 512059364 | NUT-PLASTIC - Call your local BRP dealership |
| 18 | 394103300 | Lock Washer, Interior Teeth |
| 19 | 414176000 | Open Clamp |
| 20 | 513032926 | Fuel Tank |
| 21 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 22 | 513032908 | Grommet |
| 23 | 414814100 | Male Connector |
| 24 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 25 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 26 | 513032961 | Spring |
| 27 | 414872100 | Fuel Filter Strainer |
| 28 | 415097800 | POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 29 | 513033010 | Norma Spring Clamp |
| 30 | 414872700 | Male Connector |
| 31 | 707800347 | Grommet This part replaces 570273900. |
| 32 | 414655700 | Spring Clamp |
| 33 | 709000022 | HOSE 9.5 MM, METER - Call your local BRP dealership |
| 34 | 513033032 | Hose (Rubber) |
| 35 | 415112200 | Shut-Off Valve |
| 36 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 37 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 38 | 513032929 | FUEL PUMP - Call your local BRP dealership |
| 39 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 40 | 219704549 | Hose This part replaces 219704439. |
| 41 | 414415200 | Spring Clamp |
| 42 | 513033014 | Spring Clamp |
| 43 | 517249200 | Fuel Tank Bracket |
| 44 | 415107100 | Spring |
| 45 | 414115200 | Tie-Rap 180 mm |
| 47 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 48 | Not | Available As Spare Part - Male Terminal |
| 49 | 410112400 | Fuse, 0.25 Ampere |
| 50 | 232551414 | Elastic Stop Nut M5 |
| 51 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
