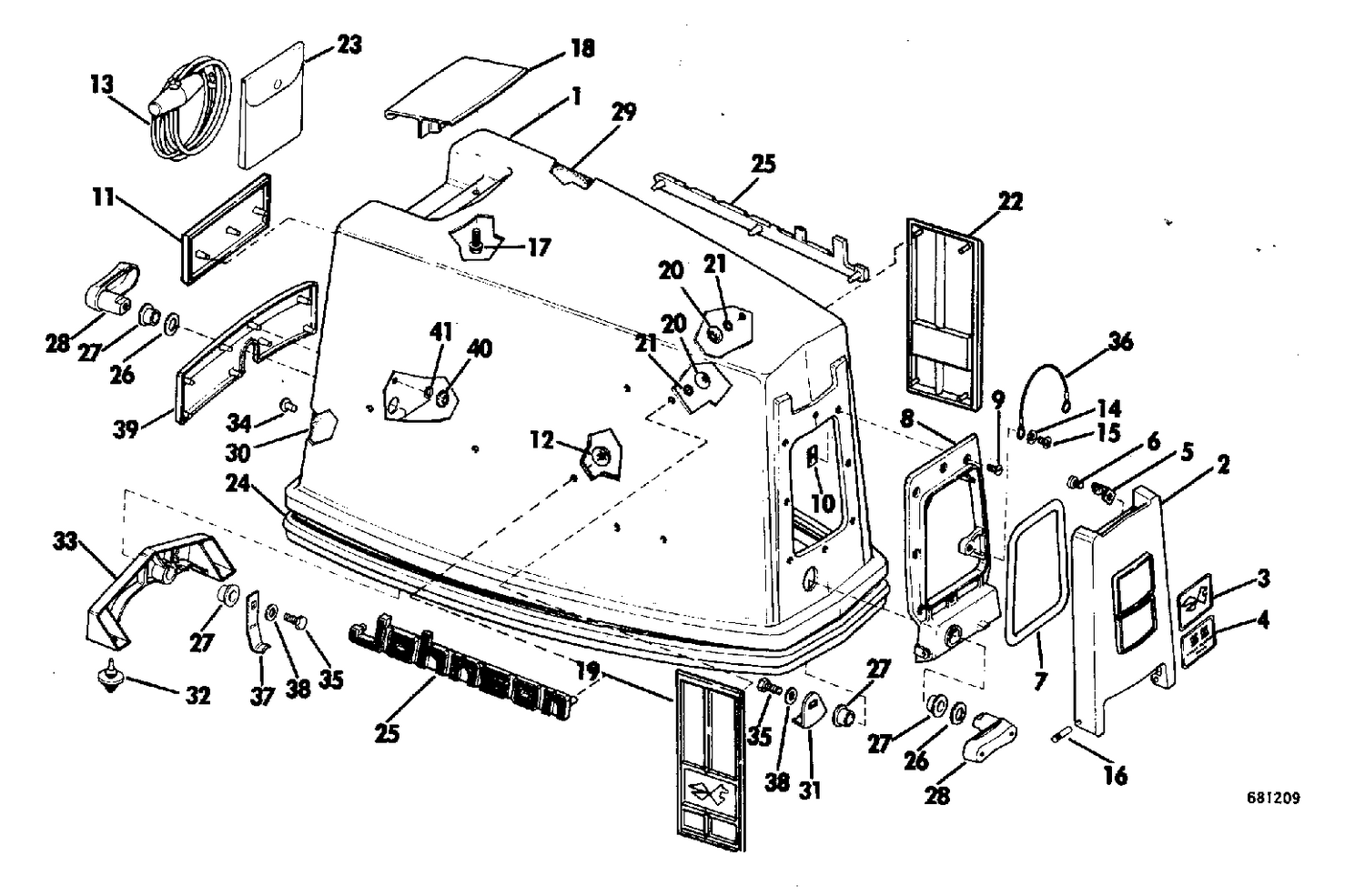

| Ref | Part Number | Description |
|---|
| 1 |
0383297 |
MOTOR COVER ASSEMBLY |
| 2 |
0383802 |
FRONT DOOR ASSEMBLY |
| 3 |
0314768 |
PLATE, Sea horse |
| 4 |
0314703 |
PLATE, Front door |
| 5 |
0377318 |
ROLLER LATCH ASSY |
| 7 |
0314124 |
SEAL, Front door |
| 8 |
0383344 |
DOOR FRAME ASSEMBLY |
| 11 |
0314797 |
APPLIQUE, Rear |
| 13 |
0378347 |
CORDE DE LANCEUR |
| 14 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 15 |
0307426 |
SCREW |
| 16 |
0314520 |
HINGE PIN |
| 17 |
0312299 |
VIS, serre-câble |
| 18 |
0313696 |
TILT HANDLE |
| 19 |
0314798 |
APPLIQUE, Port |
| 21 |
0314303 |
O RING |
| 22 |
0314799 |
APPLIQUE, Starboard |
| 23 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 24 |
0314128 |
SEAL, Upper to lower motor cover |
| 25 |
0314771 |
APPLIQUE, "johnson" |
| 28 |
0382645 |
HANDLE & SHAFT ASSY., Front and rear latch |
| 29 |
0314293 |
SOUND BLANKET, Top |
| 30 |
0314294 |
SOUND BLANKET, Bottom |
| 31 |
0313637 |
LATCH, Handle |
| 33 |
0314037 |
LOCATING BRACKET, Motor cover rear |
| 34 |
0314135 |
RIVER, Locating bracket |
| 35 |
0552062 |
SCREW, Clamp |
| 36 |
0379123 |
STRAP |
| 39 |
0383346 |
APPLIQUE & PLATE ASSY |
| 41 |
0314303 |
O RING |
| 0383824 |
0383824 |
DECAL SET |
