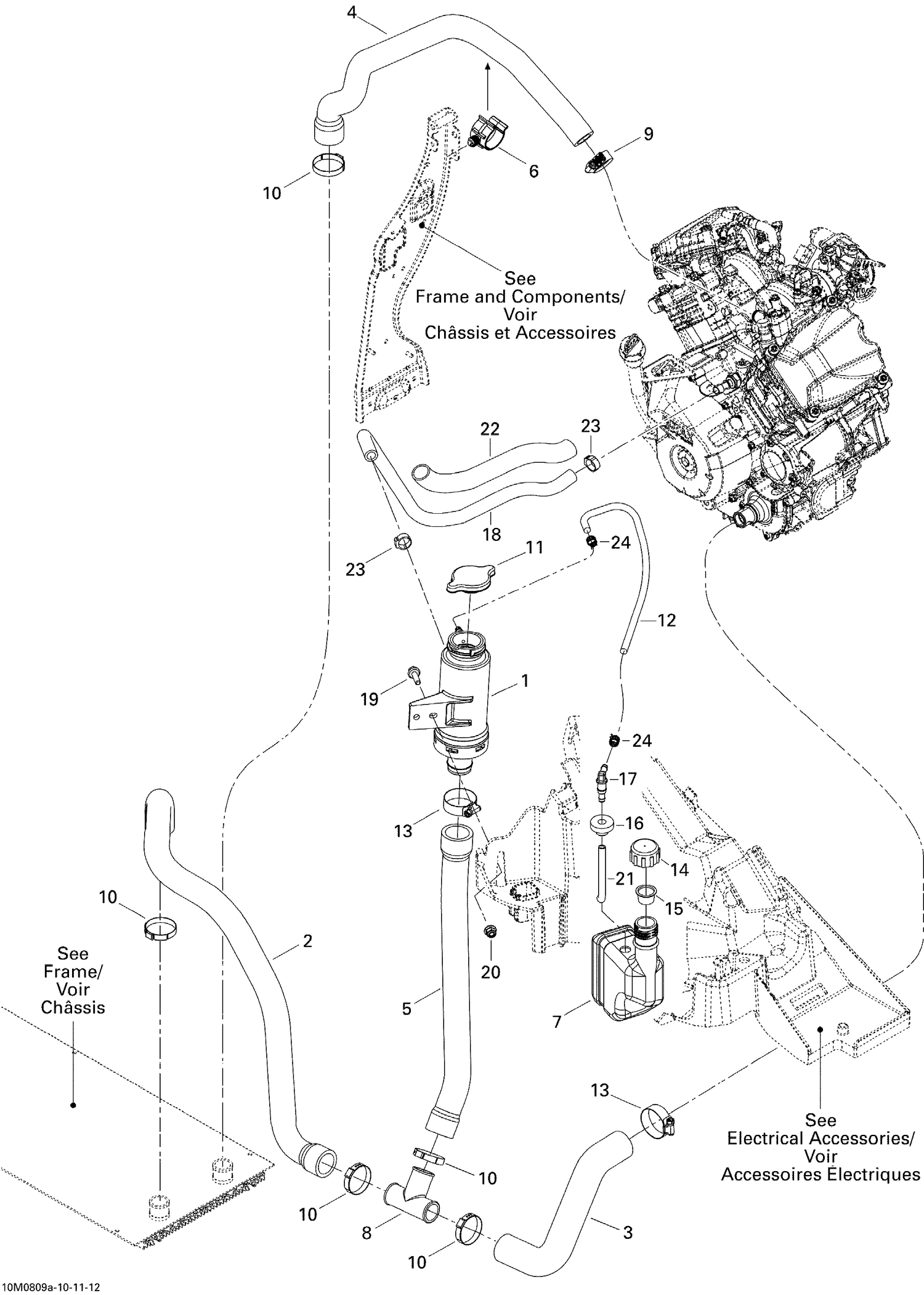

| Ref | Part Number | Description |
|---|
| 1 |
509000176 |
FILLER NECK ASS'Y - Call your local BRP dealership |
| 2 |
509000364 |
T-FITTING HOSE - Call your local BRP dealership |
| 3 |
509000365 |
PUMP INLET HOSE - Call your local BRP dealership |
| 4 |
509000366 |
REAR RADIATOR HOSE - Call your local BRP dealership |
| 5 |
509000367 |
COOLANT TANK HOSE - Call your local BRP dealership |
| 6 |
275500526 |
Retainer |
| 7 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 8 |
509000219 |
T-Fitting |
| 9 |
293650019 |
Tridon Gear Clamp |
| 10 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 11 |
509000187 |
Pressure Cap |
| 12 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 13 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 15 |
709200205 |
PROTECTION CAP - Call your local BRP dealership |
| 16 |
709200285 |
Grommet This part replaces 570135100. |
| 17 |
414580600 |
Elbow Male Connector |
| 18 |
219704420 |
Was 509000407 Hose 8 mm |
| 19 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 22 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 23 |
293650140 |
Oetiker Clamp |
