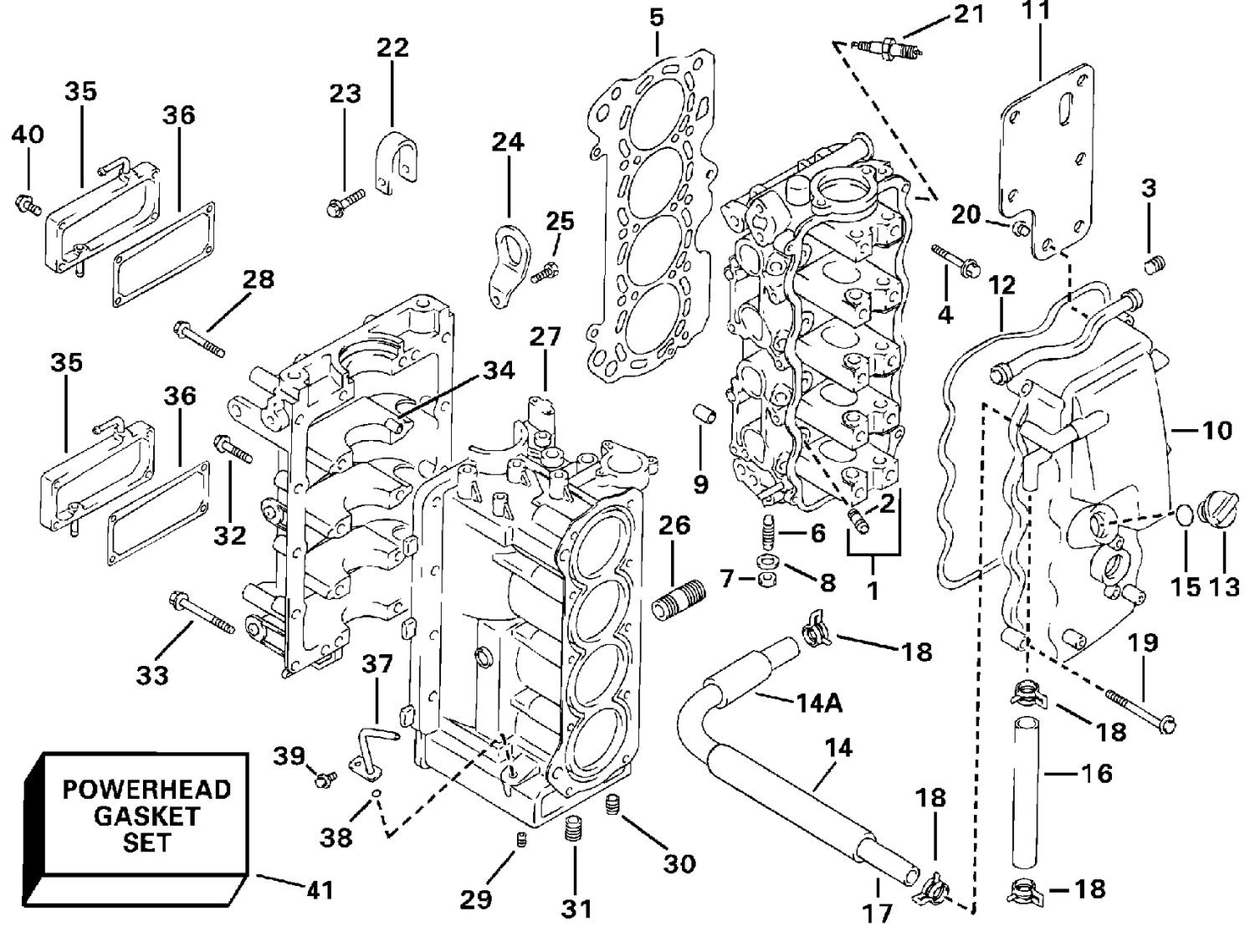

CYLINDER & CRANKCASE
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030604 | CYLINDER HEAD |
| 4 | 5030609 | BOLT, Cylinder head |
| 6 | 5030389 | STUD, Bolt |
| 7 | 5030052 | NUT |
| 9 | 5031014 | PIN |
| 10 | 5030612 | COVER, Cylinder head |
| 11 | 5030614 | BREATHER PLATE |
| 13 | 5030633 | CAP, OIL FILLER |
| 14 | 5030756 | SLEEVE, Breather hose |
| 14A | 5032211 | SLEEVE, Breather hose |
| 15 | 5030541 | O RING |
| 18 | 5030580 | CLAMP |
| 20 | 5030004 | BOLT, Brace |
| 21 | 5030600 | PLUG, SPARK (BPR6ES) |
| 22 | 5030625 | LIFT BRACKET, Port |
| 24 | 5030626 | HOOK, Engine - Stbd This part replaces 5030627. |
| 26 | 5030620 | ADAPTER, Oil filter |
| 27 | 5032443 | BLOCK, Cylinder This part replaces 5031160. |
| 35 | 5030630 | COVER, Water jacket |
| 37 | 5030721 | GUIDE, Oil level gauge |
