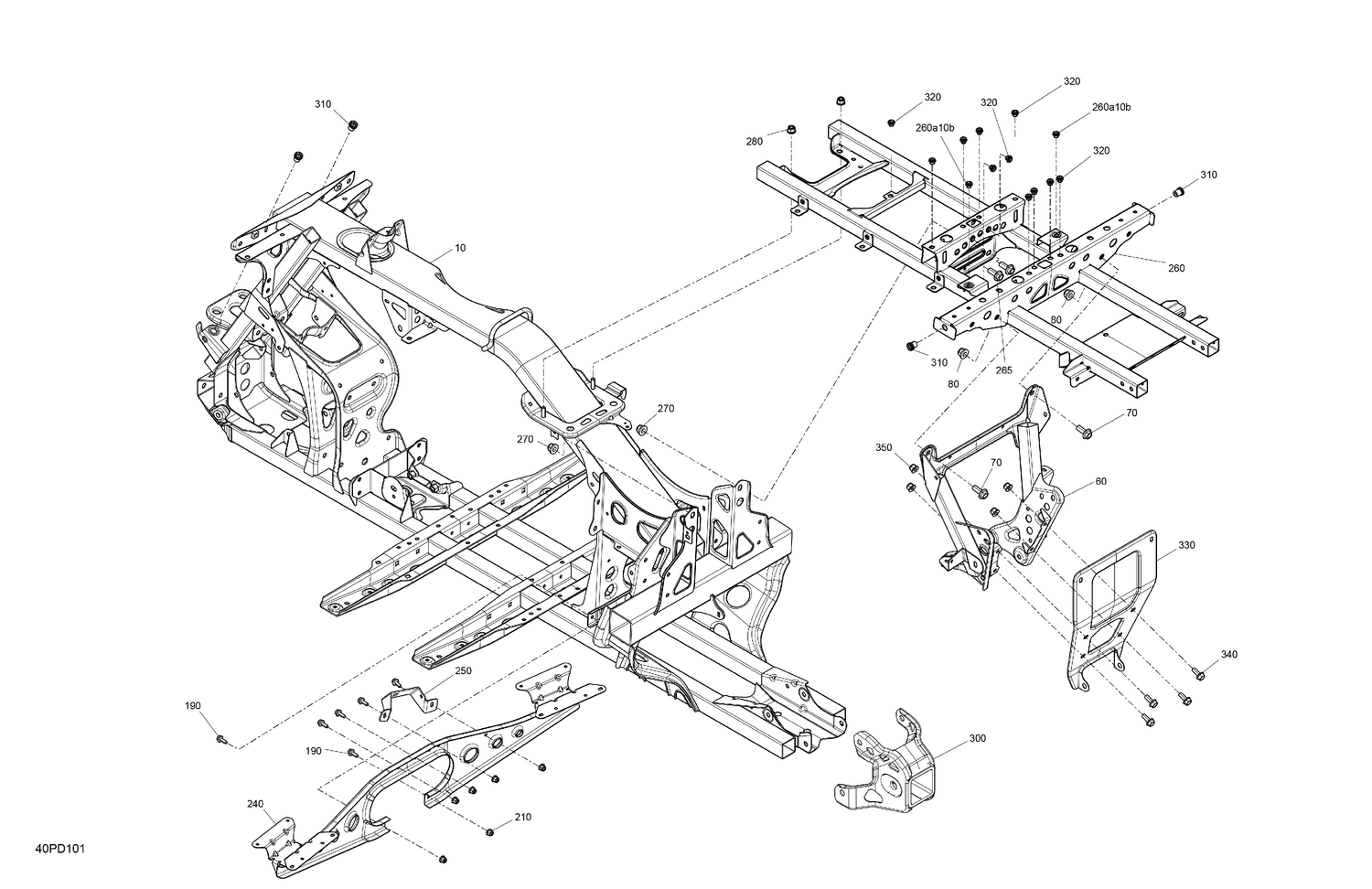

06- Frame - System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705210816 | Chassis |
| 70 | 207602546 | Hex. Flange Screw M10 X 25 |
| 80 | 233201436 | Hex. Flange Elastic Nut M10 |
| 190 | 207661644 | Hex. Flange Screw M6 X 16 |
| 210 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 250 | 705211539 | Master Cylinder Support |
| 260a10b | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 265 | 207602546 | Hex. Flange Screw M10 X 25 |
| 270 | 233201436 | Hex. Flange Elastic Nut M10 |
| 280 | 233281414 | Hex. Flange Elastic Nut M8 |
| 300 | 715005186 | Trailer Hitch |
| 310 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 320 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 330 | 705203541 | Rear Support |
| 340 | 207682046 | Hex. Flange Screw M8 X 20 |
