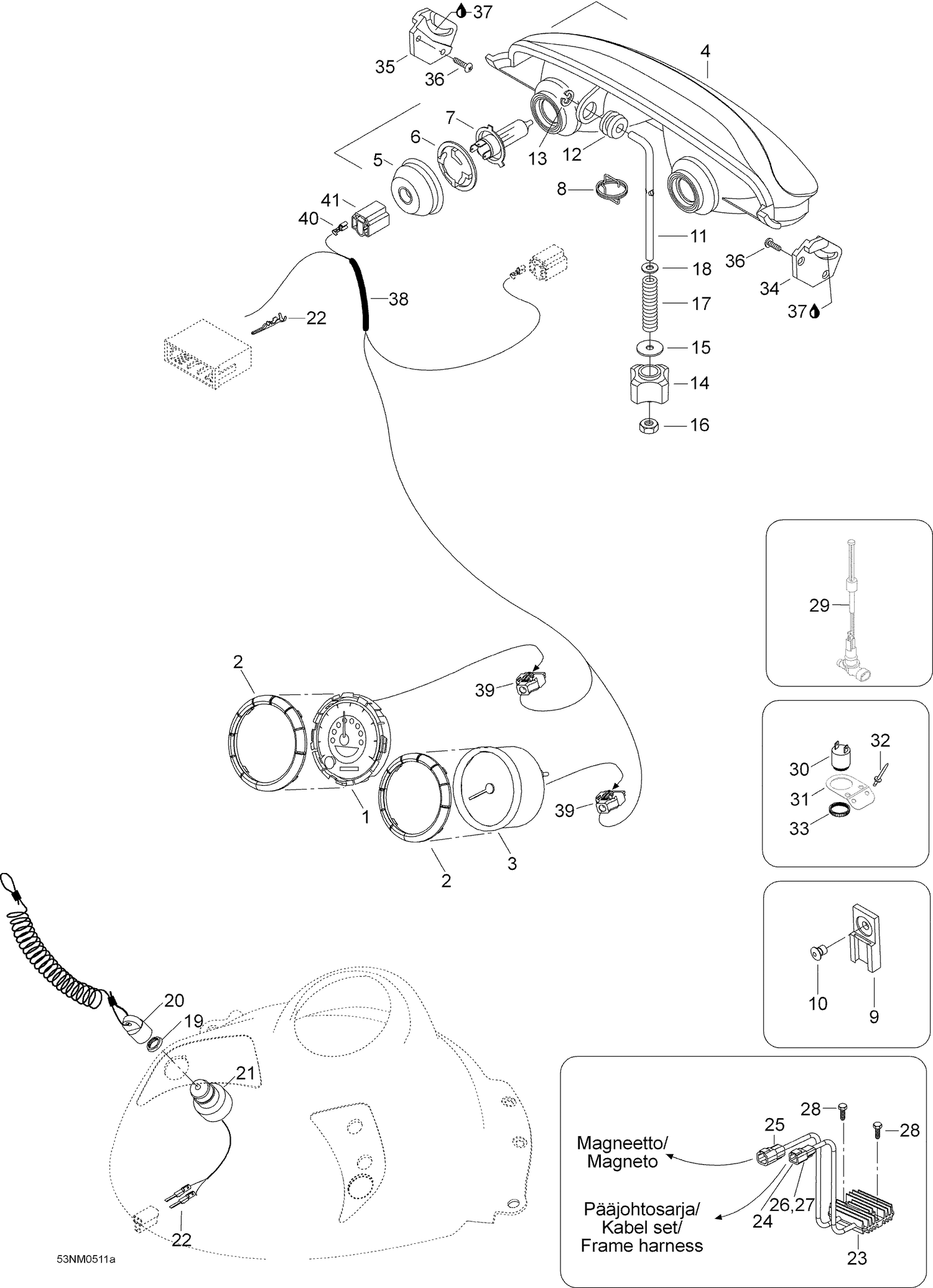

| Ref | Part Number | Description |
|---|
| 1 |
515176263 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176275 |
Tachometer |
| 5 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 6 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 8 |
5447238 |
Spring |
| 9 |
270000141 |
Clip |
| 10 |
36005 |
Rivet |
| 11 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 12 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
732610072 |
Push Nut |
| 14 |
515175548 |
Handle - Call your local BRP dealership |
| 15 |
20038 |
Washer |
| 16 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 17 |
415100600 |
SPRING - Call your local BRP dealership |
| 18 |
20003 |
Washer A6,4 |
| 19 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 20 |
515178284 |
Dess. This part replaces 515166900. |
| 21 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 22 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 24 |
278001674 |
Male terminal housing (2 circuits) |
| 25 |
Not |
Available As Spare Part - Male terminal housing (4 circuits) |
| 26 |
515175568 |
Male terminal |
| 27 |
278001671 |
Female lock |
| 28 |
40377 |
Self tapping screw M6 x 20 |
| 29 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership This part replaces 515176016. |
| 30 |
515176035 |
HORN - Call your local BRP dealership |
| 31 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 32 |
36005 |
Rivet |
| 33 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 34 |
517289300 |
R.H. Headlamp Support |
| 35 |
517289400 |
L.H. Headlamp Support |
| 36 |
40177 |
Screw B4,8 x 16 |
| 37 |
413707500 |
Grease, 400g |
| 38 |
605348931 |
Wiring harness, headlamp |
| 39 |
515175801 |
Female terminal housing (24 circuits) |
| 40 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
