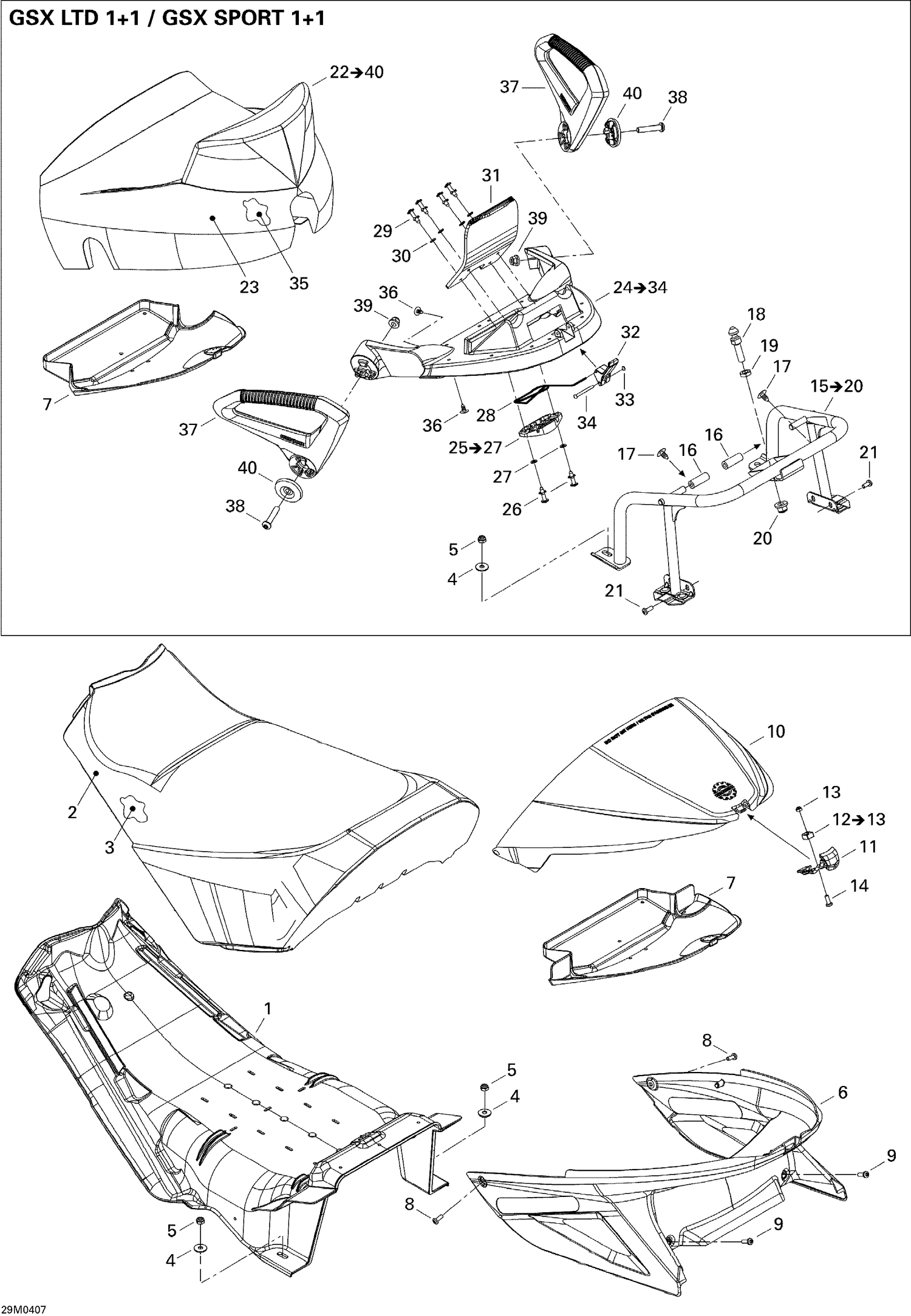

09- Seat
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004308 | Seat Base |
| 3 | 510004275 | SEAT FOAM - Call your local BRP dealership |
| 4 | 234082410 | Flat Washer 8 mm |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 9 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 11 | 510003917 | Bracket |
| 13 | 232061600 | Hex. Nut M6 |
| 14 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 16 | 219704549 | Hose This part replaces 219704439. |
| 17 | 414644300 | Black, Dart |
| 18 | 291001929 | Seat Stud |
| 19 | 232100600 | Hex. Jam Nut M10 |
| 20 | 233201414 | Hex. Flange Elastic Nut M10 |
| 26 | 293150074 | RIVET 1/4 X 5/8 - Call your local BRP dealership |
| 27 | 234061600 | Stainless Flat Washer M6 |
| 28 | 510004075 | Spring |
| 29 | 293150074 | RIVET 1/4 X 5/8 - Call your local BRP dealership |
| 30 | 234061600 | Stainless Flat Washer M6 |
| 31 | Not | Available As Spare Part - Backrest Reinforcement |
| 32 | Not | Available As Spare Part - Latch |
| 33 | 389804300 | Push Nut |
| 34 | 293150062 | SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership |
| 35 | 510004295 | Foam |
| 36 | 414644300 | Black, Dart |
| 37 | 510004074 | Passenger Handle |
| 38 | 205405086 | Socket Head Screw M10 X 50 |
| 39 | 233201414 | Hex. Flange Elastic Nut M10 |
