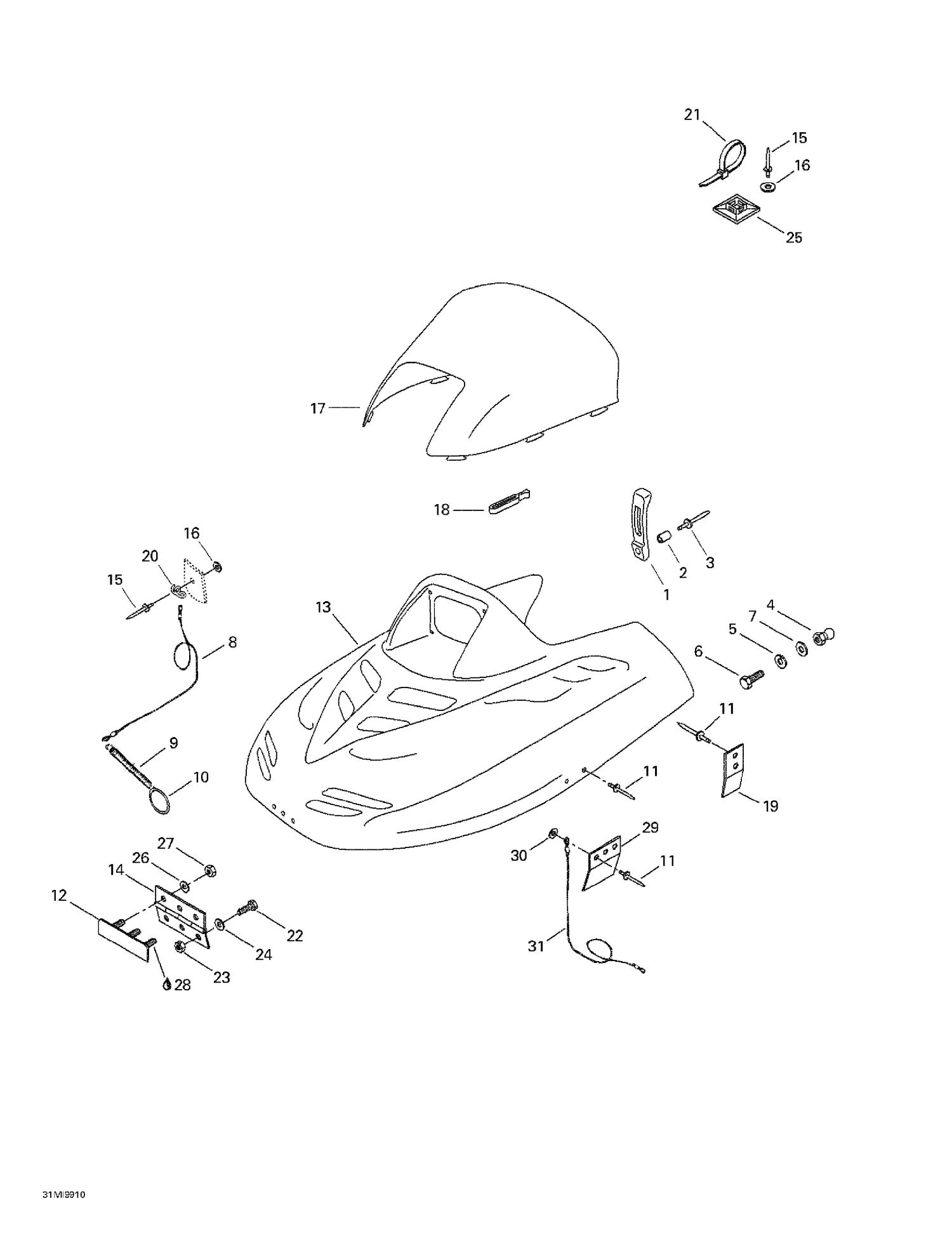

09- Cab
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570025900 | BLACK LATCH - Call your local BRP dealership |
| 2 | 293900112 | Bushing This part replaces 517245900. |
| 3 | 390906800 | Pop Rivet 3/16" |
| 4 | 517245800 | Knob |
| 5 | 234151401 | Lock Washer 5 mm This part replaces 224751090. |
| 6 | 207151444 | Hex. Screw M5 X 14 This part replaces 222051465. |
| 7 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 8 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 9 | 414763300 | Spring |
| 10 | 415058300 | RING - Call your local BRP dealership |
| 11 | 390407200 | Pop Rivet 3/16” |
| 12 | 517301500 | Hinge Bracket |
| 13 | 571009600 | Hood |
| 14 | 517302046 | Hinge |
| 15 | 390906800 | Pop Rivet 3/16" This part replaces 390910200. |
| 16 | 517124300 | Washer |
| 17 | 415092500 | Windshield |
| 18 | 570023800 | Windshield Latch |
| 19 | 517298000 | Hood Guide |
| 20 | 517262800 | Bracket |
| 21 | 293750002 | Tie Wrap 142 mm |
| 22 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 23 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 24 | 224061201 | Flat Washer |
| 25 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 26 | 224061121 | Flat Washer |
| 27 | 232061414 | Hex. Nut M6 This part replaces 228061045. |
| 28 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 29 | 517302040 | RH Guide |
| 30 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 517302041 | Guide | GA 517302041 |
| 517302041 | LH | Guide 517302041 |
