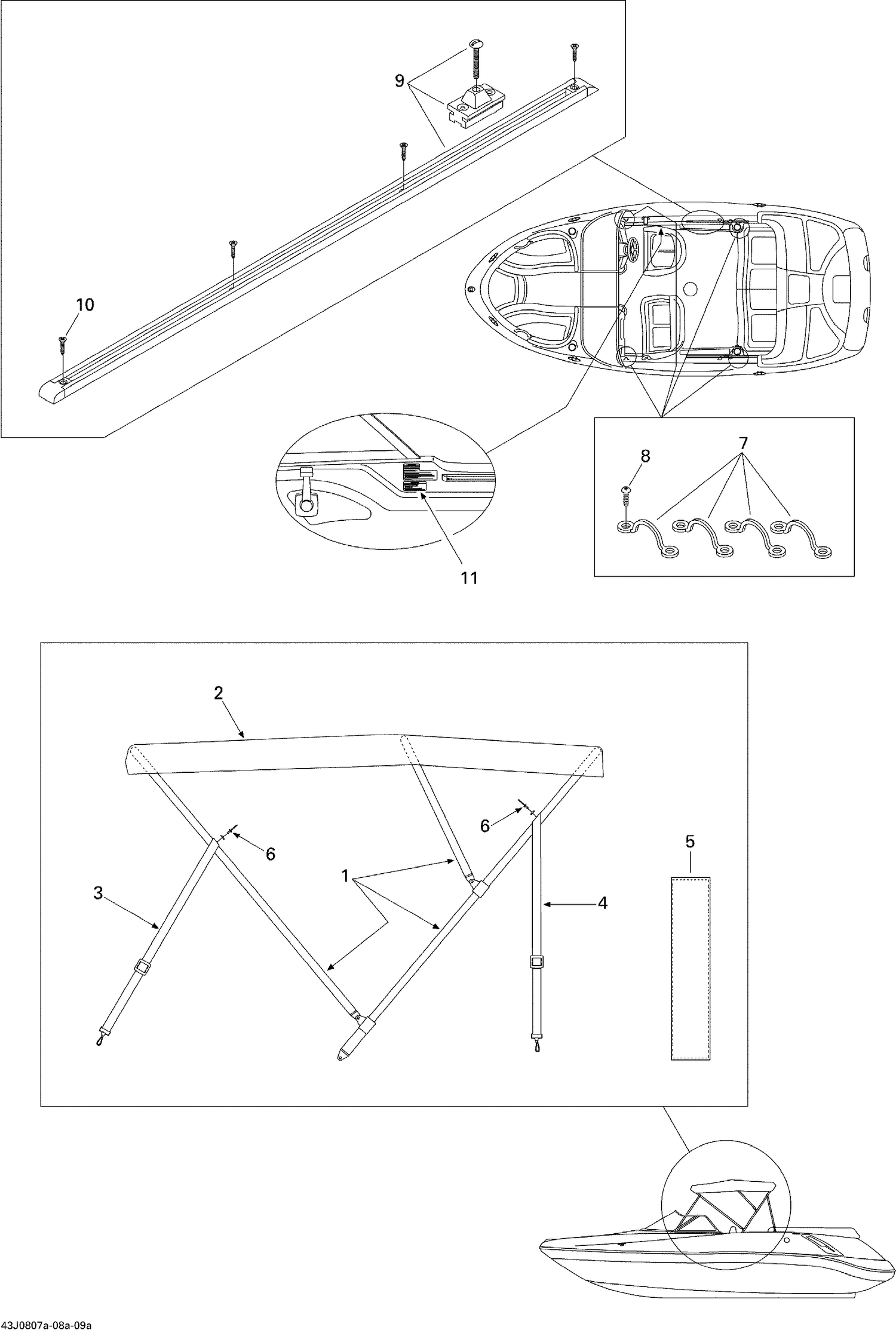

09- Bimini Top
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204950059 | Frame Ass'y |
| 2 | 204950062 | Bimini Top Canvas |
| 3 | 204950063 | Front Strap |
| 4 | 204950064 | Rear Strap |
| 5 | 204950066 | Bimini Top Boot |
| 6 | 293150039 | Pop Rivet 3/16" |
| 7 | 204071845 | STRAP EYE - Call your local BRP dealership |
| 8 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 9 | 204072333 | Slide Rail |
| 10 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
