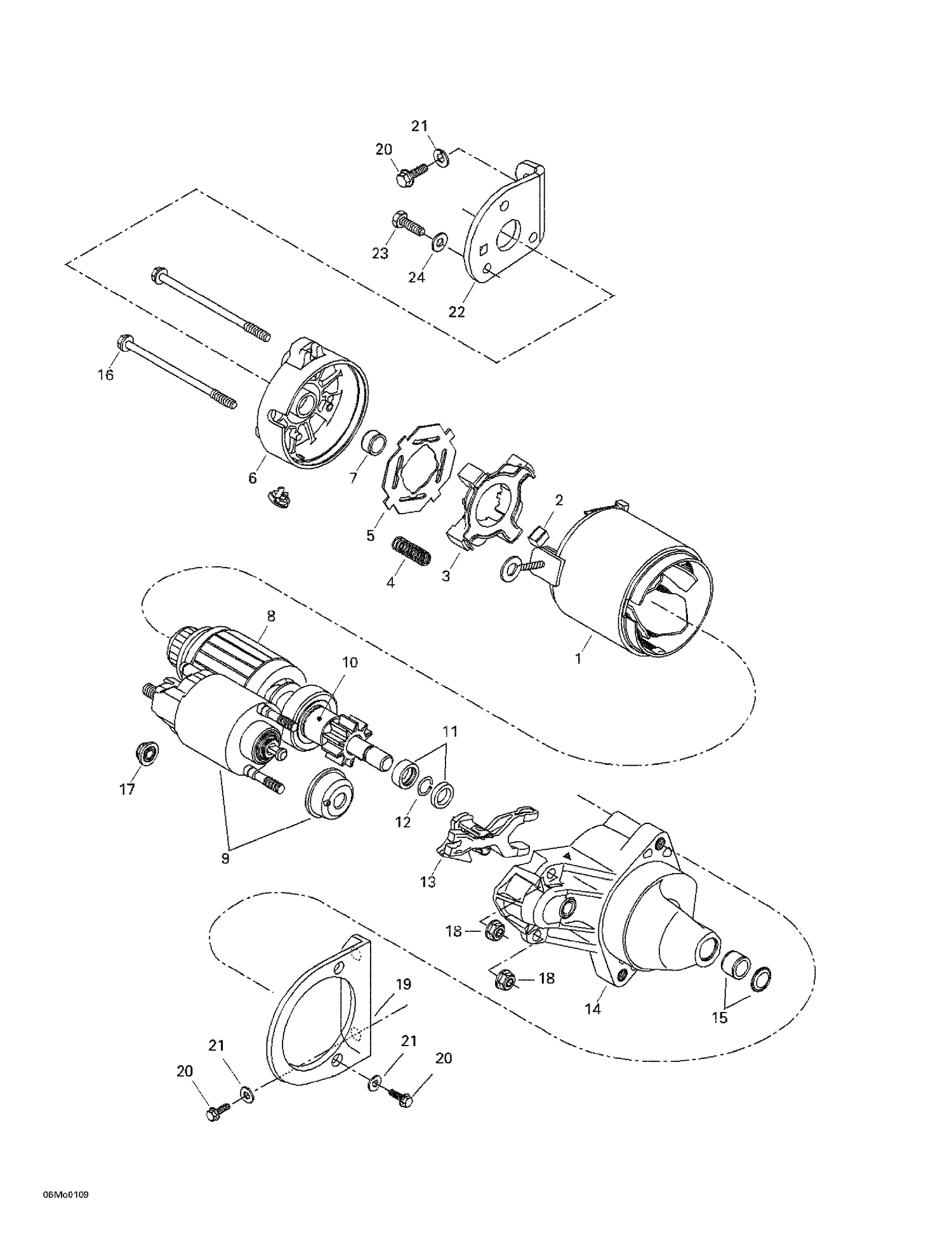

| Ref | Part Number | Description |
|---|
| 1 |
410213106 |
Starter Housing |
| 2 |
410213107 |
BRUSH KIT - Call your local BRP dealership |
| 3 |
410209700 |
BRUSH HOLDER - Call your local BRP dealership |
| 4 |
410209800 |
BRUSH SPRING - Call your local BRP dealership |
| 5 |
410209900 |
INSULATOR - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Housing |
| 7 |
410210100 |
BRASS BUSHING - Call your local BRP dealership |
| 8 |
410210200 |
Armature Assy. |
| 9 |
410210300 |
SWITCH ASSY. - Call your local BRP dealership |
| 10 |
410210400 |
STARTER CLUTCH - Call your local BRP dealership |
| 11 |
410212500 |
NUT - Call your local BRP dealership |
| 12 |
410212600 |
CIRCLIP - Call your local BRP dealership |
| 13 |
410213109 |
Lever |
| 14 |
410213113 |
Housing |
| 15 |
410210900 |
BRASS BUSHING - Call your local BRP dealership |
| 16 |
410213112 |
Bolt |
| 17 |
410211100 |
NUT - Call your local BRP dealership |
| 18 |
410211200 |
NUT - Call your local BRP dealership |
| 19 |
515175142 |
Starter Bracket (PTO) |
| 20 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 21 |
250200008 |
Flat Washer With Teflon 8 mm |
| 22 |
515175441 |
Starter Bracket (MAG) |
| 23 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
