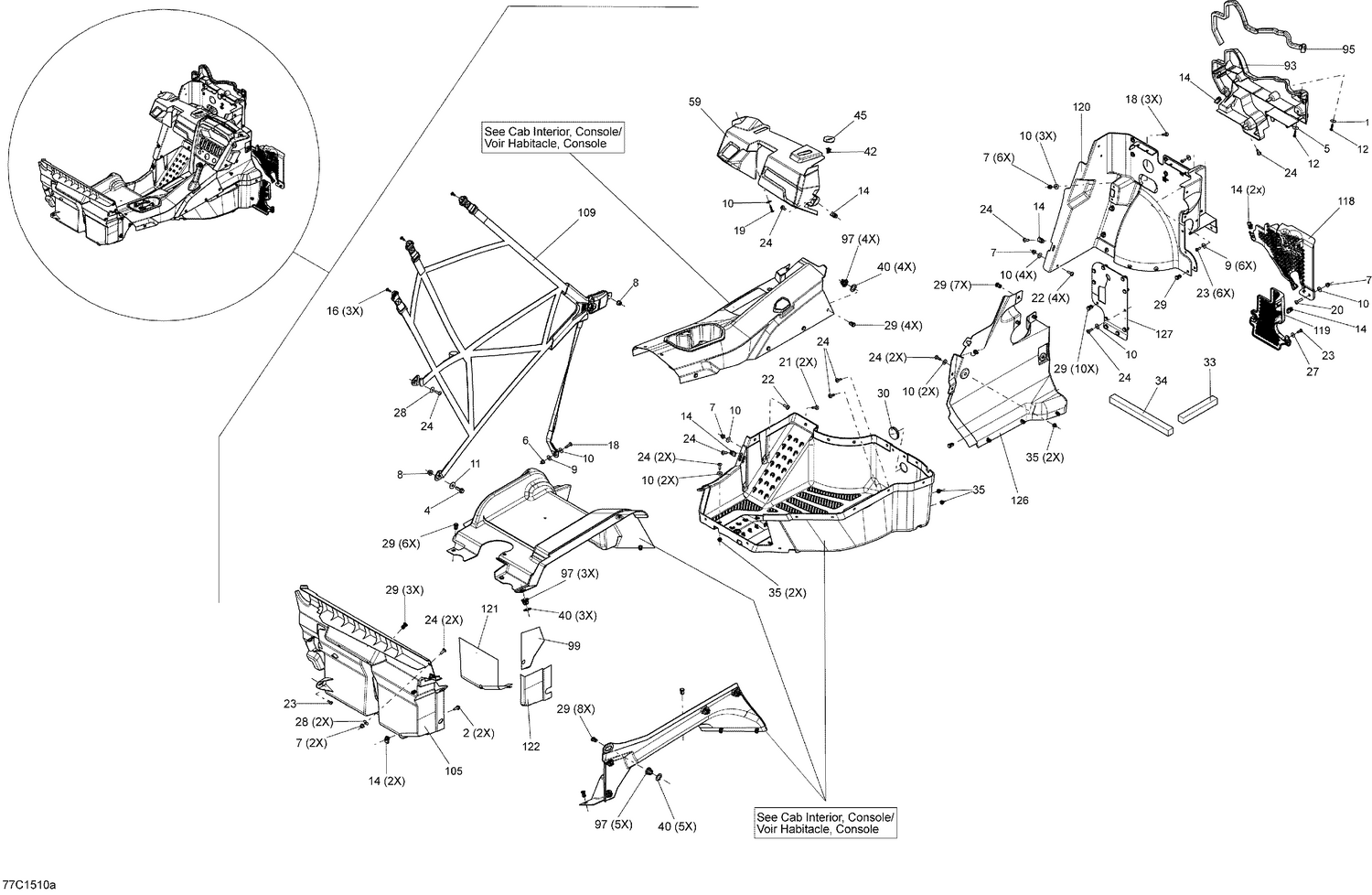

09- Cab Interior _Driver Side_77C1510a
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 224061201 | Flat Washer |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 4 | 207682534 | Hex. Flange Screw M8 X 25 |
| 5 | 224060201 | Flat Washer |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261494 | Hex. Flange Elastic Nut M6 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 234062410 | Flat Washer 6 mm |
| 10 | 234062670 | Stainless Steel Flat Washer |
| 11 | 234082410 | Flat Washer 8 mm |
| 12 | 241152060 | Hex. Flange Screw K50 X 20 |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 18 | 250000284 | Torx Screw M6 x 25 |
| 19 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 20 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 21 | 250000807 | Torx Truss Screw M6 X 25 This part replaces 250000630. |
| 22 | 250000712 | Torx Screw M6 X 20 |
| 23 | 250000720 | Torx Screw K50 X 16 |
| 24 | 250000722 | Torx Screw M6 X 20 |
| 27 | 250200025 | Washer M5 |
| 28 | 250200040 | Flat Washer |
| 29 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 293250242 | Rubber Cover |
| 33 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 34 | 293250319 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 35 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 40 | 503189273 | Washer |
| 41 | 506151252 | Washer |
| 42 | 517302785 | Edge Clip |
| 45 | 705003841 | Support Plate |
| 54 | 707900002 | RH Side Console |
| 59 | 715001250 | Dashboard Ass'y |
| 62 | 707900021 | RH Fixe Side Console |
| 75 | 707900622 | RH Lateral Console Foam This part replaces 707900045. |
| 83 | 707900623 | RH Lateral Console Foam This part replaces 707900055. |
| 84 | 707900624 | RH Lateral Console Foam This part replaces 707900056. |
| 93 | 707900561 | Floor Support LH This part replaces 707900113. |
| 95 | 219704365 | Was 293200017 Neoprene Seal |
| 97 | 707900133 | Insert |
| 99 | 707900146 | Heat Sheet |
| 100 | 707900147 | Heat Sheet |
| 101 | 707900148 | Heat Sheet |
| 105 | 707900164 | LH Rear Deflector |
| 107 | 707900167 | Heat Shield |
| 109 | 707900237 | Front LH Safety Net This part replaces 707900171. |
| 118 | 707900178 | Grille |
| 119 | 707900180 | Grille |
| 120 | 707900181 | LH Front Floor |
| 121 | 707900182 | Heat Shield |
| 122 | 707900183 | Heat Shield |
| 123 | 707900184 | Heat Shield |
| 124 | 707900190 | Heat Sheet |
| 126 | 707900193 | Front Side Dash Panel |
