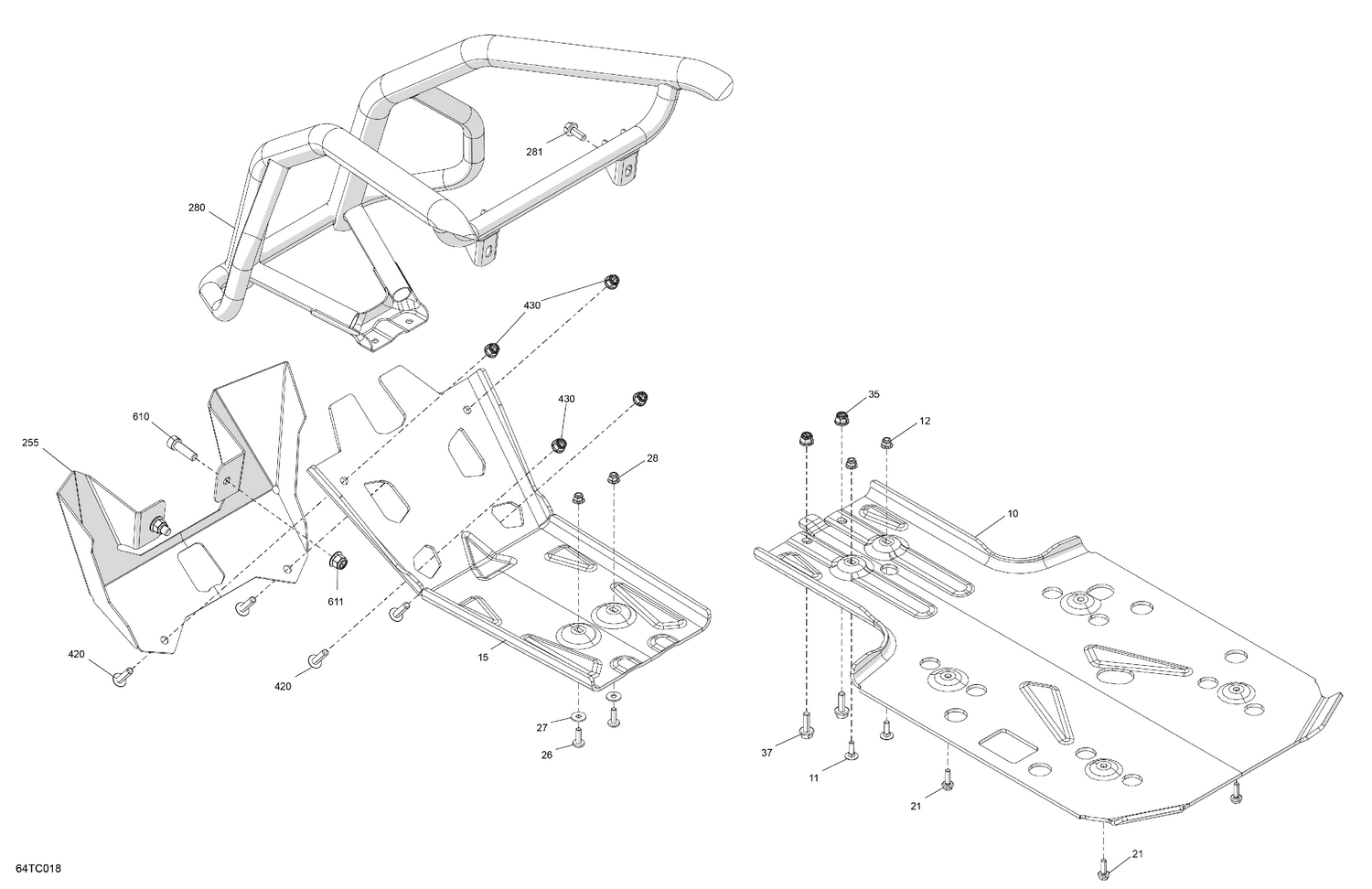

07- Body - Skid Plate and Bumper
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705204031 | Central Skid Plate |
| 11 | 207762044 | Carriage Bolt M6 X 20 |
| 12 | 233261434 | Flange Elastic Nut M6 |
| 15 | 705205019 | Front Skid Plate |
| 21 | 207662054 | Hex. Flange Screw M6 X 20 |
| 26 | 250000712 | Torx Screw M6 X 20 |
| 27 | 234062670 | Stainless Steel Flat Washer |
| 28 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 207682544 | Hex. Flange Screw M8 X 25 |
| 255 | 705009707 | Front Facia |
| 281 | 207682044 | Hex. Flange Screw M8 X 20 |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 233281434 | Hex. Flange Elastic Nut M8 |
| 610 | 205003044 | Socket Screw M10 x 30 |
