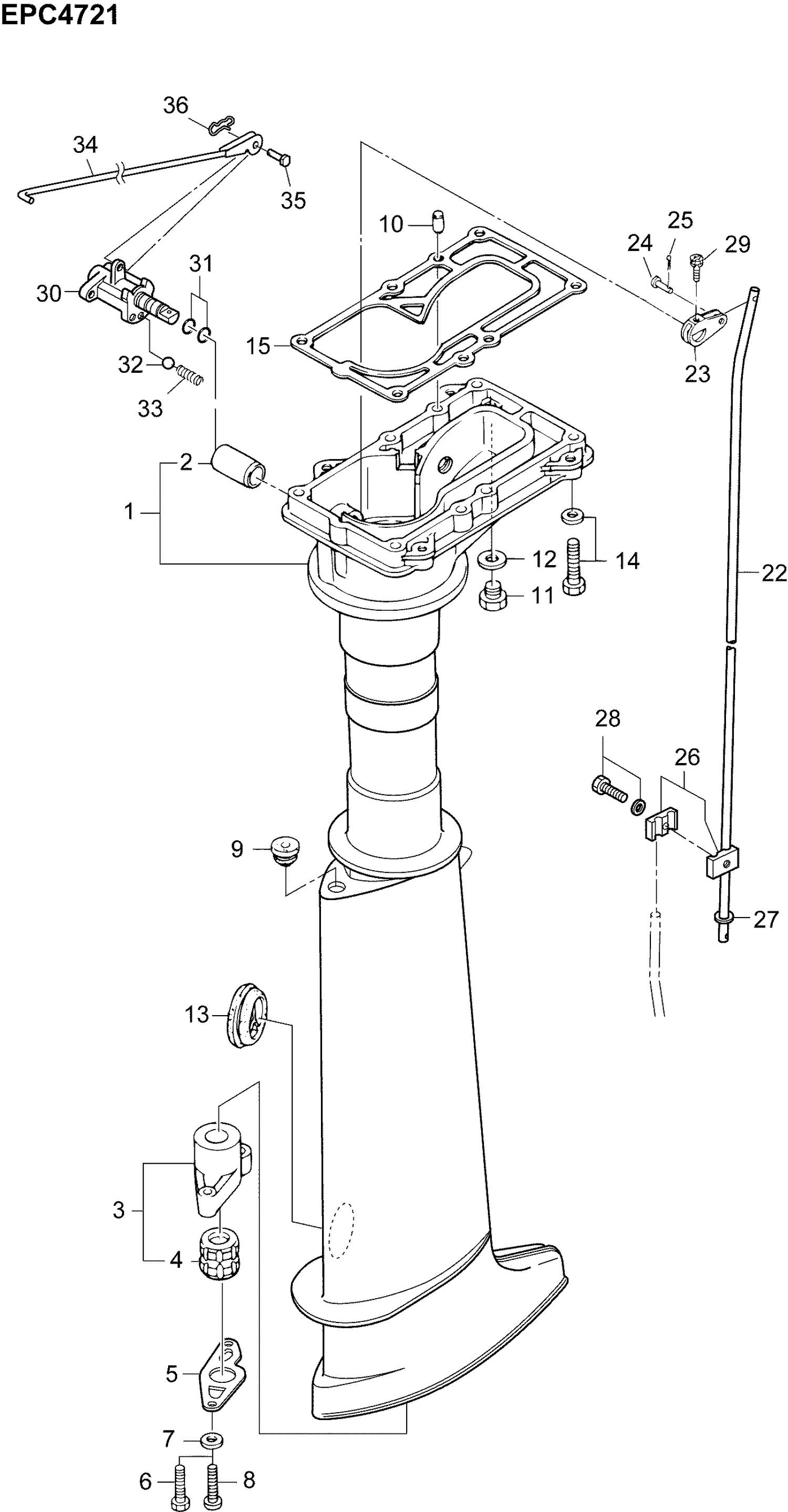

16-0_DRIVESHAFT HOUSING
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 5040173 | Stopper Drive Shaft |
| 7 | 5041667 | Washer |
| 9 | 5040198 | Grommet Cam Rod |
| 11 | 5041578 | Bolt |
| 12 | 5040030 | Gasket 8.1-15-1 |
| 13 | 5040148 | Grommet 29.3 |
| 14 | 5041562 | Bolt |
| 15 | 5041016 | Drive Shaft Housing Gasket |
| 23 | 5040203 | Shift Rod Lever |
| 24 | 5040202 | Pin Shift Lever |
| 25 | 5041698 | Split Pin |
| 26 | 5040204 | Shift Rod Joint Ass’y |
| 29 | 5041579 | Bolt |
| 30 | 5040878 | Shift Lever Shaft Assembly |
| 31 | 5040010 | O-Ring 1.9-8.8 |
| 32 | 5040877 | Ceramic Ball 7.7 |
| 33 | 5040876 | Spring Shift Lever Stopper |
| 34 | 5040879 | Shift Lever Rod |
| 35 | 5040881 | Pin, Shift Rod Lever |
