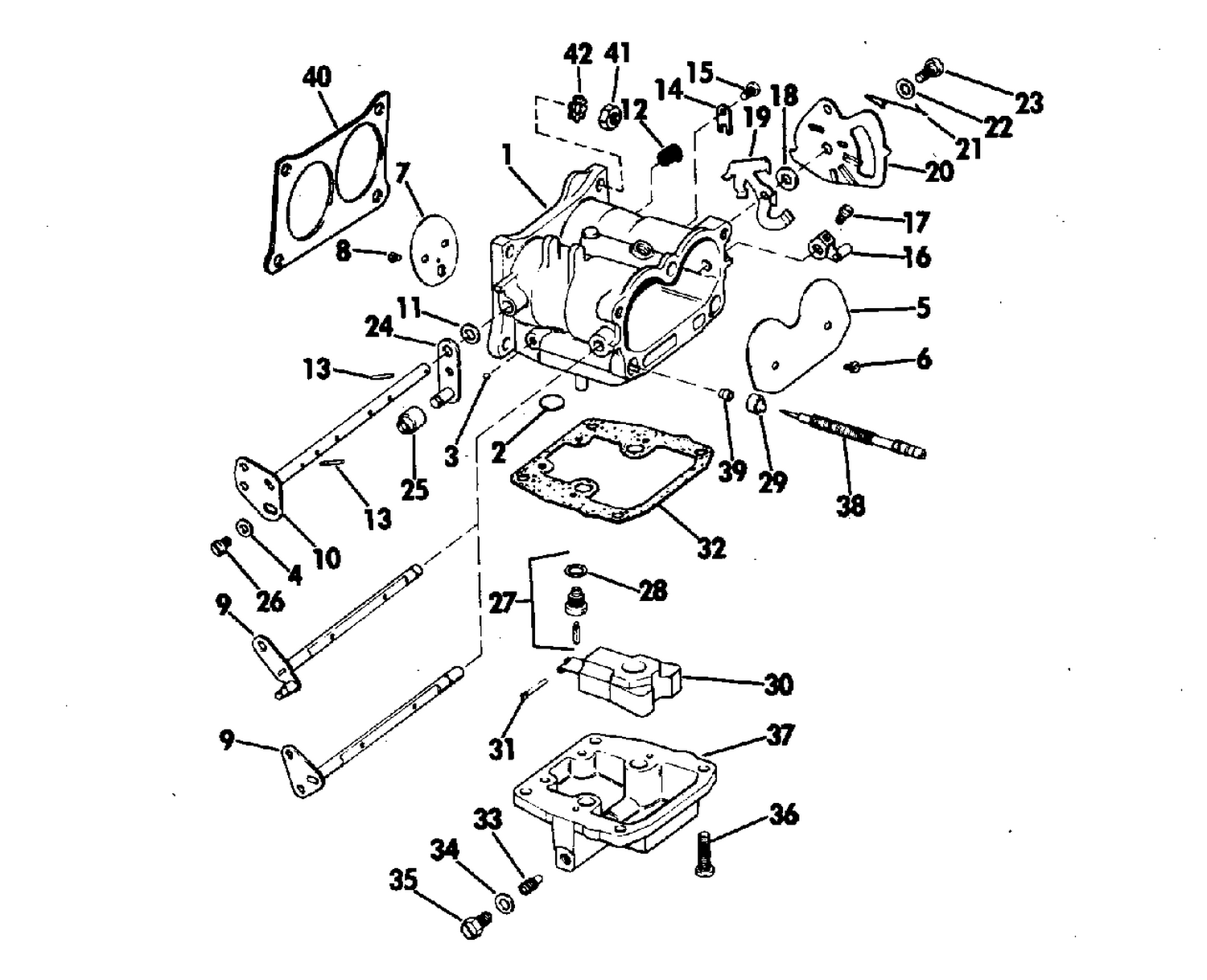

| Ref | Part Number | Description |
|---|
| 1 |
0384948 |
BODY ASSY., Lower |
| 1 |
0384949 |
BODY ASSY., Upper |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 29 |
0315253 |
RETAINER, Needle port |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0317330 |
ORIFICE PLUG |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0384913 |
FLOAT CHAMBER ASSY |
| 38 |
0314892 |
NEEDLE VALVE, Slow speed |
| 39 |
0314166 |
BEARING, Needle valve |
| 40 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 41 |
0306397 |
NUT |
| 0384569 |
0384569 |
CARB ASSY., Upper |
| 0384570 |
0384570 |
CARB ASSY., Lower |
