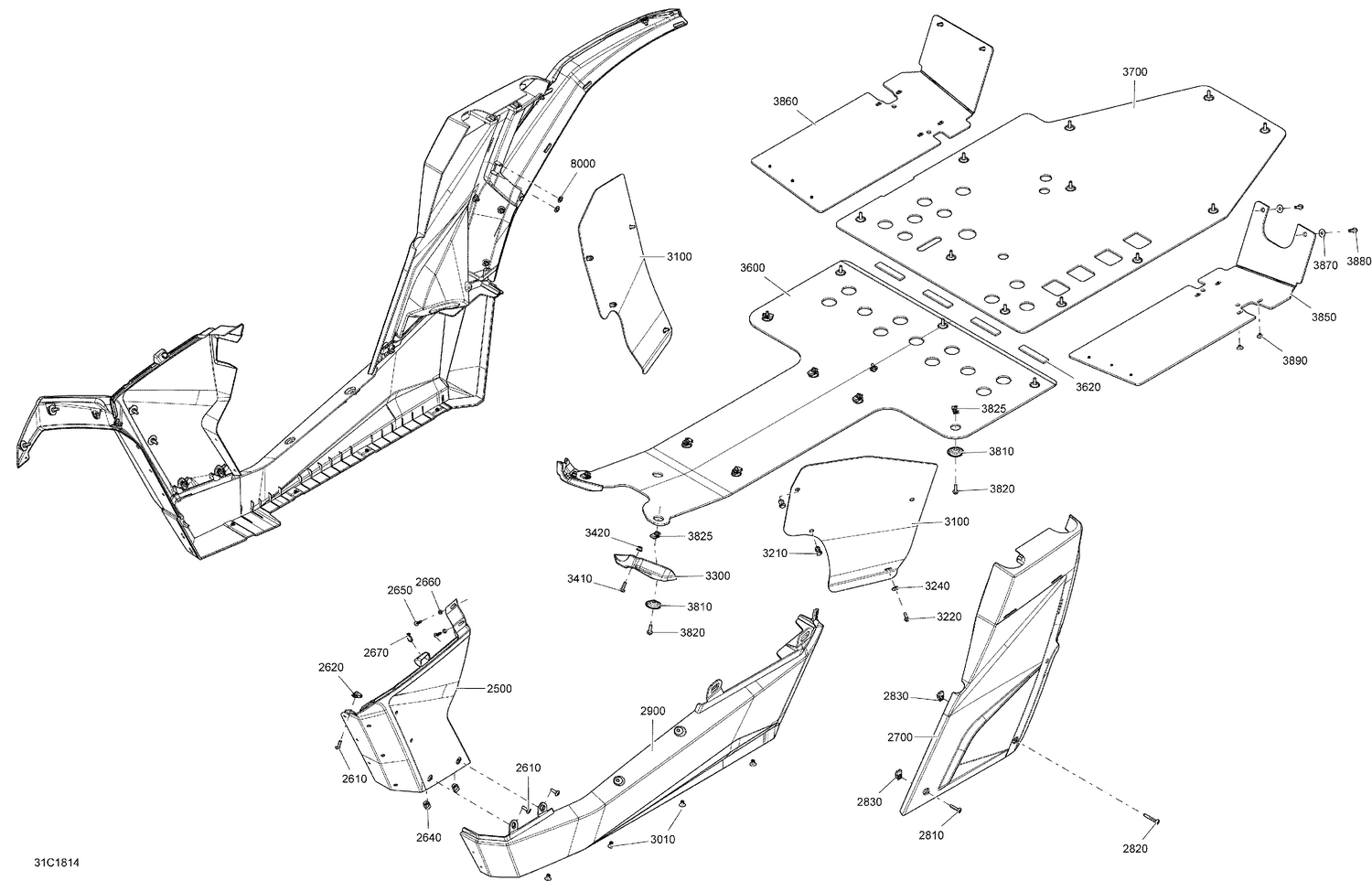

09- Body Central Part Maverick - Gulfstream Blue Models
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2610 | 250000722 | Torx Screw M6 X 20 |
| 2620 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2640 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2650 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2660 | 234051410 | Flat Washer M5 |
| 2670 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 2810 | 250000843 | Torx Truss Screw M6 X 30 |
| 2820 | 250000748 | Torx Screw M6 X 45 |
| 2830 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2900 | 705006991 | LH Lateral Middle Panel |
| 2900 | 705006992 | RH Lateral Middle Panel |
| 3010 | 293150104 | Pop Rivet 3/16" |
| 3100 | 705007827 | INNER FENDER - Call your local BRP dealership |
| 3210 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 3220 | 210261650 | Hex. Flange Screw M6 X 16 |
| 3240 | 234062670 | Stainless Steel Flat Washer |
| 3300 | 705006038 | LH BUMPER SKID CAP - Call your local BRP dealership |
| 3300 | 705006039 | RH BUMPER SKID CAP - Call your local BRP dealership |
| 3410 | 250000712 | Torx Screw M6 X 20 |
| 3420 | 233261494 | Hex. Flange Elastic Nut M6 |
| 3600 | 705005798 | Front Skid Plate |
| 3620 | 291001932 | Pad |
| 3700 | 705005480 | Rear Skid Plate |
| 3810 | 705007171 | Cup |
| 3820 | 210262050 | Hexagonal Head Screw |
| 3825 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3860 | 705007038 | RH Lateral Skid Plate |
| 3870 | 250200097 | Flat Washer |
| 3880 | 210262050 | Hexagonal Head Screw |
| 3890 | 293150104 | Pop Rivet 3/16" |
