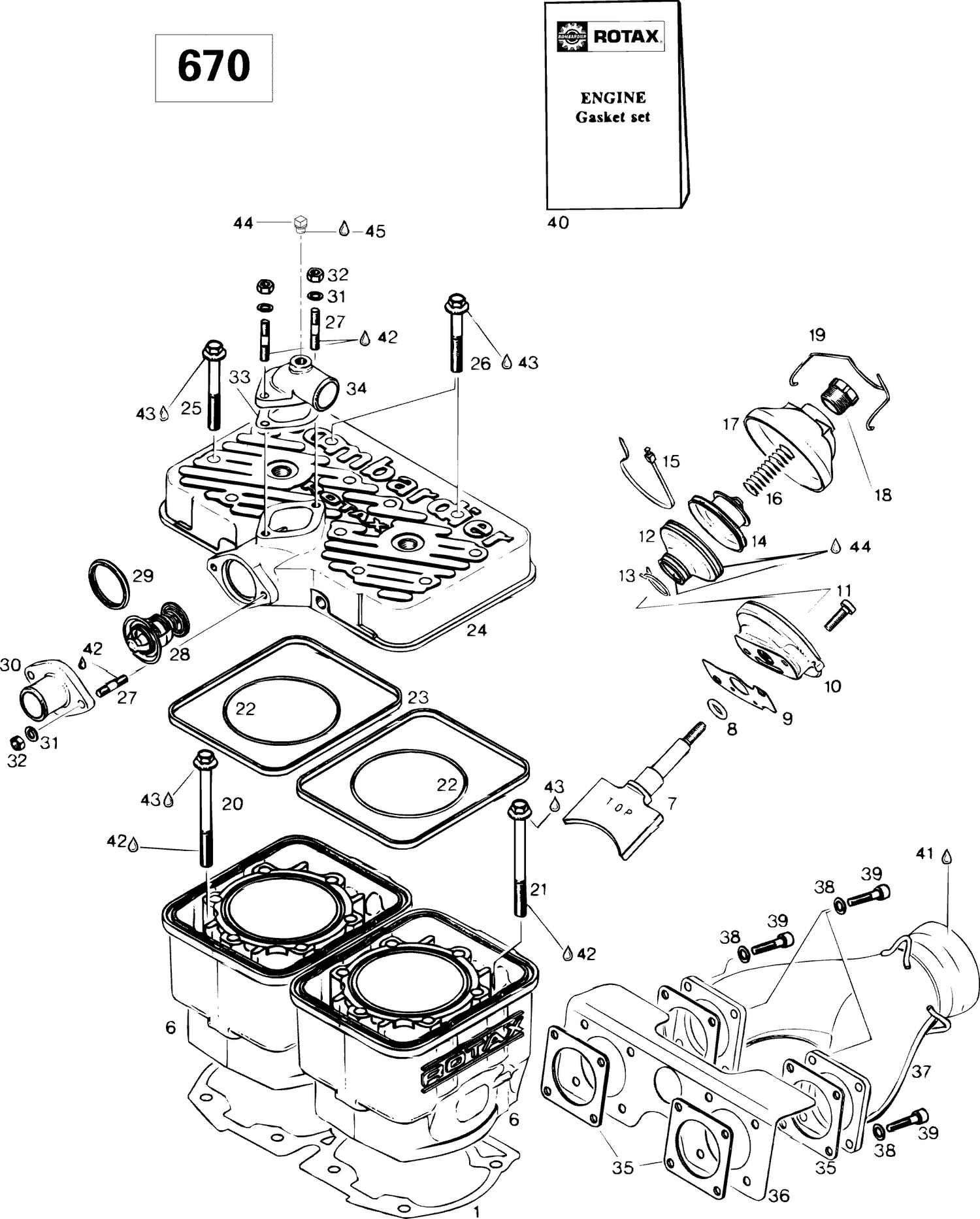

01- Cylinder And Exhaust Manifold 670SE

01- Cylinder And Exhaust Manifold 670SE

Parts (44)

RefPart NumberDescription
1 420931230 Gasket-Double 0.3 mm
2 420931231 Gasket-Double 0.4 mm
3 420931233 GASKET-DOUBLE 0.5 MM - Call your local BRP dealership
4 420931232 Gasket-Double 0.6 mm
5 420931234 GASKET-DOUBLE 0.8 MM - Call your local BRP dealership
6 420923196 Cylinder With Sleeve
7 420854320 Exhaust Valve
8 420430110 O-Ring
9 420230256 GASKET - Call your local BRP dealership
10 420253275 Valve Rod Housing
11 420241237 Socket Head Screw M6 x 16 This part replaces 420241236.
12 420260721 Bellow
13 420838190 SPRING CLAMP - Call your local BRP dealership
14 420854449 Exhaust Valve This part replaces 420253257.
15 420251920 Clamp 77 mm
16 420239948 SPRING - Call your local BRP dealership
17 420911552 Valve Cover This part replaces 420911550.
18 420241221 Adjuster Screw This part replaces 420241220.
19 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
20 420940126 Hex. Screw M8 x 100
21 420941518 Screw M8x105 This part replaces 420941511.
22 420931220 O-RING - Call your local BRP dealership
23 420850040 RUBBER RING - Call your local BRP dealership
24 420913542 Cylinder head (Violet)
25 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
26 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
27 420941160 Stud M6 x 18
28 420922519 Thermostat This part replaces 420922510.
29 420931270 SEALING RING - Call your local BRP dealership
30 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
31 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership
32 232061414 Hex. Nut M6 This part replaces 228061045.
33 420850339 Gasket This part replaces 420850336.
34 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
35 420850552 Gasket
36 420975777 Heat Deflector
37 420973987 Exhaust Manifold
38 234161471 Lock Washer M6, Black This part replaces 224761110.
39 205062544 Socket Head Screw M6 X 25 This part replaces 222962565.
40 420997800 Gasket Set
41 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
42 293800060 Loctite 243, 10 ml This part replaces 413703000.
43 413707000 Dow Corning 111, 150 g
44 414184400 Plug
