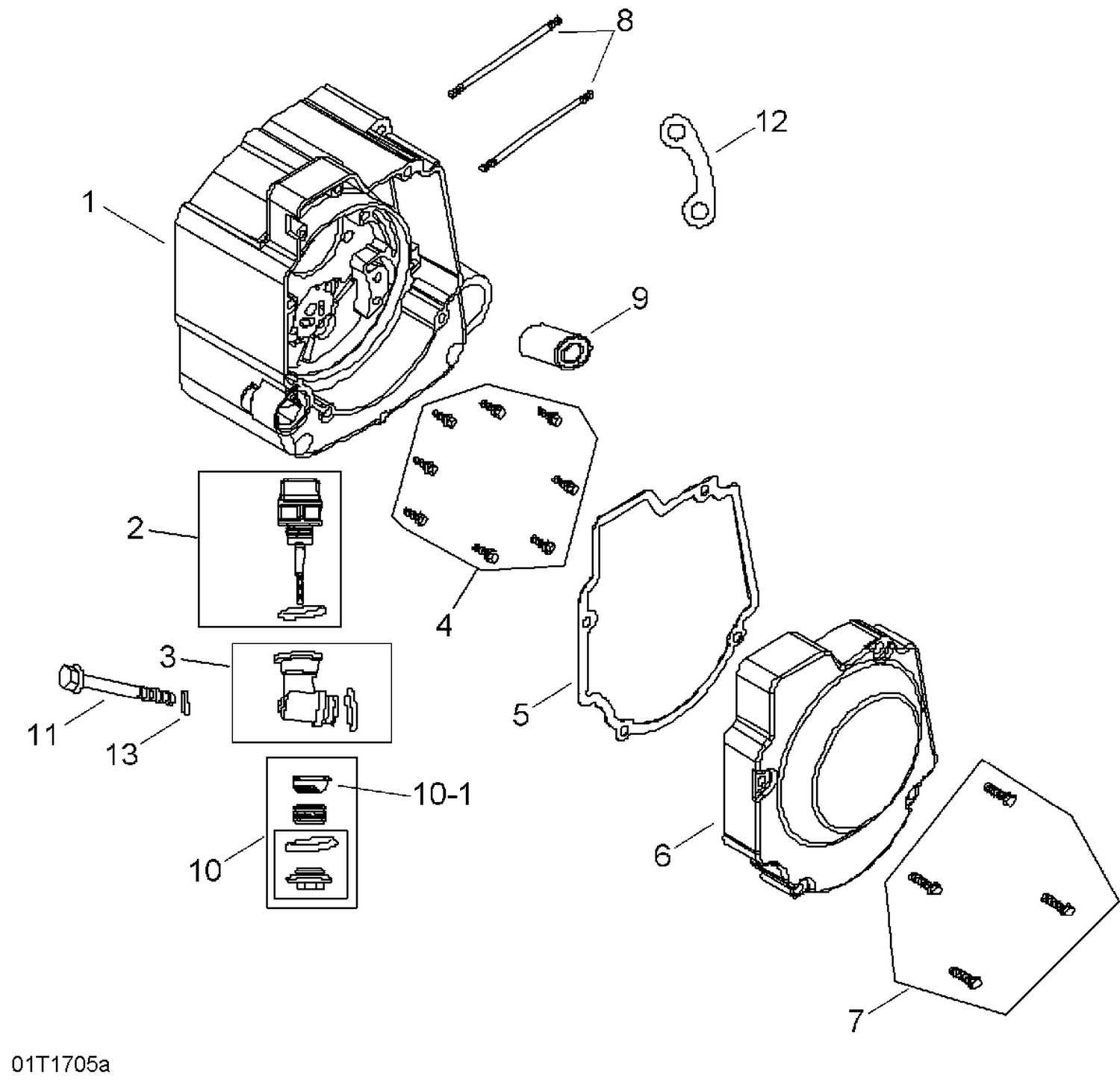

01- Crankcase, Right
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V11100CJF040 | RH Crankcase |
| 2 | V15650CJF010LL | Oil Level Gauge |
| 3 | V11165CJF010LL | Gauge Conduit |
| 4 | 207667044 | Hex. Flange Screw M6 X 70 |
| 5 | V11393CJF010 | Gasket This part replaces V11393CJF000. |
| 6 | V11330CJF020LL | Cover |
| 7 | 207663544 | Hex. Flange Screw M6 X 35 |
| 8 | V9100106196 | Stud Bolt DS70 This part replaces V9100106193. |
| 9 | V11103CJF010 | Rubber Bushing |
| 10 | V12361GYK000 | Cap Tappet Adjusting |
| 11 | 207665044 | Hex. Flange Screw M6 X 50 |
| 12 | V11392CJF010 | Support |
