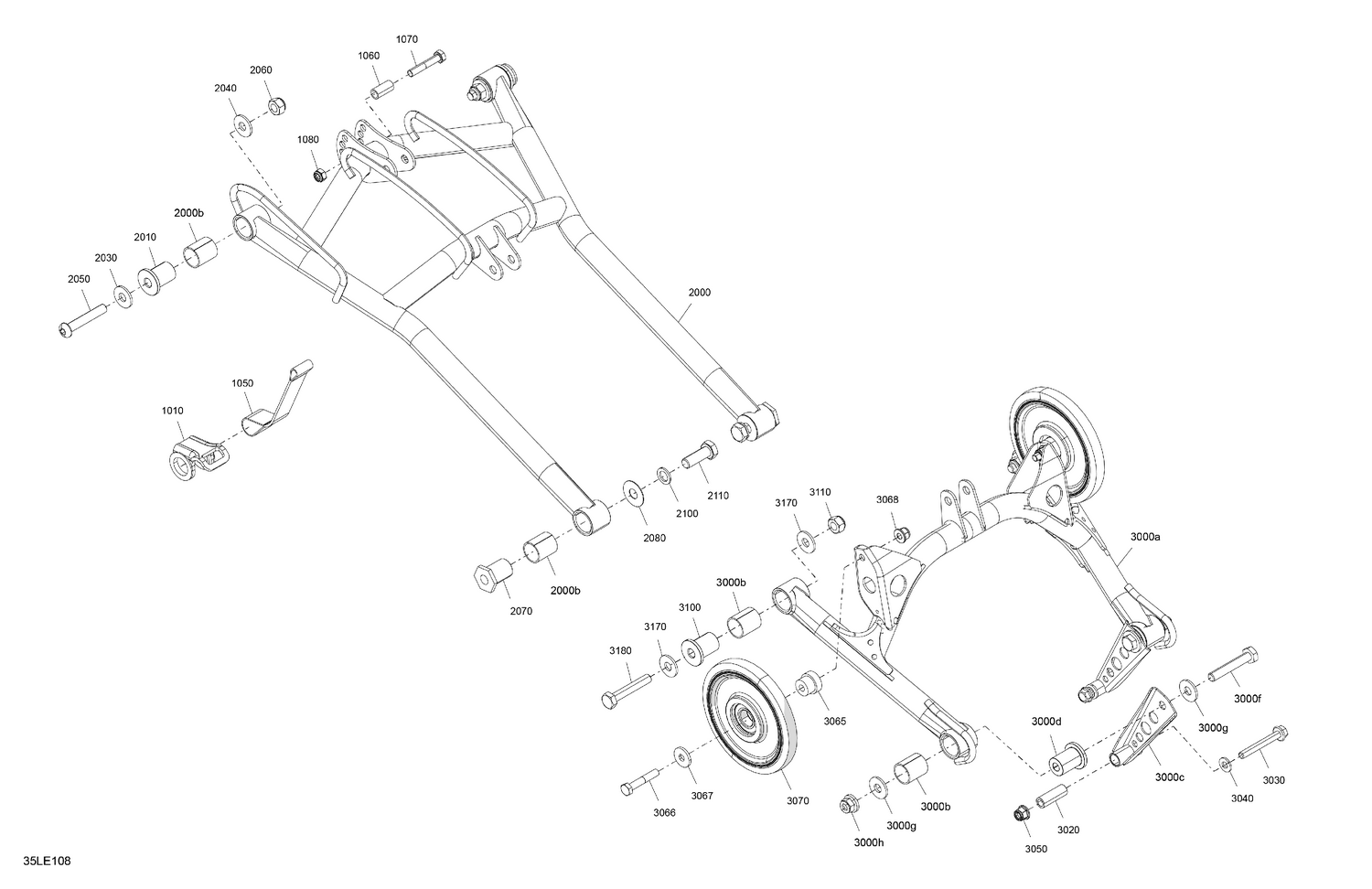

05- Suspension - Rear - Upper Section
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1010 | 503194867 | Holder, Limiter Strap |
| 1050 | 503195777 | Strap Stopper |
| 1060 | 503195579 | Sleeve |
| 1070 | 207084544 | Hex. Screw M8 X 45 |
| 1080 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2000b | 503191554 | Bushing |
| 2010 | 503190698 | Axle |
| 2030 | 503191926 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2080 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000a | 503196667 | Rear Suspension Arm |
| 3000b | 503191554 | Bushing |
| 3000c | 503194869 | Rear Swing |
| 3000d | 503196811 | Axle |
| 3000f | 250000696 | Hexagonal Screw |
| 3000g | 503191926 | Washer |
| 3000h | 233201466 | Flanged Elastic Nut M10 |
| 3020 | 503194890 | Pivot Arm Axle |
| 3030 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 3040 | 503192494 | Washer |
| 3050 | 233281466 | Elastic Flang Nut M8 |
| 3065 | 605454461 | Sleeve |
| 3066 | 207084544 | Hex. Screw M8 X 45 |
| 3067 | 20077 | M8 Washer |
| 3068 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3070 | 503193852 | Idler Wheel |
| 3100 | 503190698 | Axle |
| 3110 | 233601466 | Elastic Locking Nut M10 |
| 3170 | 503191926 | Washer |
