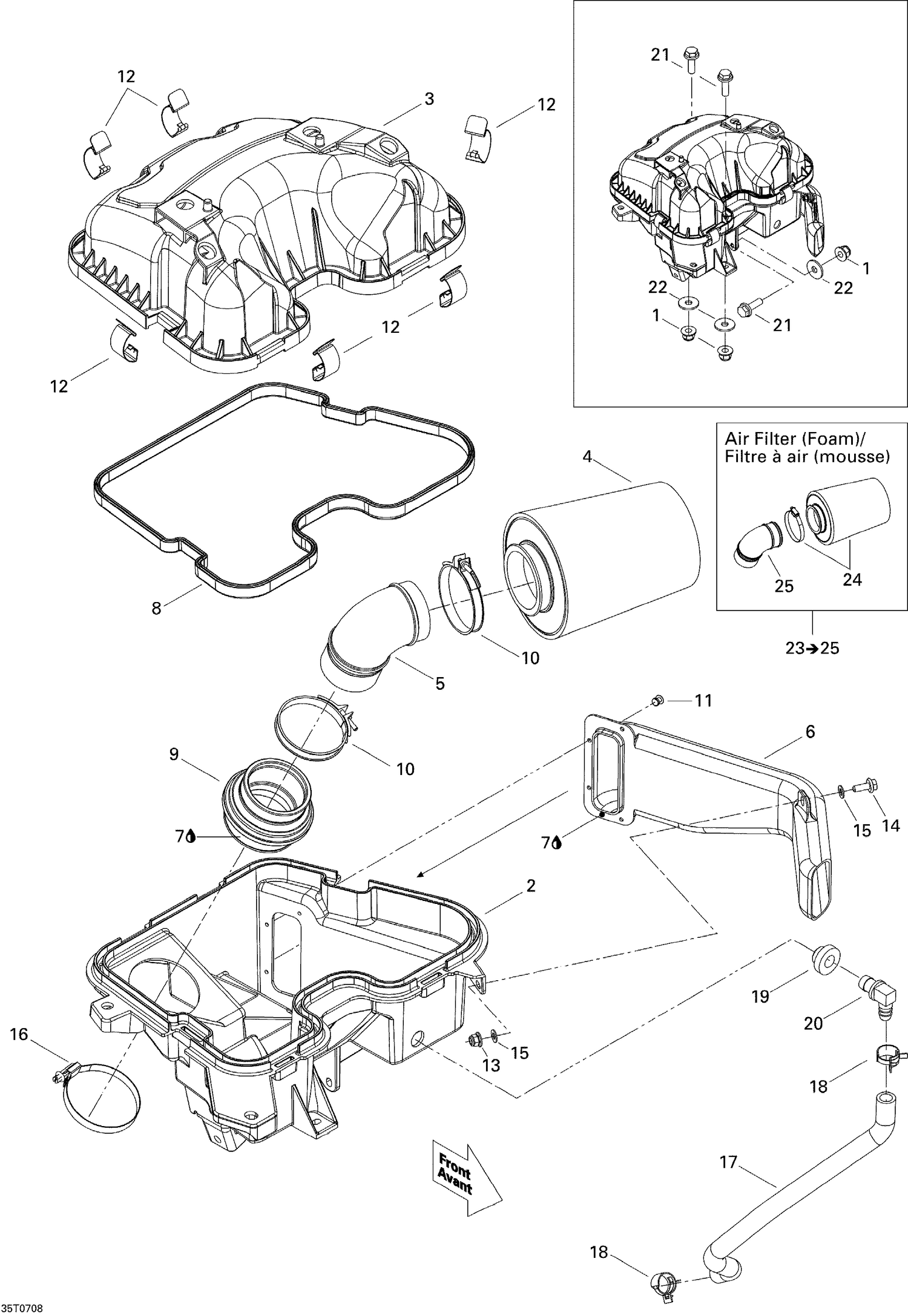

| Ref | Part Number | Description |
|---|
| 1 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2 |
707800173 |
Intake Silencer Base |
| 3 |
707800252 |
Intake Silencer Cover |
| 4 |
707800174 |
Air Filter |
| 5 |
707800270 |
RIGID ADAPTOR - Call your local BRP dealership |
| 6 |
707800175 |
FRONT INTAKE ADAPTOR - Call your local BRP dealership |
| 7 |
293800081 |
Loctite 5910, 300 ml |
| 8 |
707800197 |
Oil Seal |
| 9 |
707800177 |
INTAKE ADAPTOR - Call your local BRP dealership |
| 10 |
293650175 |
Clamp |
| 11 |
Not |
Available As Spare Part - Rivet |
| 12 |
707800231 |
COVER BRACKET - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Hex Flange Elastic Nut M6 |
| 14 |
Not |
Available As Spare Part - Hex Flange Screw M6 X 16 |
| 15 |
Not |
Available As Spare Part - Flat Washer 6 mm |
| 16 |
293650091 |
Norma Clamp |
| 17 |
707800206 |
VENT HOSE - Call your local BRP dealership |
| 18 |
293650110 |
Norma Clamp |
| 19 |
707800347 |
Grommet This part replaces 570273900. |
| 20 |
414523600 |
Elbow Fitting |
| 21 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 22 |
250200082 |
Flat Washer This part replaces 391302000. |
| 24 |
Not |
Available As Spare Part - Air Filter With Clamp, Foam |
