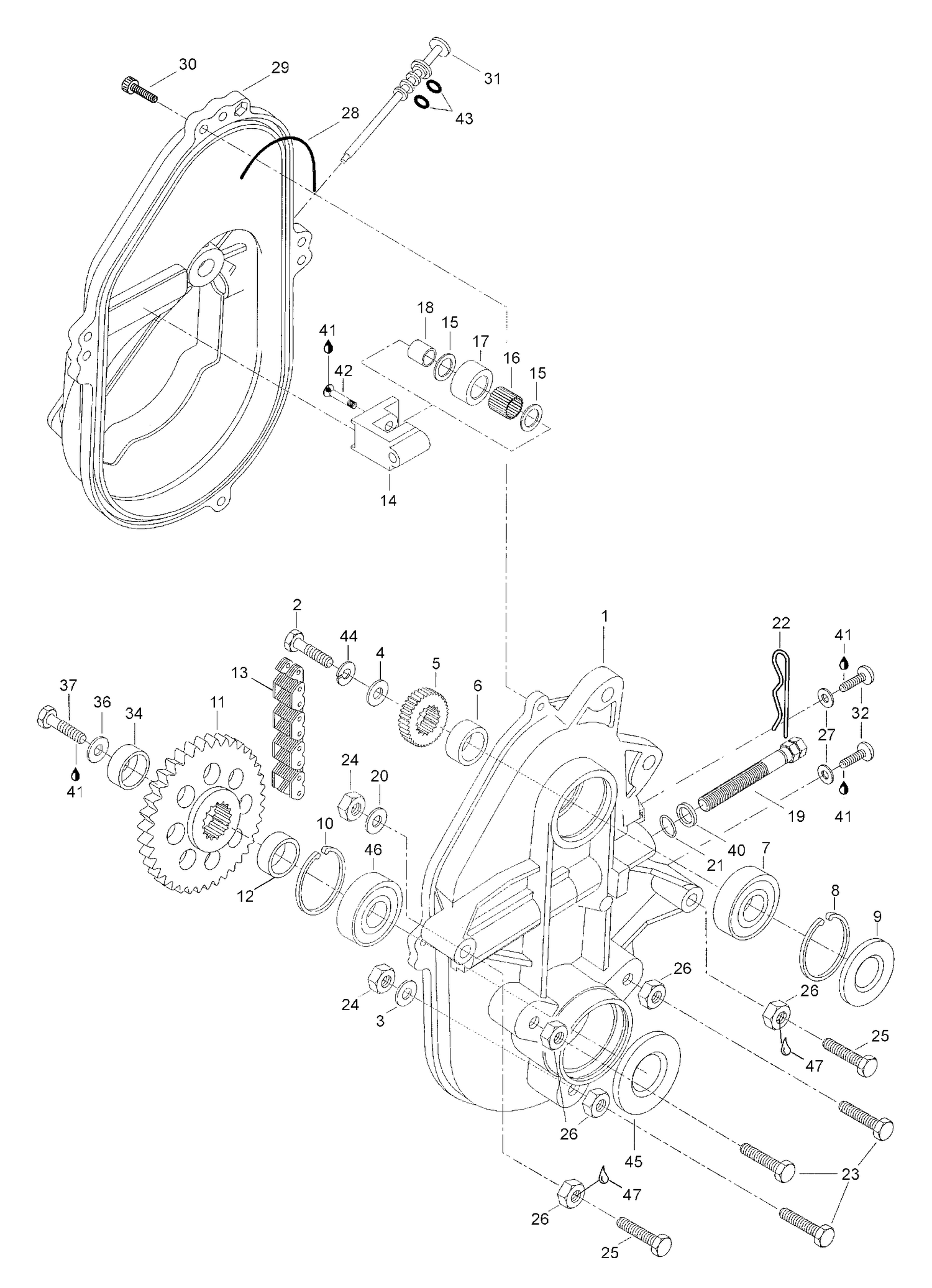

05- Chaincase
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504151777 | Chaincase |
| 2 | 40036 | Screw M8x20 |
| 3 | 20073 | Copper washer |
| 4 | 20076 | Washer |
| 5 | 504139300 | Sprocket Z=21 |
| 6 | 504093400 | Shim |
| 7 | 293350115 | Ball Bearing This part replaces 405404400. |
| 8 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 9 | 414531200 | Seal |
| 10 | 31030 | Circlip |
| 11 | 504085500 | Sprocket Z=44 |
| 12 | 501021800 | Spacer |
| 13 | 412106700 | DRIVE CHAIN (72 LINKS-LARGE) - Call your local BRP dealership |
| 14 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 15 | 504080300 | WASHER - Call your local BRP dealership |
| 16 | 31050 | Needle bearing |
| 17 | 414531300 | ROLLER - Call your local BRP dealership |
| 18 | 504080200 | SPACER - Call your local BRP dealership |
| 19 | 732601311 | ADJUSTING SCREW - Call your local BRP dealership |
| 20 | 20005 | WASHER M10 - Call your local BRP dealership |
| 21 | 414484400 | O-ring |
| 22 | 414575600 | Hair Pin |
| 23 | 40201 | Screw M10x40 |
| 24 | 33012 | Nut elastic M10 |
| 25 | 40189 | Screw M10x65 |
| 26 | 504083800 | Spacer |
| 27 | 20042 | Gasget |
| 28 | 414362300 | O-ring |
| 29 | 080037100 | CASTING COVER - Call your local BRP dealership |
| 30 | 40340 | Self tapping screw |
| 31 | 572092700 | FILLER CAP ASS'Y - Call your local BRP dealership |
| 32 | 732601132 | Allen screw |
| 34 | 501022400 | Spacer |
| 36 | 20047 | Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 37 | 40040 | Screw M10x25 |
| 40 | 20005 | WASHER M10 - Call your local BRP dealership |
| 41 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
| 42 | 732601144 | SCREW - Call your local BRP dealership |
| 43 | 28402 | O-ring |
| 44 | 20014 | Washer |
| 45 | 504151925 | OIL SEAL - Call your local BRP dealership This part replaces 581056500. |
| 46 | 405403900 | Bearing |
