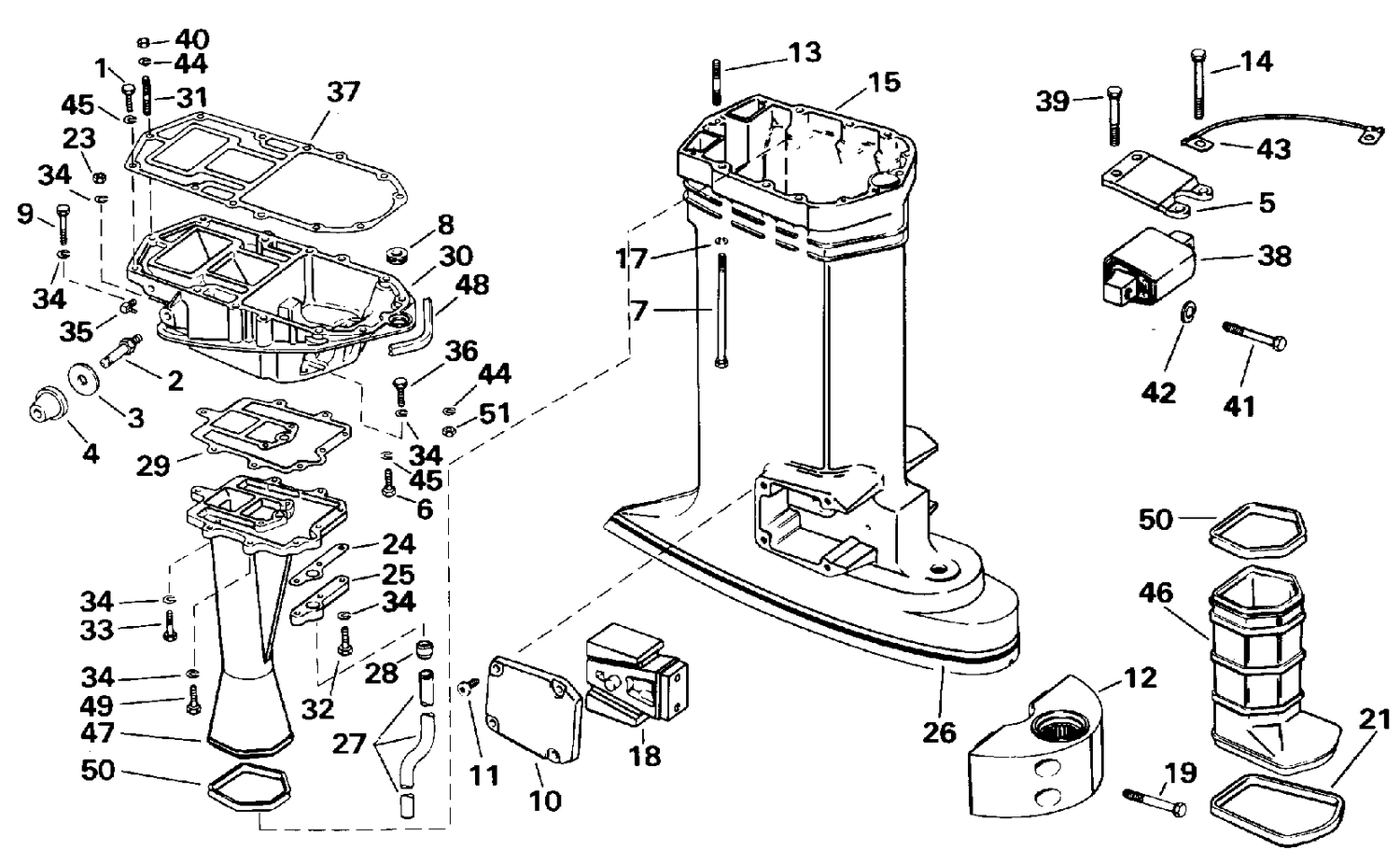

| Ref | Part Number | Description |
|---|
| 1 |
0306427 |
BOLT |
| 2 |
0329743 |
STUD, Cover mount |
| 3 |
0349556 |
Washer This part replaces 0329749. |
| 4 |
0349557 |
MOUNT This part replaces 0328584. |
| 5 |
0330929 |
PLATE, Upper mount |
| 7 |
0329161 |
SCREW, Exhaust housing |
| 8 |
0329748 |
SEAL Shift rod |
| 9 |
0303398 |
VIS, support |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0338744 |
MOUNT BRACKET This part replaces 0335506. |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0336734. |
| 13 |
0314956 |
STUD |
| 14 |
0330931 |
VIS, support supérieur |
| 15 |
0435103 |
EXHAUST HOUSING This part replaces 0397862. |
| 15 |
0435433 |
EXHAUST HOUSING This part replaces 0397861. |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434632 |
MONTURE CAOUTCHOUC, inférieur |
| 19 |
0334936 |
SCREW, Mount |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 23 |
0328742 |
NUT |
| 24 |
0332999 |
GASKET, Water tube to megaphone |
| 25 |
0333000 |
ADAPTER, Water tube to megaphone |
| 26 |
0212022 |
DECAL, Evinrude |
| 26 |
0333960 |
DECAL, Exh. Hsg. |
| 26 |
0338445 |
DECAL, Exh. hsg., Ev., 90/100/115, except Jet |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 28 |
0305145 |
GROMMET |
| 29 |
0328655 |
GASKET, Megaphone to adapter |
| 30 |
0434146 |
ADAPTER, Exh. hsg. |
| 32 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 33 |
0306418 |
VIS, ancrage |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0328590 |
Adapter to powerhead |
| 38 |
0395539 |
RUBBER MOUNT ASSY., Upper |
| 41 |
0335612 |
SCREW, Upper |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0584262 |
LEAD Assy, Ground |
| 46 |
0327796 |
EXHASUT HSG,Inner lower |
| 46 |
0327797 |
EXHAUST HOUSING, Inner lower |
| 47 |
0336267 |
TUNING MEGAPHONE |
| 48 |
0333434 |
SEAL, Cover to adapter |
| 49 |
0303398 |
VIS, support This part replaces 0302030. |
| 50 |
0320936 |
JOINT, boîtier échappement, inférieur |
