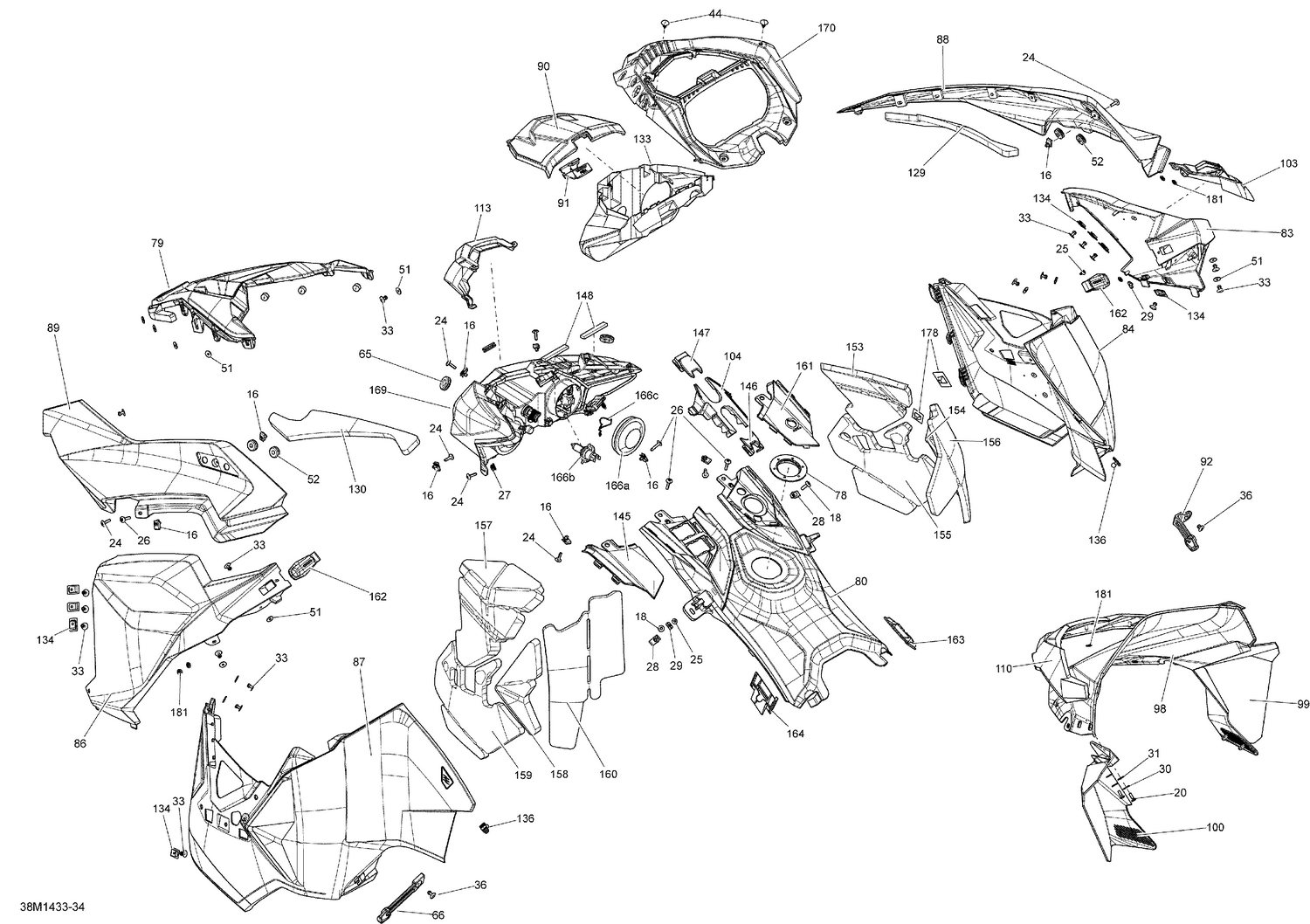

| Ref | Part Number | Description |
|---|
| 16 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 17 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 18 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 20 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 24 |
250000528 |
Torx Screw M5 X 20 |
| 25 |
250000565 |
Hexalob Screw M4 X 10 |
| 26 |
250000587 |
Torx Screw M5 X 26 |
| 27 |
250100035 |
Jack Nut M5 |
| 28 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 29 |
250100156 |
Weld Nut M4 |
| 30 |
250200024 |
Rubber Washer 5 mm |
| 31 |
250200025 |
Washer M5 |
| 33 |
293150104 |
Pop Rivet 3/16" |
| 36 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 44 |
414644300 |
Black, Dart |
| 51 |
517124300 |
Washer |
| 52 |
517307161 |
Grommet This part replaces 517302841. |
| 65 |
517303756 |
Grommet |
| 66 |
517303808 |
LH Panel Latch |
| 78 |
517304518 |
Console Nut |
| 79 |
517304796 |
Deep Black, Center Hood |
| 80 |
517305556 |
CONSOLE-REAR - Call your local BRP dealership This part replaces 517304797. |
| 83 |
517305235 |
PANEL_BODY RH B-190 - Call your local BRP dealership |
| 84 |
517305058 |
Black, RH Panel Trim |
| 86 |
517305237 |
PANEL_BODY LH B-190 - Call your local BRP dealership |
| 87 |
517304805 |
Black, LH Flashing Panel |
| 88 |
517304910 |
HOOD RH B-190 - Call your local BRP dealership |
| 89 |
517304911 |
HOOD LH B-190 - Call your local BRP dealership |
| 90 |
517304912 |
Deep Black, Upper Storage Access Cover |
| 91 |
517304917 |
Cover Latch |
| 92 |
517304919 |
RH Panel Latch |
| 98 |
517304927 |
Windshield 345mm |
| 99 |
517304928 |
RH Air Deflector, Black 63% Transm. |
| 100 |
517304929 |
LH Air Deflector, Black 63% Transm. |
| 103 |
517304935 |
Deep Black, RH Panel Vent Grid |
| 104 |
517304970 |
Deep Black, Console Support |
| 110 |
860200944 |
Windshield Support Long, Yellow 2000 This part replaces 517305007. |
| 113 |
517305010 |
Headlight Trim Cap |
| 129 |
517305090 |
RH Rear Hood Foam |
| 130 |
517305091 |
LH Rear Hood Foam |
| 133 |
517305095 |
Deep Black, Trunk |
| 134 |
517305109 |
Rivet Plate |
| 136 |
517305734 |
Pin This part replaces 517305504. |
| 145 |
517305513 |
Deep Black LH Front Console |
| 146 |
517305180 |
Deep Black, Support Console Cap |
| 147 |
517305148 |
Deep Black, Support Console Cap |
| 148 |
517305157 |
Seal Joint |
| 153 |
517305196 |
RH Foam Upper |
| 154 |
517305197 |
RH Foam Central |
| 155 |
517305198 |
RH Foam Lower |
| 156 |
517305199 |
RH Foam Rear |
| 157 |
517305200 |
LH Upper Panel Foam |
| 158 |
517305201 |
LH Center Panel Foam |
| 159 |
517305202 |
LH Lower Panel Foam |
| 160 |
517305203 |
LH Rear Panel Foam |
| 161 |
517305222 |
DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership |
| 162 |
517305279 |
Panel Latch |
| 163 |
517305724 |
RH Panel Clip Ass'y, Black This part replaces 517305493. |
| 164 |
517305722 |
LH Panel Clip Ass'y, Black This part replaces 517305494. |
| 166a |
219400070 |
Cap |
| 166b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 169 |
517306180 |
Headlamp This part replaces 517305497. |
| 170 |
517305511 |
Deep Black, Indicator Support |
| 178 |
517305451 |
Heat Shield |
| 181 |
250100158 |
Push Nut |
