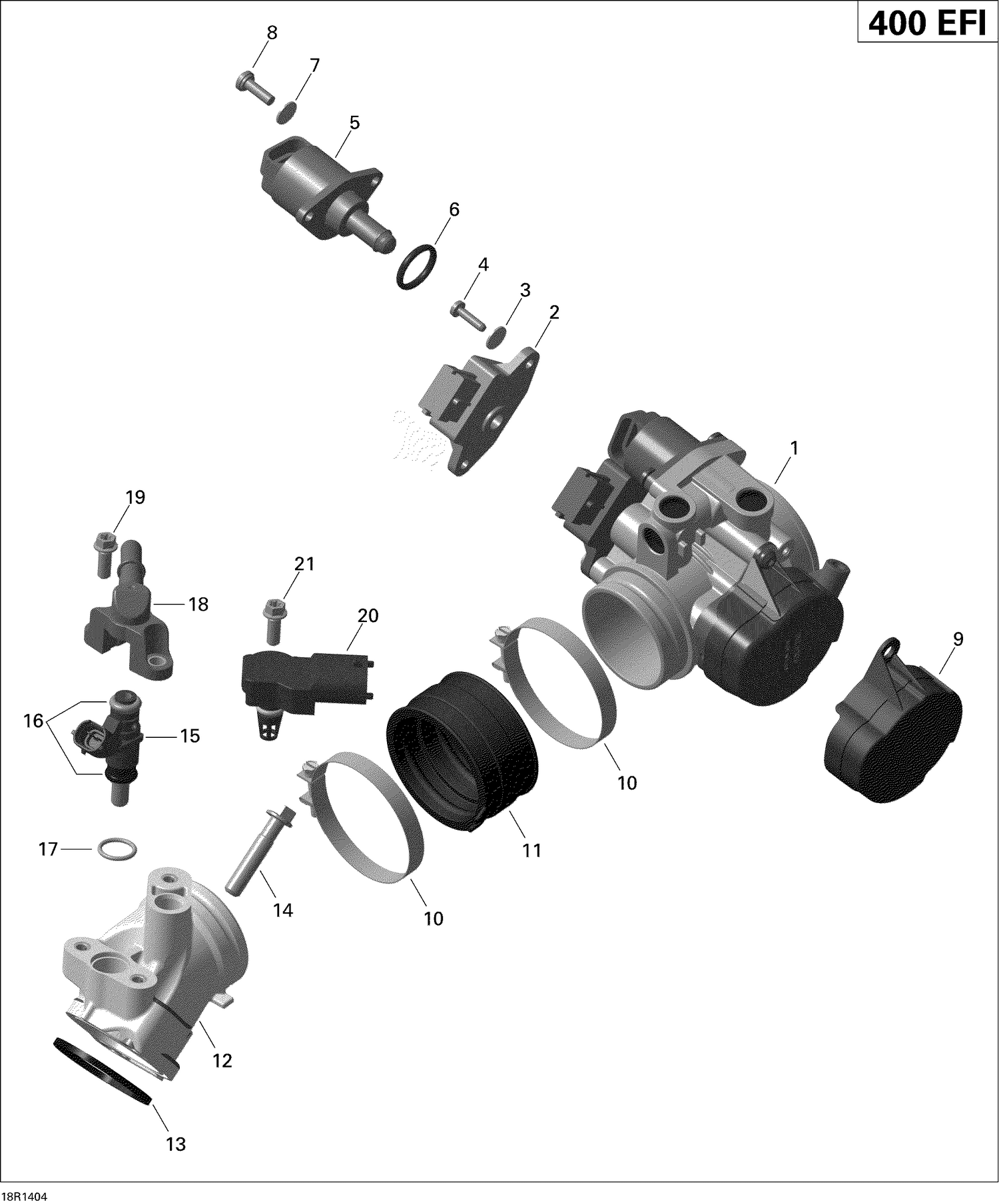

02- Air Intake Manifold And Throttle Body
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420866120 | Position Sensor This part replaces 270000251. |
| 3 | 234042600 | Flat Washer 4 mm, Stainless |
| 4 | 208641660 | Phillips Screw M4 X 16 |
| 5 | 420665941 | Idle Air Control Valve This part replaces 420665940. |
| 6 | 420631780 | O-Ring |
| 7 | 420845710 | Snap Ring |
| 8 | 420440911 | Binding Head Screw M5 X 16 |
| 9 | 420281540 | Cover Kit |
| 10 | 420251480 | Clamp |
| 11 | 420267480 | Intake Adaptor |
| 12 | 420267525 | ELBOW INTAKE ADAPTOR - Call your local BRP dealership |
| 13 | 420630642 | Gasket |
| 14 | 420440482 | ALLEN SCREW M8 X 40 - Call your local BRP dealership |
| 16 | 420631220 | O-Ring |
| 17 | 420631296 | O-Ring This part replaces 420631295. |
| 18 | 420874901 | Fuel Rail |
| 19 | 420641048 | Torx Flange Screw M6 X 16 |
| 20 | 707000995 | Pressure And Temperature Sensor This part replaces 707000564. |
