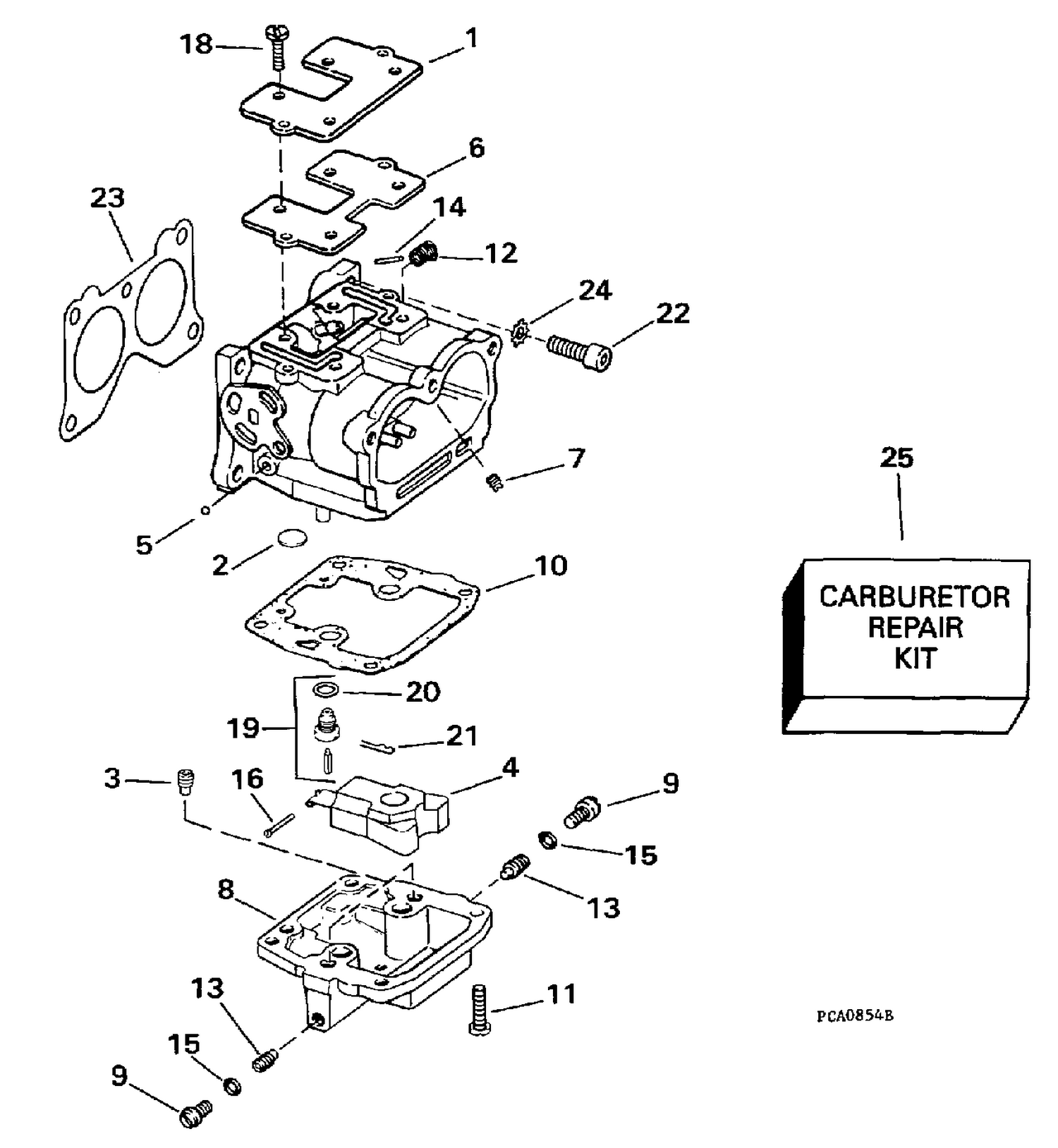

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel |
| 3 |
0324652 |
ORIFICE No.26 200TX only |
| 4 |
0383437 |
FLOAT ASSEMBLY |
| 6 |
0334353 |
GASKET, Cover |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. |
| 9 |
0330131 |
CLAMP, Fuel filter |
| 10 |
0338884 |
GASKET, Float bowl |
| 13 |
0321731 |
ORIFICE PLUG |
| 13 |
0328555 |
ORIFICE, High speed, #68C |
| 18 |
0333750 |
SCREW, Cover |
| 21 |
0336842 |
CLIP, SPRING |
| 22 |
0203023 |
SCREW, Bracket to upper carb. |
| 23 |
0327707 |
GASKET, Air silencer |
| 0438887 |
0439727 |
CARBURETOR ASSY., 90 models This part replaces 0438887. |
| 0438931 |
0439728 |
CARBURETOR ASSY., 115 models This part replaces 0438931. |
