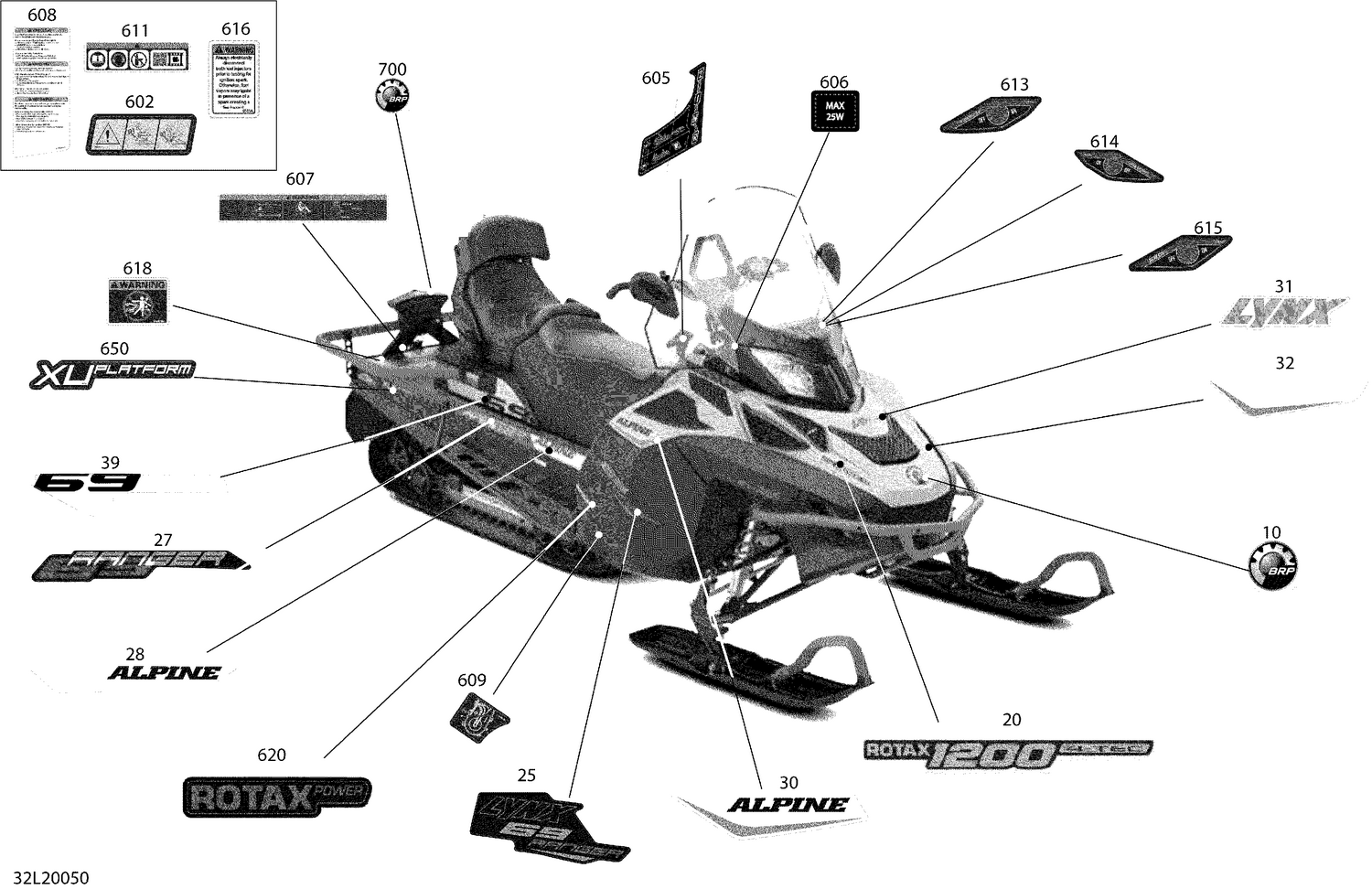

09- Body - Decals
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 516008739 | Logo 68mm "BRP" |
| 20 | 516004226 | Hood Decal "Rotax 1200 4-Tec" |
| 25 | 516008179 | Side Panel Decal "Lynx 69 Ranger" |
| 27 | 516008180 | Frame Decal "69 Ranger" |
| 28 | 516008245 | Frame Decal "Alpine" |
| 30 | 516008243 | Acces Panel Decal " Alpine " |
| 31 | 516005376 | Hood Decal "Lynx" |
| 32 | 516008244 | Hood Decal |
| 39 | 516008246 | Storage Box Decal 69 |
| 602 | 516005111 | Instruction Decal, Back Seat Locking |
| 605 | 516004294 | Instruction Label, Transmission |
| 606 | 516003918 | Power Outlet Decal (25W) |
| 607 | 516008675 | Warning Label |
| 608 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 609 | 516003925 | Checking Label, Transmission |
| 611 | 516009225 | Warning Decal Europe |
| 613 | 516005677 | Instruction Decal Working Light |
| 614 | 516005678 | Instruction Decal Drive Horn |
| 615 | 516005679 | Instruction Decal |
| 616 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 618 | 516007584 | Warning Decal |
| 620 | 516008760 | Decal "Rotax Power" |
| 650 | 516005954 | Tunnel Decal " XU Platform " |
