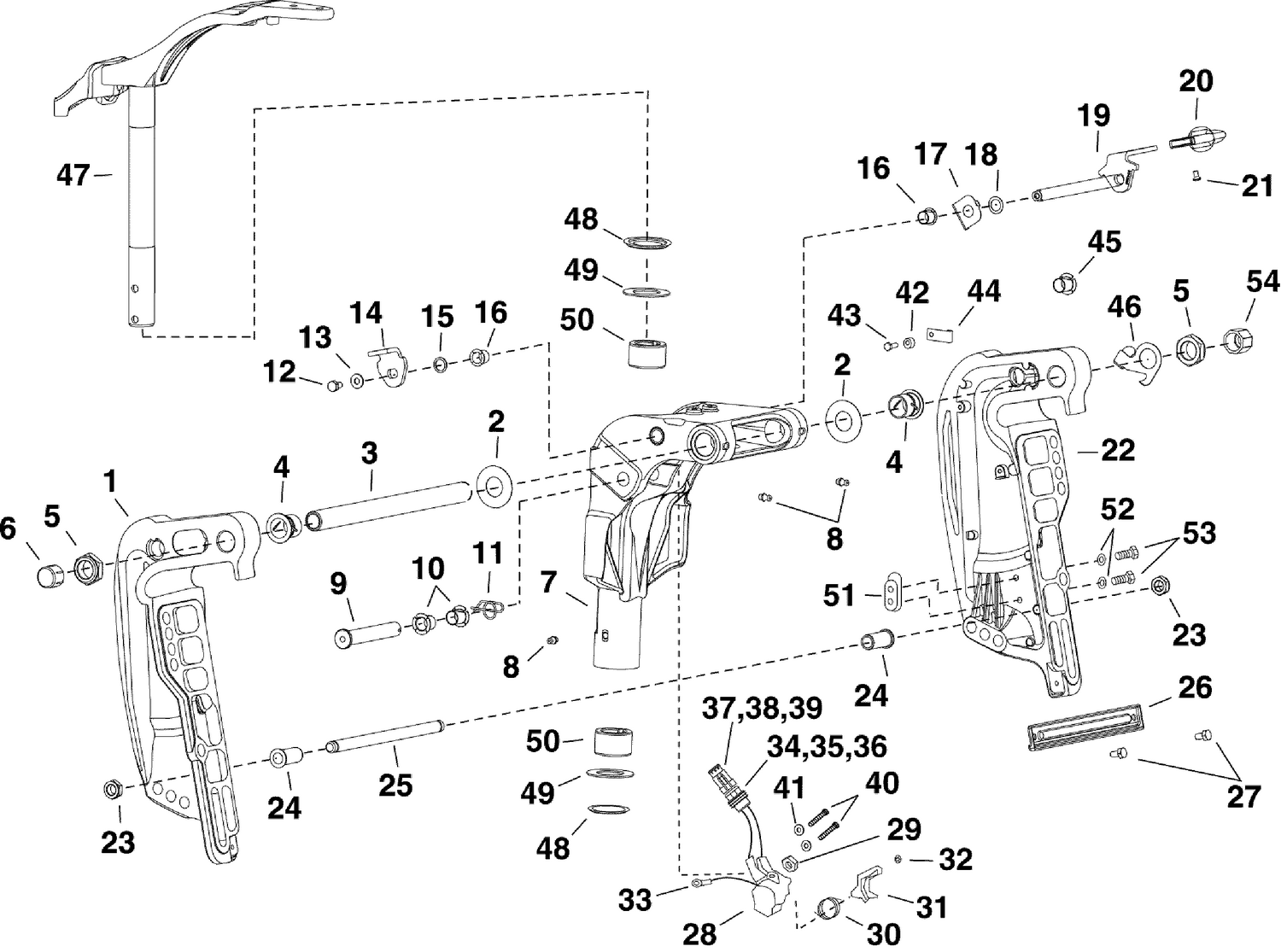

| Ref | Part Number | Description |
|---|
| NS |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 1 |
0333624 |
STERN BRACKET, Starboard |
| 2 |
0317782 |
THRUST WASHER |
| 3 |
0351896 |
TILT TUBE |
| 4 |
0319787 |
BUSHING |
| 5 |
0335554 |
CROU, tube de relevage |
| 6 |
0317894 |
CACHE, tube de relevage |
| 7 |
0356963 |
SWIVEL BRACKET This part replaces 0353295. |
| 9 |
0332435 |
PIN |
| 11 |
0334259 |
CLIP |
| 14 |
0432293 |
LEVER Assembly, Trail lock |
| 15 |
0314390 |
RETAINER |
| 16 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 17 |
0333765 |
SPRING |
| 19 |
0398875 |
LEVER & SHAFT |
| 20 |
0334438 |
KNOB |
| 21 |
0318238 |
SCREW |
| 22 |
0344104 |
STERN BRACKET, Port |
| 25 |
0332447 |
PIN,TILT |
| 26 |
0357240 |
TIE BAR, Stern bracket This part replaces 0351247. |
| 46 |
0352105 |
CLAMP, Cable |
| 47 |
5009612 |
STEERING ARM & SHAFT ASSEMBLY This part replaces 5007182. |
| 49 |
0318295 |
THRUST WASHER, Upper |
| 50 |
0339489 |
BUSHING |
| 51 |
0173029 |
ANODE |
| 53 |
0333674 |
SCREW, Anode |
