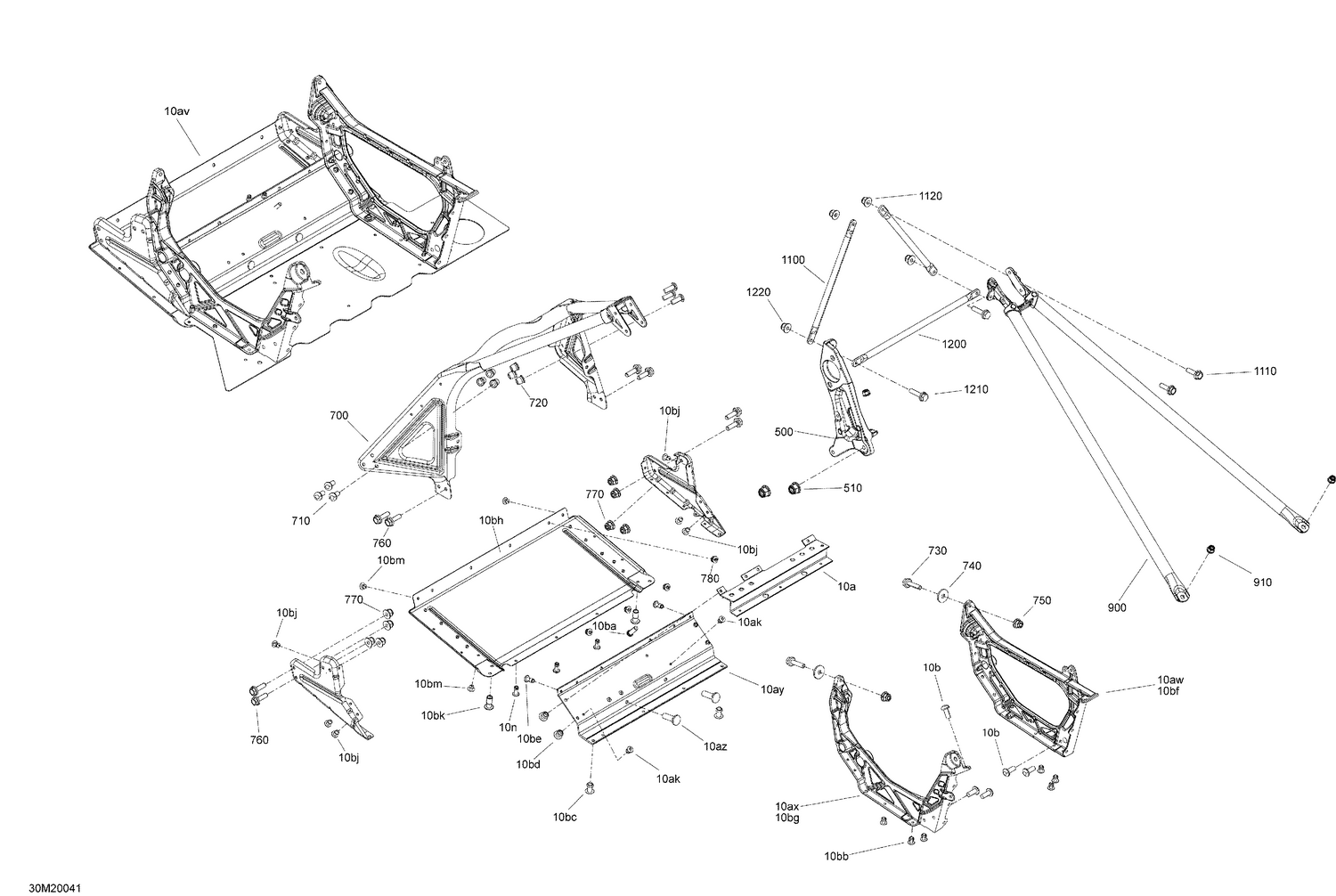

09- Frame - Front Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 518326120 | ENGINE SUPPORT - Call your local BRP dealership |
| 10ak | 293150203 | Rivet Avibulb 3/16 |
| 10aw | 518326795 | RH Member |
| 10ax | 518325558 | LH Member |
| 10az | 250300038 | Clinch Stud |
| 10ba | 250300027 | Clinch Stud M6 X 20 |
| 10bb | 293150144 | Stavex Rivet |
| 10bc | 293150120 | Hemlock Rivet 6.5 mm |
| 10bd | 293150119 | Hemlock Rivet, 6.5 mm |
| 10be | 293150191 | Monobolt Rivet, 4.8 mm |
| 10bf | 518325949 | RH Front Member |
| 10bg | 518325950 | LH Front Member |
| 10bh | 518325951 | Front Bottom Plate |
| 10bj | 390909100 | Avex Rivet |
| 10bk | 293150182 | Monobolt Rivet 6.4 |
| 10bm | 390909200 | Avex Rivet |
| 10n | 293150191 | Monobolt Rivet, 4.8 mm |
| 500 | 518328346 | Pulley Support |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 700 | 518326557 | Front Member, S Module |
| 710 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 720 | 293150149 | Collar Huck Magna-Grip 6.4 |
| 730 | 207662544 | Hex. Flange Screw M6 X 25 |
| 740 | 224061201 | Flat Washer |
| 750 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 760 | 207662044 | Hex. Flange Screw M6 X 20 |
| 770 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 780 | 390402200 | Pop Rivet 3/16" |
| 900 | 518326559 | Rear Member |
| 910 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1100 | 518325114 | Upper Lateral Column Support |
| 1110 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1200 | 518325115 | Center Column Support |
| 1210 | 207662544 | Hex. Flange Screw M6 X 25 |
