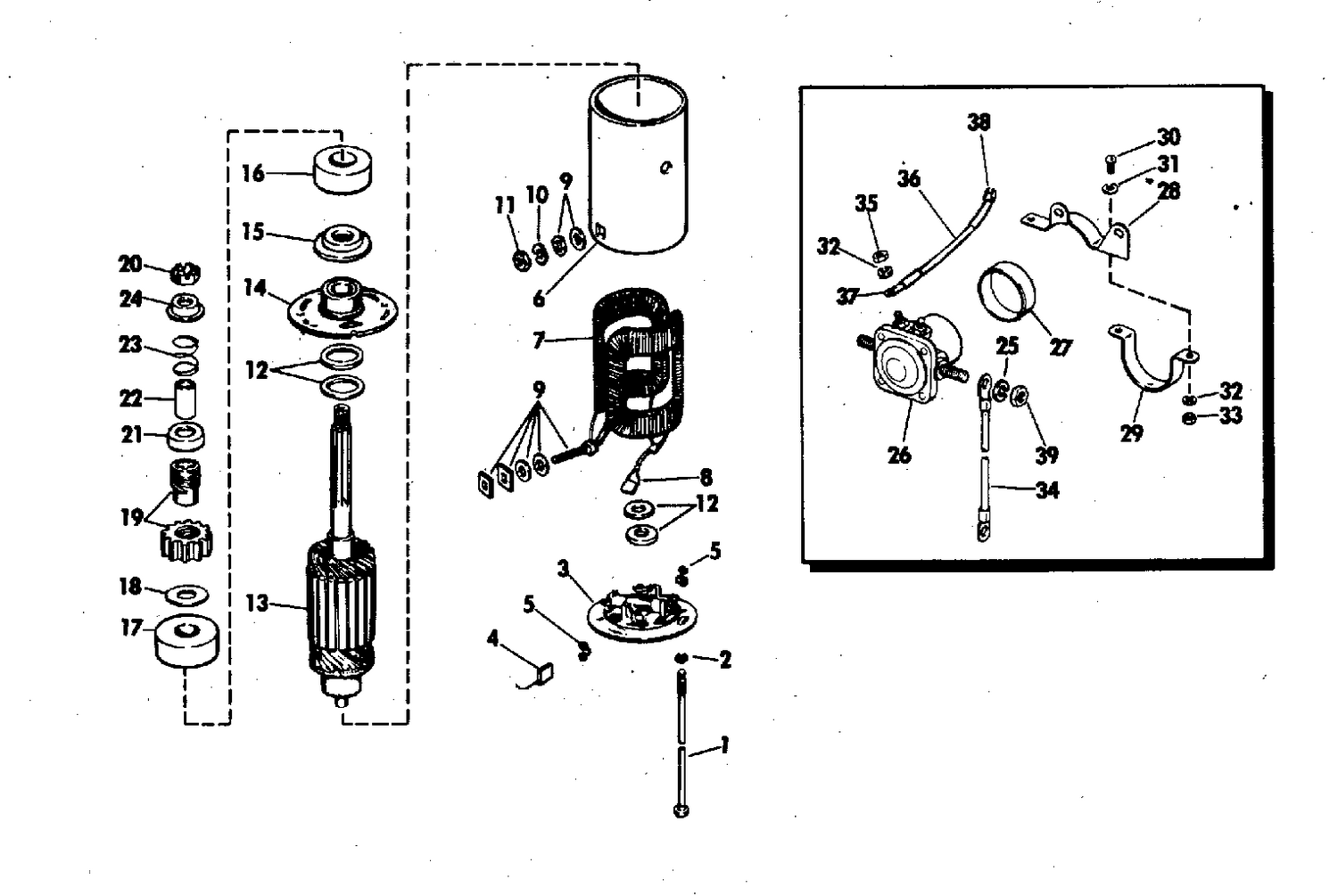

| Ref | Part Number | Description |
|---|
| 1 |
0385003 |
THRU BOLT PACKAGE |
| 3 |
0385518 |
HEAD ASSY., Commutator |
| 4 |
BRUSH,Grounded |
Ref: 5 0308141 SPING, Brush 0308141 |
| 6 |
0379623 |
FRAME & FIELD ASSY |
| 7 |
0385005 |
COIL ASSEMBLY |
| 8 |
BRUSH |
Ref: 9 0385006 TERMINAL STUD PKG 0385006 |
| 11 |
0303932 |
HEX NUT TERMINAL |
| 12 |
0385519 |
THRUST WASHER PKG |
| 13 |
0278188 |
AIRATURE |
| 14 |
0379970 |
HEAD ASST .,Drive end |
| 19 |
0387382 |
PINION & SCR SHAFT PKG |
| 27 |
0311217 |
MANCHON, solénoïde |
| 28 |
0121562 |
BRACKET, Solenoid mount |
| 29 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 30 |
0131265 |
SCREW, Solenoid mount |
| 34 |
0385156 |
CABLE ASSEMBLY |
| 36 |
0386690 |
LEAD, Solenoid to safety sw |
| 0385401 |
0385401 |
STARTER MOT0R ASSY |
