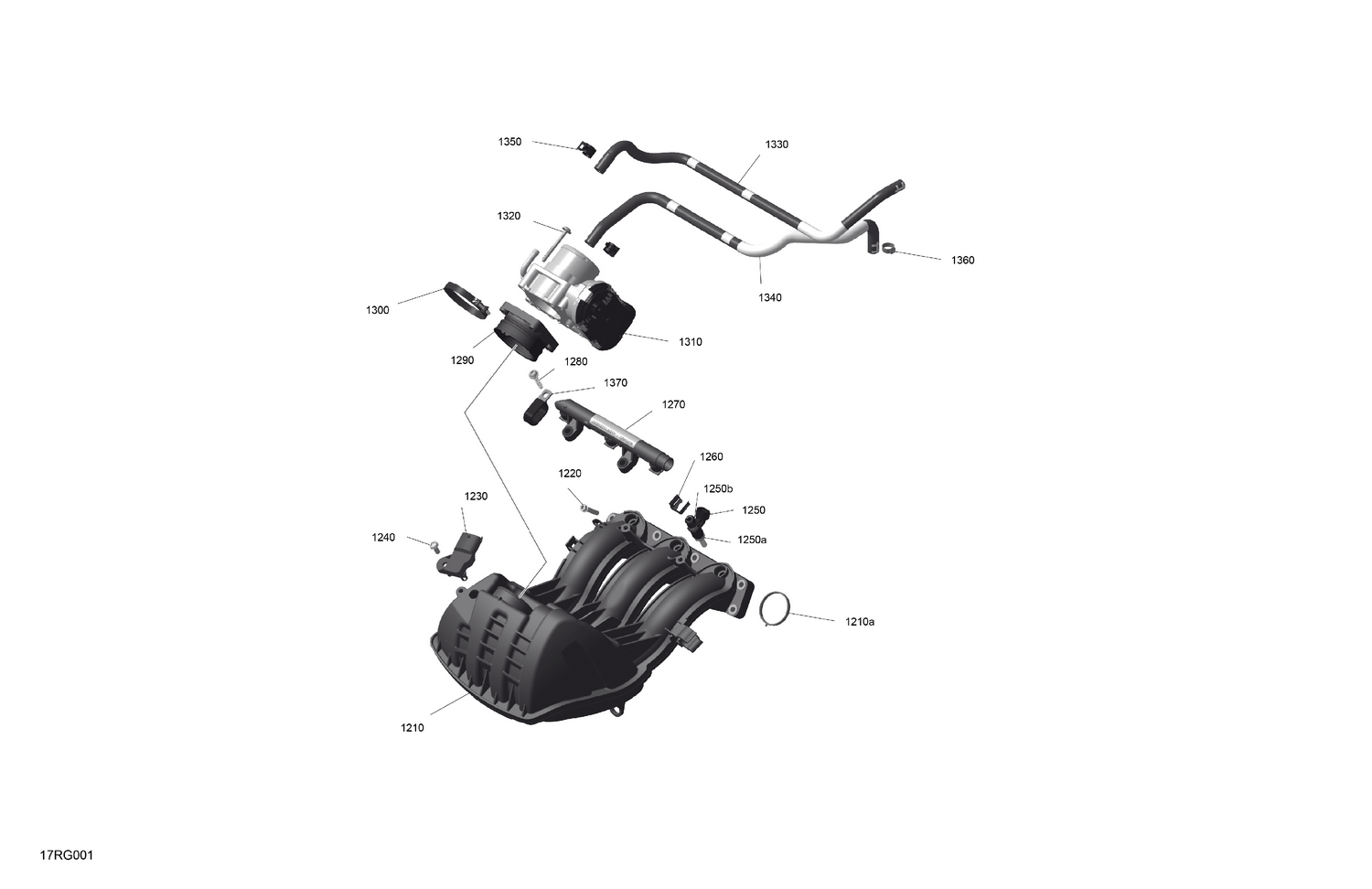

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1210a | 420431662 | Gasket |
| 1220 | 420440647 | Flanged Torx Screw M6 X 30 |
| 1230 | 420874658 | Pressure And Temperature Sensor |
| 1240 | 420641588 | Torx Flanged Screw M6 x 16 |
| 1250a | 420831050 | O-Ring |
| 1250b | 420430775 | O-Ring |
| 1260 | 420853030 | Clip |
| 1270 | 420874966 | Fuel Rail |
| 1280 | 420441575 | Flanged Torx Screw M6 X 30 |
| 1290 | 420867110 | Connecting Socket |
| 1300 | 420251834 | Hose Clamp 45-65/9 |
| 1310 | 420893148 | Throttle Body Ass'y |
| 1320 | 420441588 | Flanged Torx Screw M6 X 50 |
| 1330 | 420201506 | Molded Hose |
| 1340 | 420201500 | Molded Hose (Water In) |
| 1350 | 420853511 | Clamp |
