Home / BRP / STERN DRIVE / 1997 / 5.70 / 572BPLKD 1997 / TRANSOM MOUNT

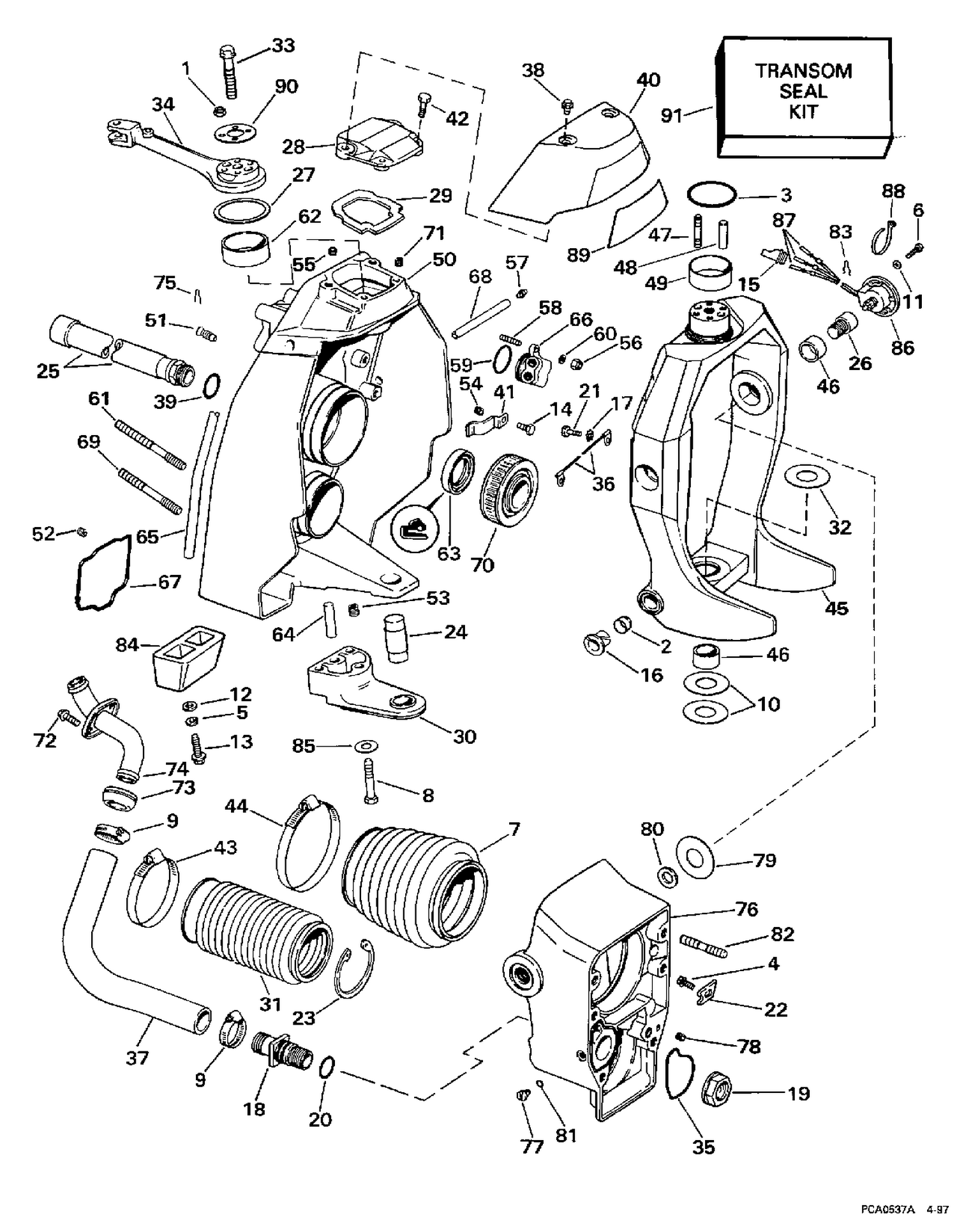

TRANSOM MOUNT

TRANSOM MOUNT

Parts (75)

RefPart NumberDescription
2 3853424 GROMMET, Pivot pin
4 0122147 VIS, connecteur This part replaces 3852006.
7 3854127 BELLOWS, U-joint
9 0912627 CLAMP This part replaces 3852602.
10 3852557 THRUST WASHER
11 3853458 WASHER, Trim sender
13 0329055 SCREW, Anode This part replaces 3852192.
16 3853423 BUSHING, Pivot pin
17 0329241 RONDELLE This part replaces 3852193.
18 3852533 NIPPLE, Water inlet
19 3852534 NUT, Nipple
20 0911718 O-RING, Nipple This part replaces 3852535.
22 3852313 RETAINER, Shift cable
23 3852665 RETAINER, Exhaust boot
24 3858192 BRACKET, Steering support This part replaces 3855960.
25 3856800 SLEEVE & CONNECTOR ASSY.
26 3852316 SCREW, Gimbal to pivot
27 3852554 THRUST WASHER, Steering arm
28 3854577 CAP & GASKET
29 3852677 GASKET, Cap
30 3858192 BRACKET, Steering support This part replaces 3852380.
31 3850426 BELLOWS, Exhaust
32 3852557 THRUST WASHER
33 3852591 SCREW, Steering arm
34 3852379 STEERING ARM
35 3852560 SEAL, Water passage
36 3853929 GROUND STRAP, Bracket to arm
37 3852352 HOSE, Water inlet
38 3852682 SCREW, Cover
40 3855005 COVER & INSERT
41 3852354 CLAMP, Oil line
42 3857088 SCREW, Cap to gimbal
43 0912628 CLAMP, Exhaust This part replaces 3852603.
44 3852604 CLAMP, Exhaust
45 3856987 GIMBAL ASSY. This part replaces 3854863.
46 3852544 BEARING, Steering & tilt
47 3852588 STUD
48 3852545 DOWEL, Steering arm
49 3852571 SLEEVE, Gimbal
50 3851976 GIMBAL HOUSING ASSY.
51 3851975 PLUG, Access hole
52 3852953 INSERT, Exhaust pipe
53 0910935 INSERT, 3/8-16 This part replaces 3852515.
54 0910901 INSERT This part replaces 3852513.
55 3852567 INSERT
59 0322501 O-RING, Manifold block This part replaces 3852169.
60 0329241 RONDELLE This part replaces 3852193.
61 3852546 STUD, Transom, long
62 3852547 BEARING, Steering
63 3852548 SEAL, Driveshaft
64 3852549 PIN, Steering support
65 3852550 SEAL, Transom
66 3852559 MANIFOLD BLOCK
67 3852846 SEAL, Exhaust pipe
68 3852564 TUBE, Grease
69 3852576 STUD, Transom, short
70 3853807 BEARING ASSY., U-joint
71 3852526 INSERT
72 0341013 SCREW, Cover This part replaces 3852454.
73 3852556 BUSHING, Water tube
74 3853880 WATER TUBE & RETAINER
75 3852555 RETAINER, Plug
76 3857979 Hsg& Washer Ay This part replaces 3855350.
77 3852536 PLUG, Water drain
78 3852514 INSERT, Shift cable retainer
79 3852558 WASHER, Gimbal to pivot hsg.
80 3852697 THRUST WASHER, Pivot screw
81 0911311 O-RING, Plug This part replaces 3852523.
82 3852551 STUD, Pivot to gear housing
83 3852555 RETAINER, Plug
84 3854130 ANODE & INSERT ASSY.
85 3852697 THRUST WASHER, Pivot screw
86 3855535 TRIM SENDER ASSY.
89 3855358 DECAL, Volvo Penta
90 3852585 PLATE, Steering arm
