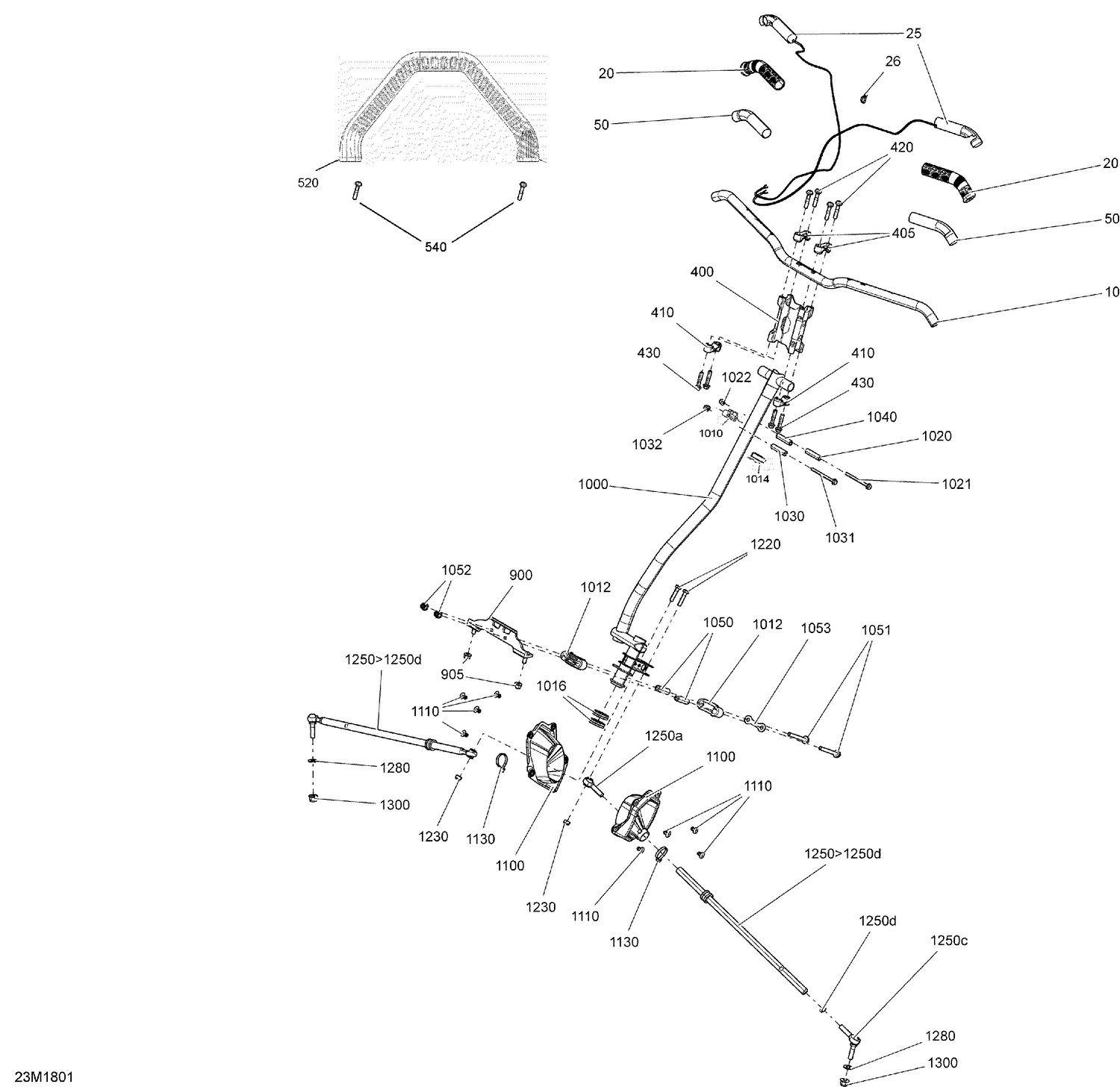

07- Steering Freeride - 850 E-TEC
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153095 | Manta Green, Handle Bar This part replaces 506153010. |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152856 | Heated Film |
| 26 | 293750002 | Tie Wrap 142 mm |
| 50 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 405 | 506152867 | LH Handle Bar Support |
| 406 | 506152928 | RH Handle Bar Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 540 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 900 | 506152787 | Support Plate |
| 905 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1000 | 506153022 | Main Tube |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 207667554 | Hex. Flange Screw M6 X 75 |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 207667554 | Hex. Flange Screw M6 X 75 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1040 | 506152297 | Housing Bushing |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap This part replaces 506153037. |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1130 | 414115200 | Tie-Rap 180 mm |
| 1220 | 207083544 | Hex. Screw M8 X 35 |
| 1230 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1250a | 506152344 | LH Threaded Ball Joint |
| 1250b | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250c | 506152684 | RH Threaded Ball Joint |
| 1250d | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
