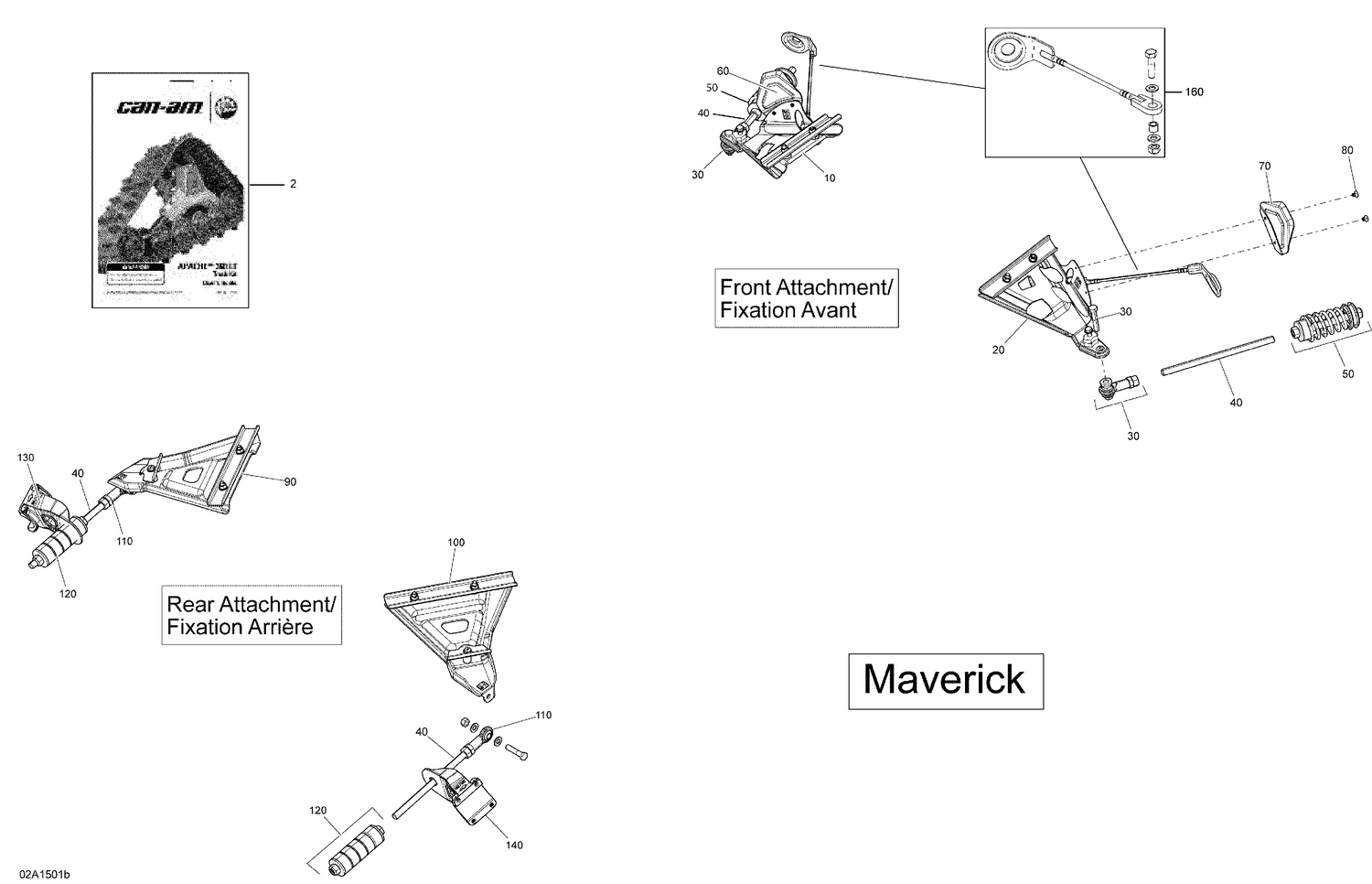

| Ref | Part Number | Description |
|---|
| 2 |
219001259 |
User's Guide, Track Kit |
| 10 |
715002216 |
LH FRONT SUB-TABLE ASSEMBLY - Call your local BRP dealership |
| 20 |
715002217 |
RH FRONT SUB-TABLE ASSEMBLY - Call your local BRP dealership |
| 30 |
715002562 |
Ball Joint Kit |
| 40 |
705401659 |
Anti-Roll Bar |
| 50 |
715002050 |
Front Damper And Ressort Kit |
| 60 |
706201185 |
LH PROTECTOR - Call your local BRP dealership |
| 70 |
706201186 |
RH PROTECTOR - Call your local BRP dealership |
| 80 |
293150104 |
Pop Rivet 3/16" |
| 90 |
715002563 |
LH REAR SUB-TABLE ASSEMBLY - Call your local BRP dealership |
| 100 |
715002564 |
RH REAR SUB-TABLE ASSEMBLY - Call your local BRP dealership |
| 110 |
715005475 |
Rear Ball Joint Kit This part replaces 715002565. |
| 120 |
715002053 |
Rear Damper Kit |
| 130 |
715002566 |
LH Mounting Clamp |
| 140 |
715002567 |
RH Mounting Clamp |
