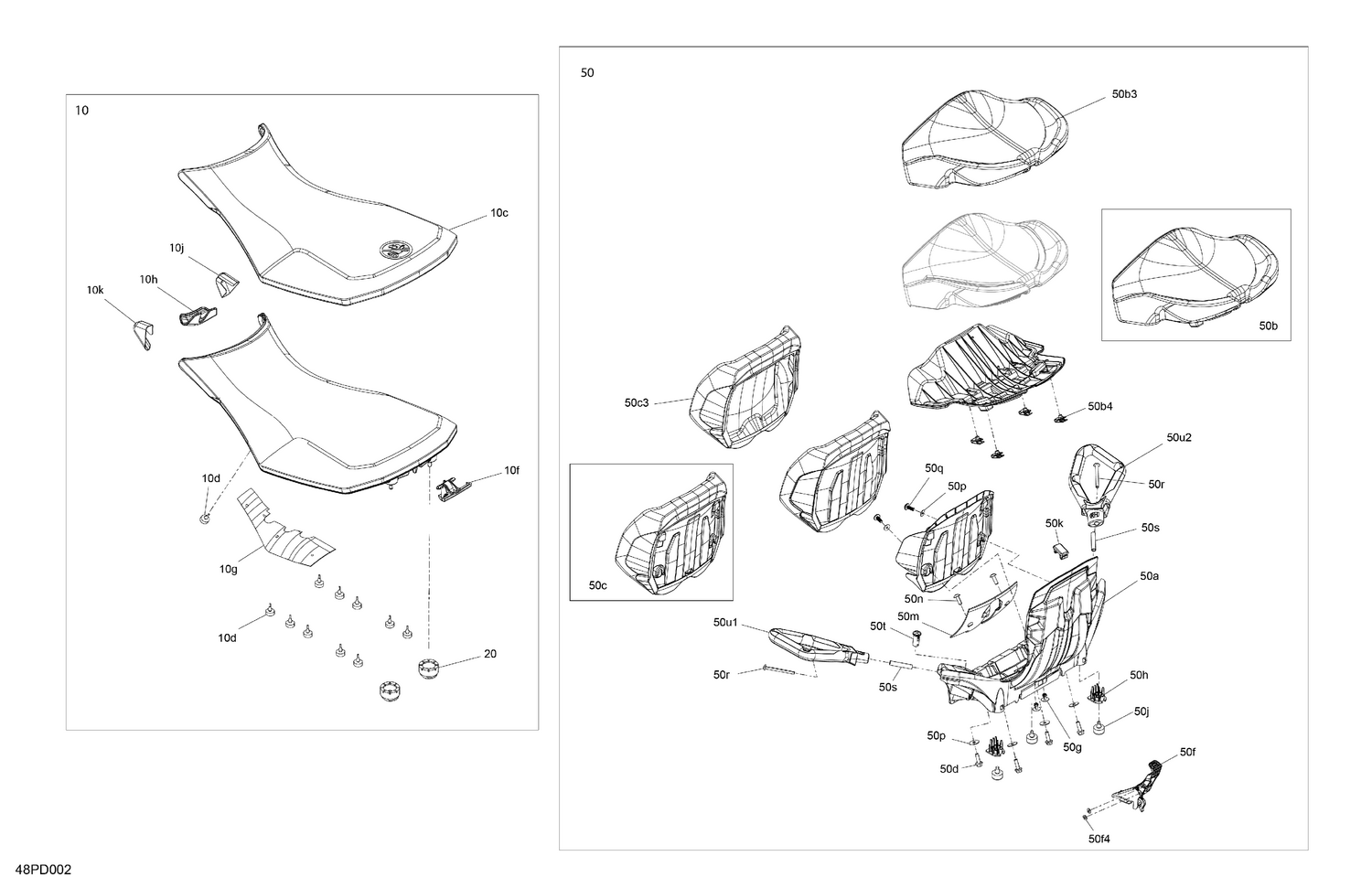

07- Body - Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 708001972 | Seat Cover |
| 10d | 708000759 | Rubber Stopper |
| 10f | 708000909 | Latch |
| 10g | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 10h | 708002077 | Center Seat Corner |
| 10j | 269001669 | RH Seat Corner |
| 10k | 269001670 | LH Seat Corner |
| 20 | 708003609 | Seat Stopper |
| 50a | 708002574 | Seat Base |
| 50b3 | 708001581 | Passenger Seat Cover |
| 50b4 | 250100198 | Panel Nut M6 X 1.0 |
| 50c3 | 708001847 | Back Rest Cover |
| 50d | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 50f4 | 234051410 | Flat Washer M5 |
| 50g | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 50h | 708001483 | Seat Support |
| 50j | 708000758 | Rubber Stopper |
| 50k | 708001511 | Insert |
| 50m | 708001512 | Cap |
| 50n | 250001131 | Torx Truss PT K40 x 12 |
| 50p | 224060201 | Flat Washer |
| 50q | 250000546 | Oval Head Torx Screw K60 X 16 |
| 50r | 250000806 | Torx Truss M8 X 90 |
| 50s | 705009248 | Sleeve |
| 50t | 710003910 | Pilot Lamp Cap |
| 50u1 | 703500806 | LH Passenger Seat Handle Kit |
