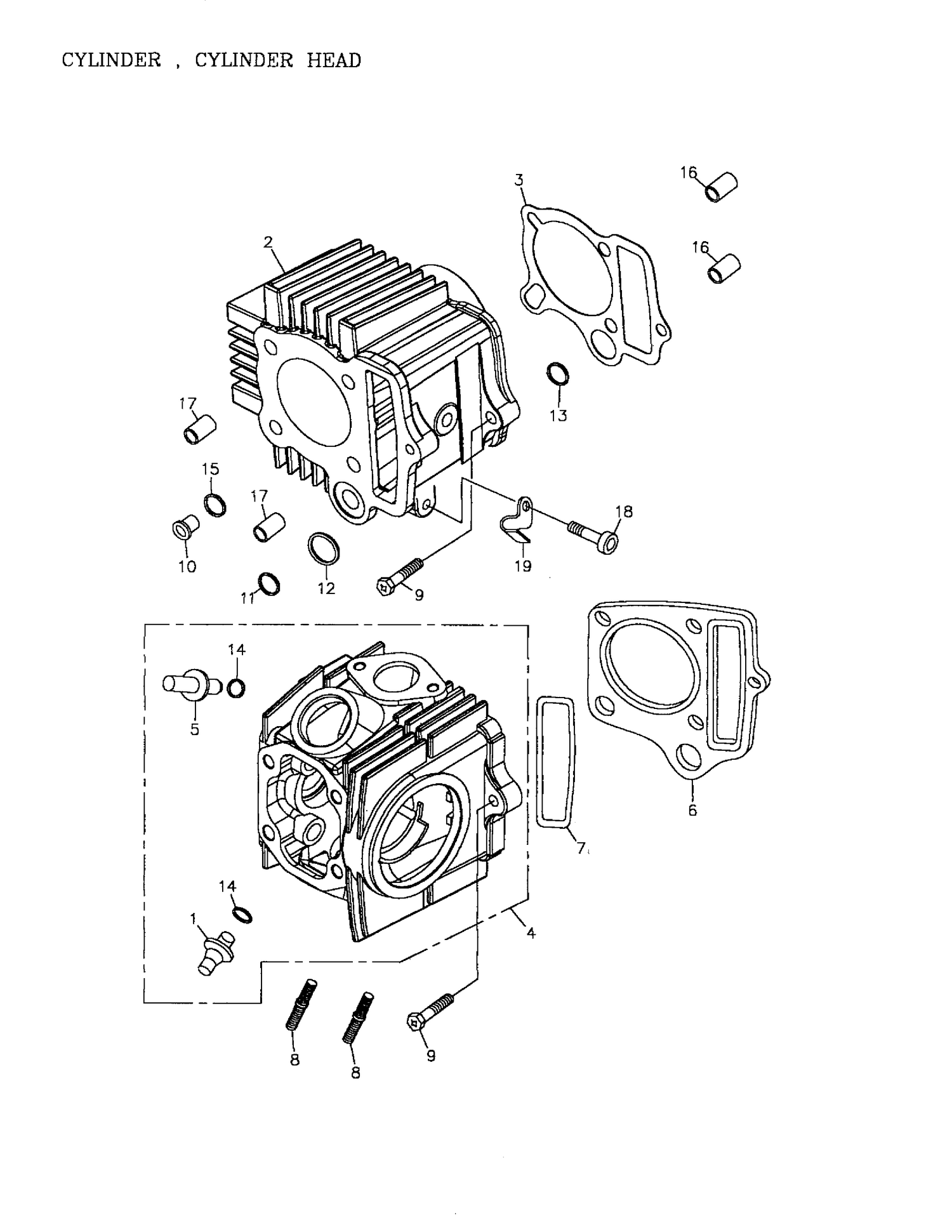

01- Cylinder, Cylinder Head
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A12206152000 | Exhaust Valve Guide |
| 2 | A12101152000 | CYLINDER COMP. - Call your local BRP dealership |
| 3 | A12191152000 | CYLINDER GASKET - Call your local BRP dealership |
| 4 | A12201152000 | Cylinder Head Comp. |
| 5 | A12204152000 | INTAKE VALVE GUIDE - Call your local BRP dealership |
| 6 | A12251152000 | CYLINDER HEAD GASKET - Call your local BRP dealership |
| 8 | A9100106032 | Stud Bolt M6 X 32 |
| 9 | A9100006023 | Hex. Socket Bolt M6 X 23 |
| 10 | A96401060810 | COLLAR - Call your local BRP dealership |
| 11 | A964011114016 | COLLAR - Call your local BRP dealership |
| 12 | A941021619020 | RUBBER GASKET - Call your local BRP dealership |
| 13 | A91314152000 | Oil-Ring |
| 14 | A9130912000A | OIL-RING - Call your local BRP dealership |
| 15 | A941020912015 | RUBBER GASKET - Call your local BRP dealership |
| 16 | A9430108120 | DOWEL PIN - Call your local BRP dealership |
| 17 | A9430108140 | Dowel Pin |
| 18 | A9100006010 | Hex. Socket Bolt M6 X 10 |
