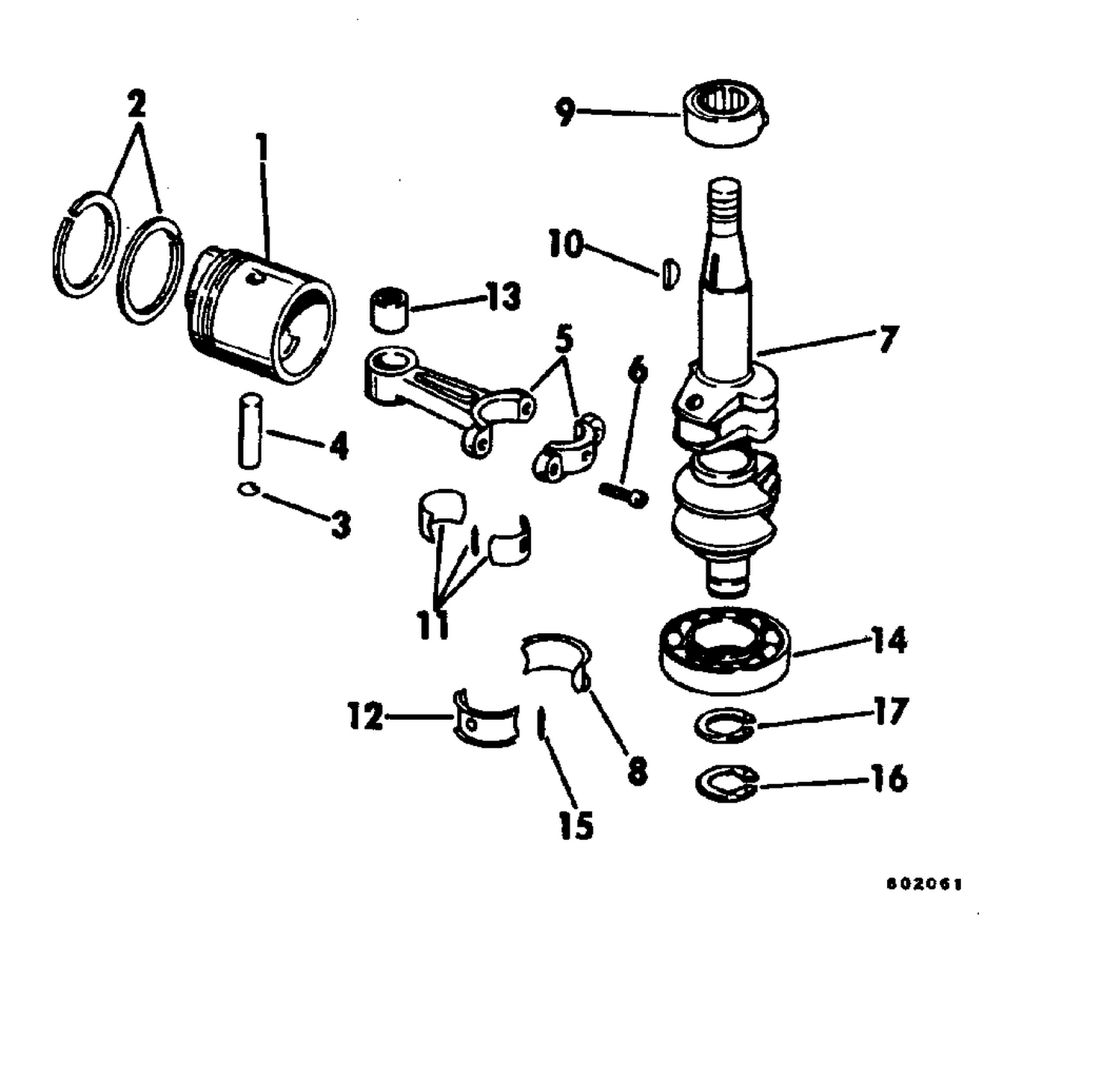

| Ref | Part Number | Description |
|---|
| 1 |
0393732 |
PISTON ASSY., Std. This part replaces 0390233. |
| 1 |
0393799 |
PISTON ASSY., .030 O.S This part replaces 0390084. |
| 2 |
0390082 |
RING SET, Stbd. |
| 2 |
0390083 |
RING SET, .030 O.S. |
| 3 |
0120110 |
RETAING RING |
| 4 |
0328995 |
WRIST PIN This part replaces 0325283. |
| 5 |
0394692 |
CONNECTING ROAD ASSY. This part replaces 0389798. |
| 6 |
0324365 |
SCREW, Rod cap This part replaces 0323002. |
| 7 |
0325279 |
CRANKSHAFT |
| 8 |
0391267 |
LINERS & NEEDLES, Center bearing This part replaces 0325280. |
| 9 |
0386008 |
BEARING ASSEMBLY CRANKSHAFT |
| 10 |
0120395 |
KEY |
| 11 |
0396068 |
LINERS & NEEDLES, Rod This part replaces 0388766. |
| 12 |
0391267 |
LINERS & NEEDLES, Center bearing This part replaces 0325281. |
| 14 |
0388771 |
BALL BEARING |
| 15 |
0391267 |
LINERS & NEEDLES, Center bearing |
| 16 |
0323313 |
RETAINING RING, Crankshaft |
