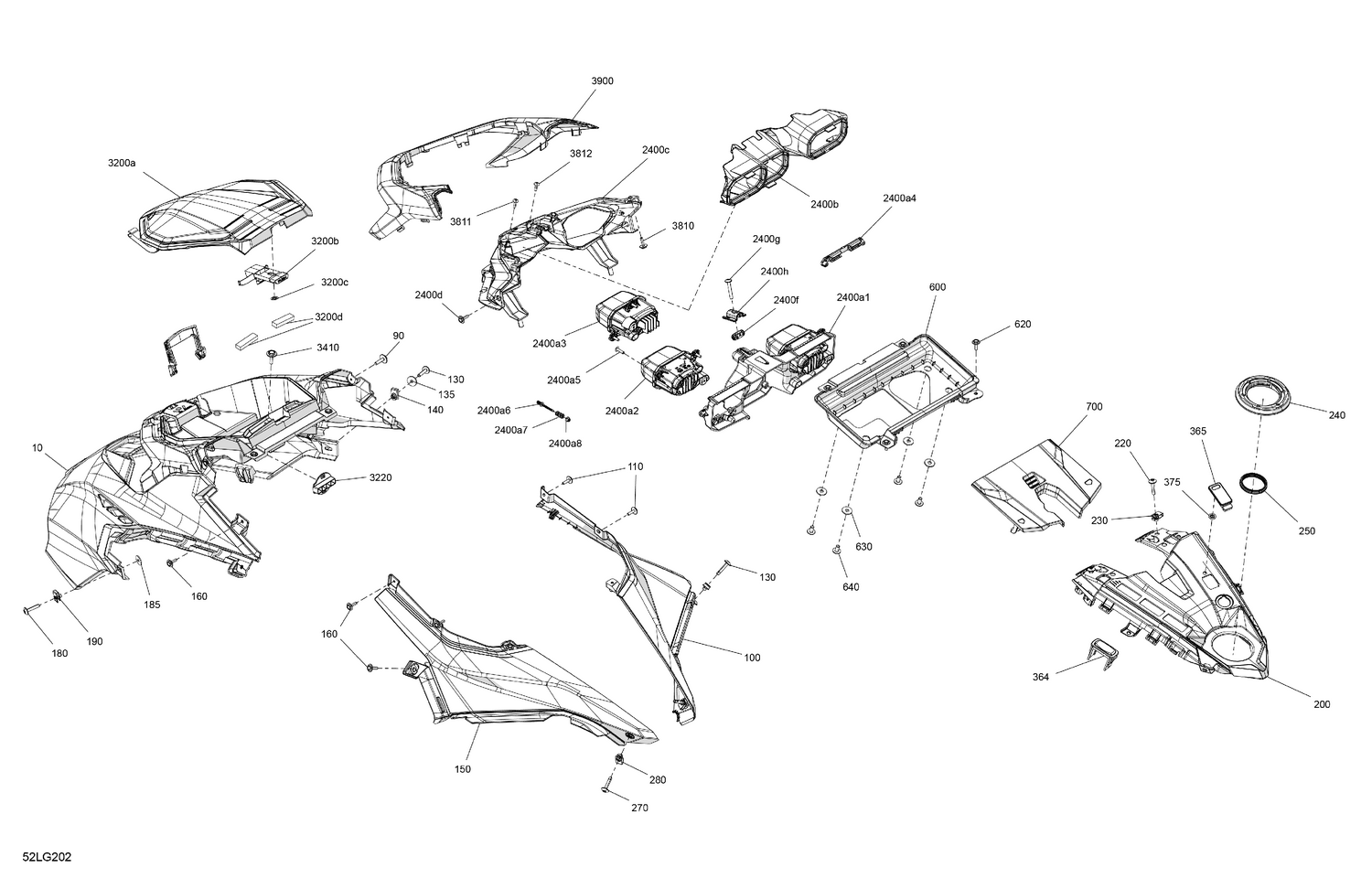

07- Body - Hood Section and WindShield
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517309878 | Hyper Silver, Central Hood |
| 90 | 250000725 | Screw M4 X 16 |
| 100 | 517308176 | Deep Black, RH Rear Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 250200166 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 150 | 517308160 | Deep Black, LH Rear Hood |
| 160 | 250000725 | Screw M4 X 16 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 250200166 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 200 | 517307873 | Deep Black, Rear Console |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517309824 | Round Slotted Nut |
| 250 | 517309450 | Gasket |
| 270 | 250000587 | Torx Screw M5 X 26 |
| 280 | 250000958 | Panel Nut M5 X 0.8 |
| 364 | 517306808 | Switch Hole Cap |
| 365 | 517308261 | Cap |
| 375 | 250100163 | Push Nut |
| 600 | 517307808 | Gauge Support |
| 620 | 250000889 | Screw M4 X 16 |
| 630 | 234062670 | Flat Washer, Stainless |
| 640 | 250000767 | Torx Truss Screw M6 X 12 |
| 700 | 517308112 | Access Cover |
| 2400a1 | 517309006 | Headlight Support |
| 2400a2 | 710008089 | Low Beam Light |
| 2400a3 | 710006911 | High Beam Light |
| 2400a4 | 517309294 | Pivot Support |
| 2400a5 | 250000759 | Torx Truss Pt K40 X 16 |
| 2400a6 | 517309133 | Threaded Rod |
| 2400a7 | 517309058 | Compression Spring |
| 2400a8 | 517309134 | Specialized Nut |
| 2400b | 517308815 | Boot |
| 2400c | 517308163 | Headlight Trim |
| 2400d | 250000725 | Screw M4 X 16 |
| 2400f | 517308229 | Molded Housing Nut |
| 2400g | 250001286 | Torx Screw M5 X 40 |
| 2400h | 517309293 | Clip |
| 3200a | 517309040 | Box Cover |
| 3200b | 517305779 | Latch |
| 3200c | 250100163 | Push Nut |
| 3200d | 517308246 | Joint Seal |
| 3220 | 517308260 | Box Cap |
| 3410 | 250000725 | Screw M4 X 16 |
| 3810 | 250000725 | Screw M4 X 16 |
| 3811 | 250000759 | Torx Truss Pt K40 X 16 |
| 3812 | 250000759 | Torx Truss Pt K40 X 16 |
