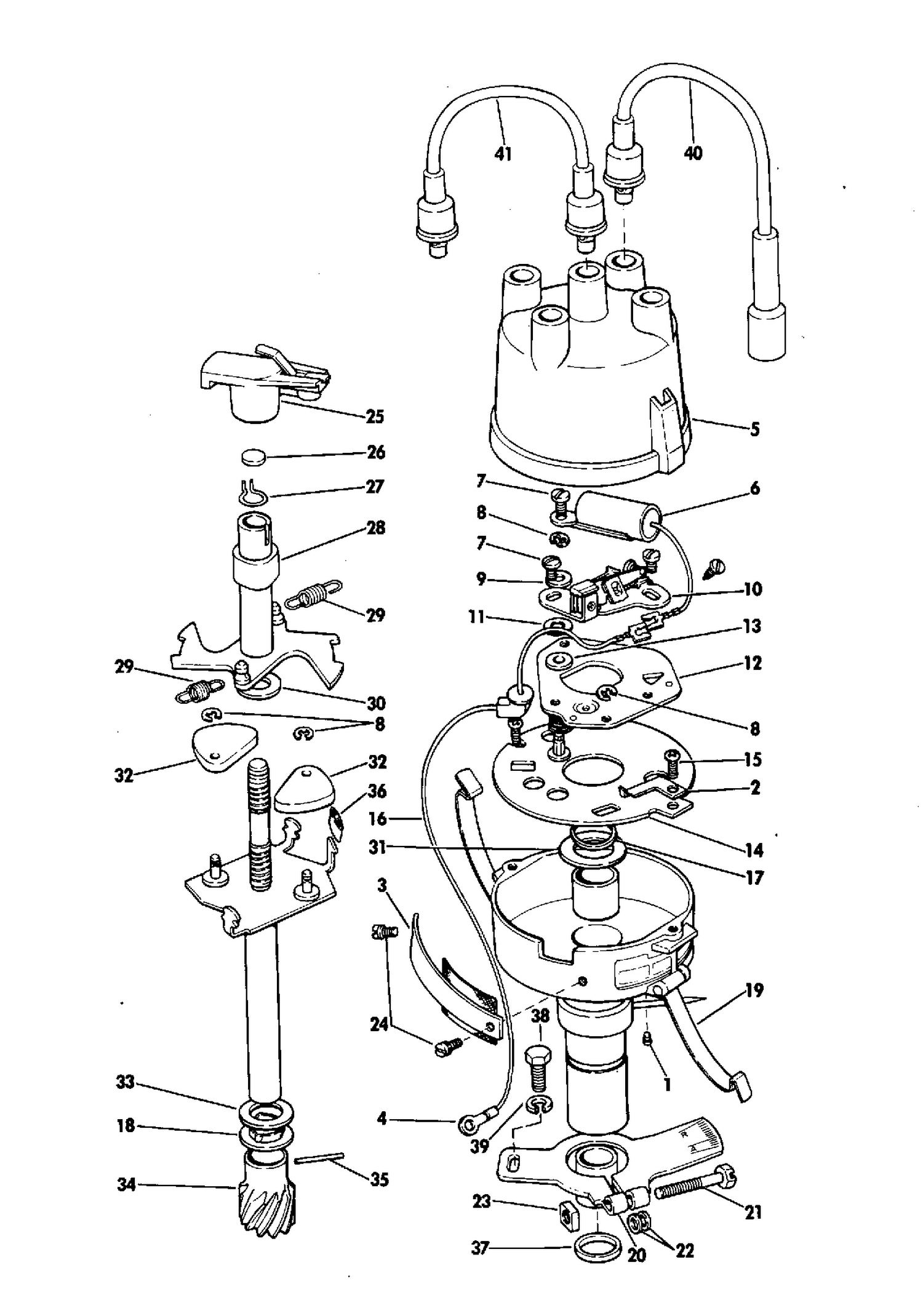

| Ref | Part Number | Description |
|---|
| 1 |
0314201 |
PLUG |
| 2 |
0314202 |
RETAINER,Plate |
| 3 |
0382818 |
PLATE & SCREEN ASSEMBLY |
| 5 |
C6AH-12106-A |
DISTRIBUTOR CAP |
| 6 |
C6AH-12300-A |
CONDENSER |
| 7 |
0BA-12230-A |
SCREW |
| 8 |
379023-S8B |
RETAINER |
| 9 |
381001-S8 |
WASHER |
| 10 |
C6AH-12171-A |
CONTACT POINT SET |
| 11 |
372395-S |
WASHER |
| 12 |
C6AH-12151-A |
PLATE,Upper |
| 13 |
B9AF-12366-A |
BUSHING, Upper plate |
| 14 |
C6AH-12A002-A |
PLATE,Lower |
| 15 |
50257-S7/8 |
SCREW,Plate to body |
| 16 |
C6AH-12216-A |
WIRE, Distributor to coil |
| 17 |
C6AH-12179-A |
WASHER, Nylon |
| 18 |
C6AH-12179-B |
THRUST WASHER, Lower |
| 19 |
7RA-12144-A |
CLAMP, Cap attaching |
| 20 |
C6AH-12273-A |
ARM ASSEMBLY,Timing |
| 21 |
377280-S100 |
BOLT, Timing arm |
| 22 |
377294-S100 |
WASHER |
| 23 |
377296-S100 |
NUT |
| 24 |
50742-S8 |
SCREW,Plate to body |
| 25 |
C6AH-12200-A |
ROTOR ASSEMBLY |
| 26 |
C6AH-12133-A |
WICK, Lubrication |
| 27 |
B7A-12177-A |
RETAINER, Wick |
| 28 |
C6AH-12210-A |
CAM ASSEMBLY |
| 29 |
3014E-12322-A |
SPRING KIT |
| 30 |
379039-S |
THRUST WASHER, Cam |
| 31 |
FAB-12179-B |
THRUST WASHER,Shaft |
| 32 |
C5AF-12189-A |
WEIGHT |
| 33 |
C6AH-12179-C |
SPRING WASHER, Shaft |
| 34 |
C6AH-12390-A |
GEAR, Distributor drive |
| 35 |
67565-S |
PIN, Gear to shaft |
| 36 |
C5NF-12A075-A |
SLEEVE |
| 37 |
204E-12143 |
SAL,Distributor to block |
| 38 |
20308-S7/8 |
BOLT,Distributor mounting |
| 39 |
34905-S8 |
LOCKWASHER |
| 40 |
0580555 |
LEAD ASSEMBLY,#1 and #2 |
| 40 |
0580556 |
LEAD ASSEMBLY,#3 |
| 40 |
0580557 |
LEAD ASSEMBLY,#4 |
| 0383110 |
0383110 |
DISTRIBUTOR ASSEMBLY,Complete |
