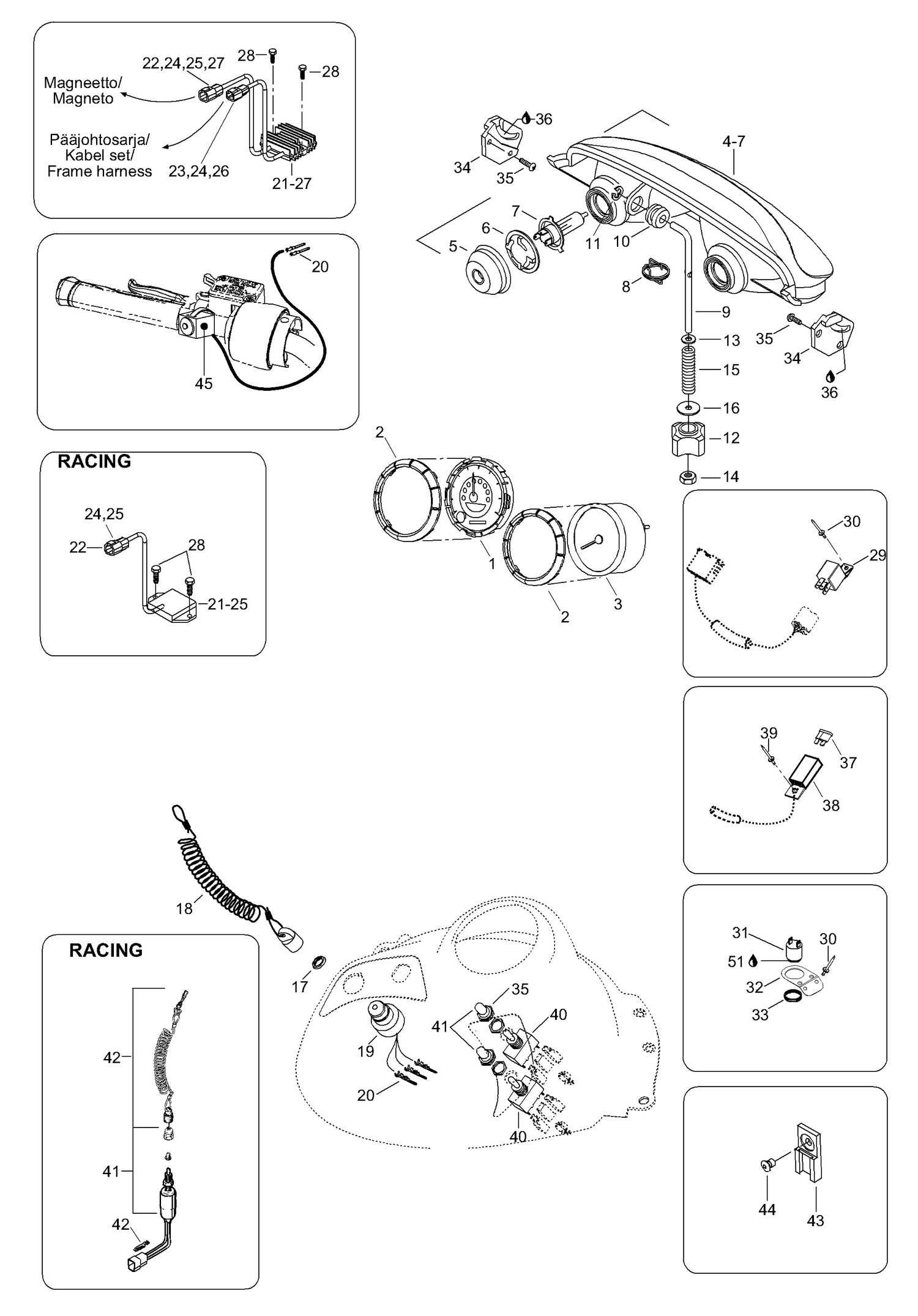

| Ref | Part Number | Description |
|---|
| 1 |
515176000 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176072 |
Tachometer |
| 5 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 6 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 8 |
5447238 |
Spring |
| 9 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 10 |
415100800 |
Grommet - Call your local BRP dealership |
| 11 |
732610072 |
Push Nut |
| 12 |
515175548 |
Handle - Call your local BRP dealership |
| 13 |
20038 |
Washer |
| 14 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 15 |
415100600 |
SPRING - Call your local BRP dealership |
| 16 |
20003 |
Washer |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 |
515178284 |
Dess. This part replaces 515166900. |
| 19 |
515175145 |
DESS SWITCH - Call your local BRP dealership |
| 20 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 22 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 23 |
278001674 |
Female terminal hous. |
| 24 |
515175568 |
Male terminal |
| 25 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 26 |
278001672 |
Wedge (2) |
| 27 |
293000052 |
Sealing Cap |
| 28 |
40377 |
Screw M6 x 20 |
| 29 |
710010053 |
RELAY This part replaces 410113200. |
| 30 |
36005 |
Rivet |
| 31 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 32 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 33 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 34 |
517289300 |
R.H. headlamp support |
| 34 |
517289400 |
L.H. headlamp support |
| 35 |
40177 |
Headlamp screw |
| 36 |
413707500 |
Grease tube LMZ 400 g |
| 37 |
409003900 |
Fuse 20 A This part replaces 278001143. |
| 38 |
42272 |
Housing, fuse |
| 39 |
36491 |
Rivet |
| 40 |
Not |
Available As Spare Part - Switch - DOES NOT APPLY TO THIS MODEL |
| 41 |
Not |
Available As Spare Part - Rubber cover for switch - DOES NOT APPLY TO THIS MODEL |
| 42 |
Not |
Available As Spare Part - Switch cap assy - DOES NOT APPLY TO THIS MODEL |
| 43 |
270000141 |
Clip |
| 44 |
36005 |
Rivet |
| 45 |
Not |
Available As Spare Part - Start-knob - DOES NOT APPLY TO THIS MODEL |
