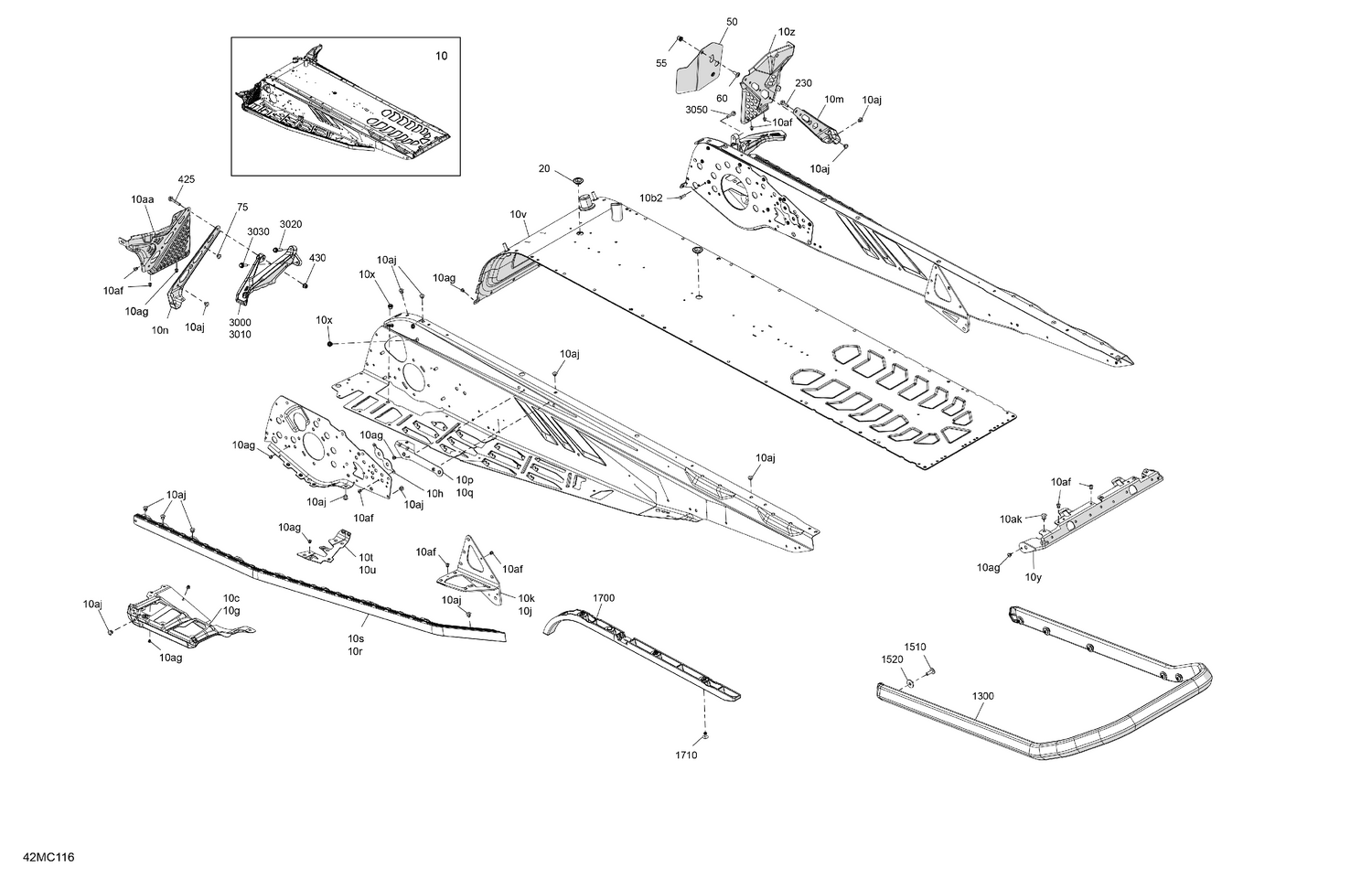

06- Frame - System - Rear Section
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518334305 | LH Foot Protector This part replaces 518331559. |
| 10af | 390909100 | Avex Rivet |
| 10ag | 390909200 | Avex Rivet |
| 10aj | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10ak | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10b2 | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518331523 | Deep Black, LH Footrest Reinforcement |
| 10g | 518330738 | Deep Black, RH Footrest Reinforcement |
| 10h | 518327233 | Front Suspension Arm Reinforcement |
| 10j | 518329622 | RH Suspension Bracket This part replaces 518329622. |
| 10k | 518332310 | LH Rear Suspension Arm Anchorange |
| 10m | 518334507 | Stirrup Reinforcement |
| 10n | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10p | 518331744 | LH Under Chassis Reinforcement |
| 10q | 518331745 | RH Under Chassis Reinforcement |
| 10r | 518328451 | RH Roller |
| 10s | 518328452 | LH Roller |
| 10t | 518332296 | LH Footrest Reinforcement |
| 10u | 518332297 | RH Footrest Reinforcement |
| 10v | 518334488 | Radiator Tunnel 137 Ass'y |
| 10x | 605636003 | Clinch Nut M6 Hexsert |
| 10y | 518328990 | Rear Cap |
| 10z | 518330691 | RH Footrest |
| 20 | 293730052 | Black, Plug |
| 50 | 518331823 | Heat Shield |
| 55 | 293450275 | Insert |
| 60 | 250000717 | Torx Head Screw M6 X 16 |
| 75 | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207663546 | Hex. Flange Screw M6 x 35 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518330033 | Rear Bumper |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3000 | 518330358 | Black Toe-hold |
| 3010 | 518329134 | Toe Hold |
| 3020 | 250000793 | Hex. Flange Screw M6 X 25 |
| 3030 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
