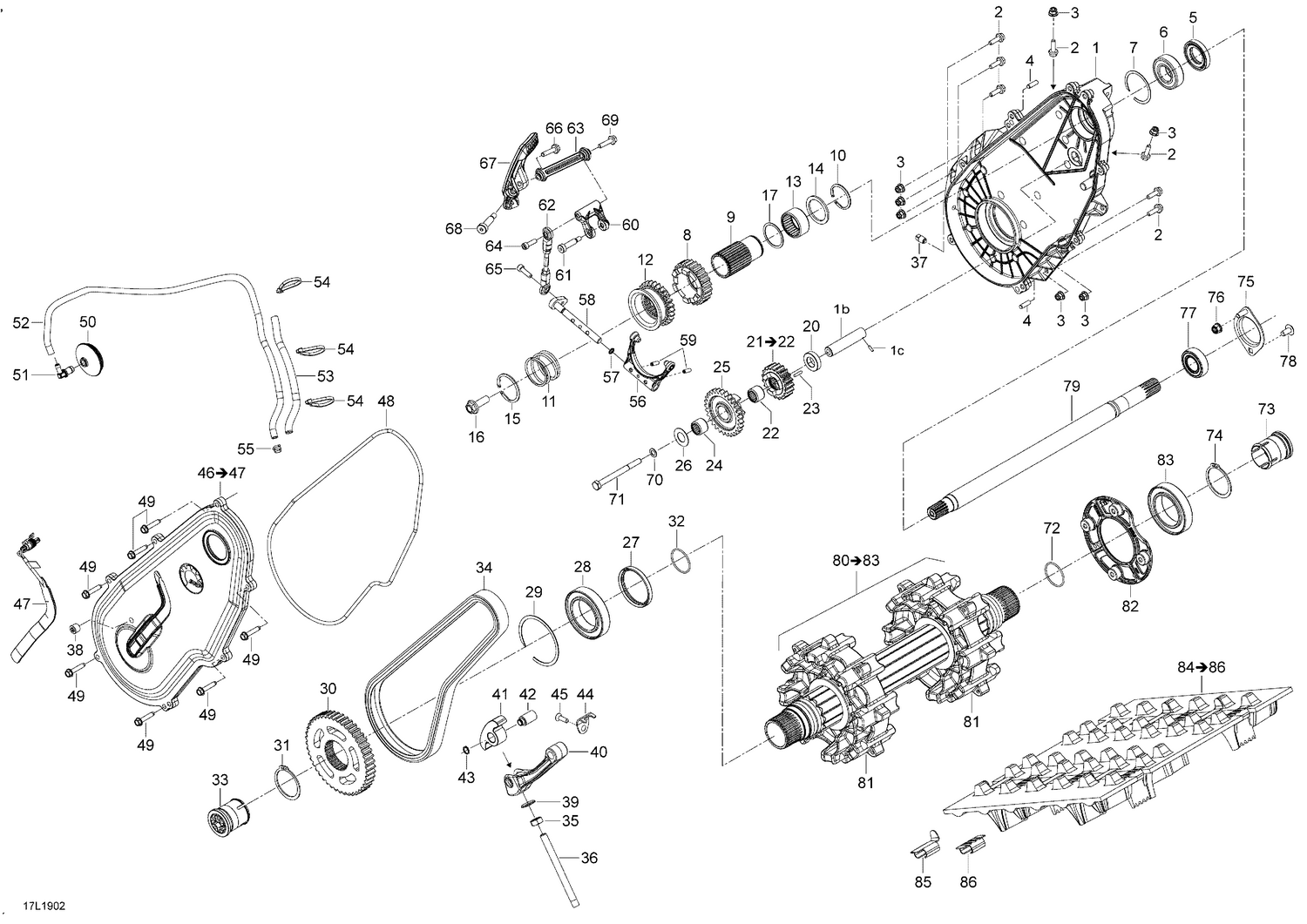

| Ref | Part Number | Description |
|---|
| 1a |
518325816 |
Skruv platta för montering |
| 1b |
504083100 |
Reverse shaft |
| 1c |
250400010 |
Rolled Pin M3 X 10 |
| 4 |
250400048 |
Dowel Pin |
| 5 |
293200168 |
Oil Seal |
| 6 |
293350115 |
Ball Bearing |
| 7 |
504152576 |
Circlip |
| 8 |
504152927 |
Sprocket, 21 Teeth |
| 9 |
504152979 |
Coupling |
| 10 |
293370054 |
Circlip |
| 11 |
504153179 |
Release Spring |
| 12 |
504152960 |
Slinding Gear, 27 Teeth |
| 13 |
293350063 |
Needle Bearing |
| 14 |
504152689 |
Washer |
| 15 |
293370055 |
Circlip |
| 16 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 19 |
504152862 |
Washer |
| 20 |
504078700 |
Ring |
| 21 |
581096900 |
Sprocket Ass'y, 19 Teeth |
| 23 |
570048600 |
Alignement Rod |
| 24 |
293350064 |
Needle Bearing |
| 25 |
504152724 |
Sprocket, 29 Teeth |
| 26 |
504077300 |
Trust washer |
| 27 |
293200159 |
Oil Seal |
| 28 |
293350059 |
Ball Bearing |
| 29 |
504152582 |
Circlip |
| 30 |
861805540 |
Kit Sprocket This part replaces 504152971. |
| 31 |
504152572 |
Circlip |
| 32 |
293300122 |
O-rengas |
| 33 |
504152619 |
Magnetic Adaptor |
| 34 |
504152630 |
Drive Chain (106 Links) |
| 35 |
232006414 |
Hex. Nut M10 X 1.5 |
| 36 |
504152602 |
Adjustment Screw |
| 37 |
504152854 |
Magnetic Plug 1/8 - 27 NPTF |
| 38 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 39 |
293200128 |
Seal Ring Usit |
| 40 |
504153431 |
Chaine Tensionner |
| 41 |
504152739 |
Kedja styrare |
| 42 |
504152841 |
Tensionner Axle |
| 43 |
504152282 |
Lukkorengas |
| 44 |
504153122 |
Chain Slider |
| 45 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 46 |
504153412 |
Black Chaincase Cover Ass'y |
| 48 |
293300188 |
O Ring |
| 49 |
210263050 |
Hex. HD Forming Screw M6 x 30 |
| 54 |
414115200 |
Tie-Rap 180 mm |
| 55 |
414554800 |
Jousikiristin |
| 56 |
504153432 |
Fork Ass'y |
| 57 |
414484400 |
O-rengas,ruskea Parker 2-010 V |
| 58 |
504152956 |
Welded Axel Fork |
| 59 |
250400045 |
Spring Pin M5 X 16 |
| 60 |
504153427 |
Lever |
| 61 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 62 |
504152951 |
Ball Joint |
| 63 |
504152710 |
Double Ball Joint |
| 64 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 65 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 66 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 67 |
504153174 |
Grip |
| 68 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 69 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 70 |
504082900 |
Washer |
| 71 |
207089044 |
Hex. Screw M8 X 90 |
| 72 |
293300122 |
O-rengas |
| 73 |
504152619 |
Magnetic Adaptor |
| 74 |
504152572 |
Circlip |
| 75 |
504153187 |
Bearing Housing |
| 76 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 77 |
293350074 |
Ball Bearing |
| 78 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 79 |
504153000 |
Counter Shaft |
| 80a |
504154054 |
Drive Axle Ass'Y This part replaces 504153085. |
| 82 |
504153886 |
Retaining Ring This part replaces 504153426. |
| 83 |
293350059 |
Ball Bearing |
| 85 |
415129528 |
Track Guide |
| 87 |
504152929 |
Cap Ass'y |
| 88 |
504153074 |
Tube Protector This part replaces 504152900. |
