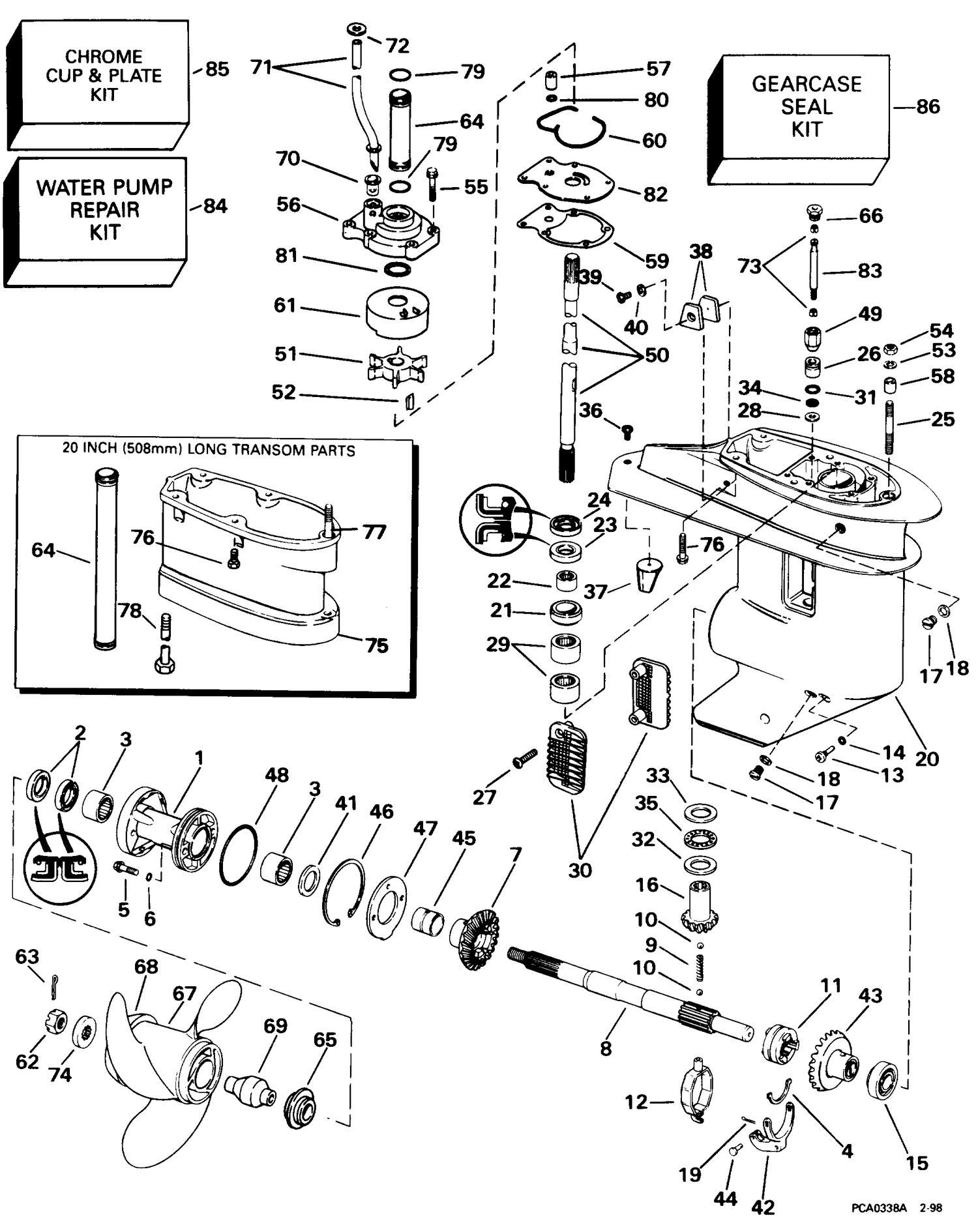

| Ref | Part Number | Description |
|---|
| 1 |
5008160 |
LOGEMENT DE ROULEMENT & JOINT This part replaces 0433428. |
| 34 |
0301877 |
O RING SHIFT ROD |
| 49 |
0331465 |
NUT, Shift rod connector |
| 50 |
0341635 |
DRIVESHAFT This part replaces 0341636. |
| 64 |
0326692 |
SPACER, Impeller housing |
| 66 |
0325624 |
CONNECTOR, Shift rod |
| 67 |
0778863 |
PROPELLER This part replaces 0175191. |
| 71 |
0395339 |
WATER TUBE |
| 73 |
0325625 |
KEEPER, Shift rod |
| 76 |
0328333 |
SCREW |
| 80 |
0301877 |
O RING SHIFT ROD |
| 82 |
0328772 |
PLATEAU, carter de turbine, chrome |
| 83 |
0331479 |
PIN, Cam follower |
| 84 |
0393630 |
WATER PUMP REPAIR KIT (Includes impeller housing) |
| 85 |
0394415 |
CHROME CUP & PLATE KIT This part replaces 0393262. |
| 0396707 |
0396707 |
EXTENSION KIT ASSY |
| 0434763 |
0434763 |
GEARCASE Assy, (Less driveshaft) |
