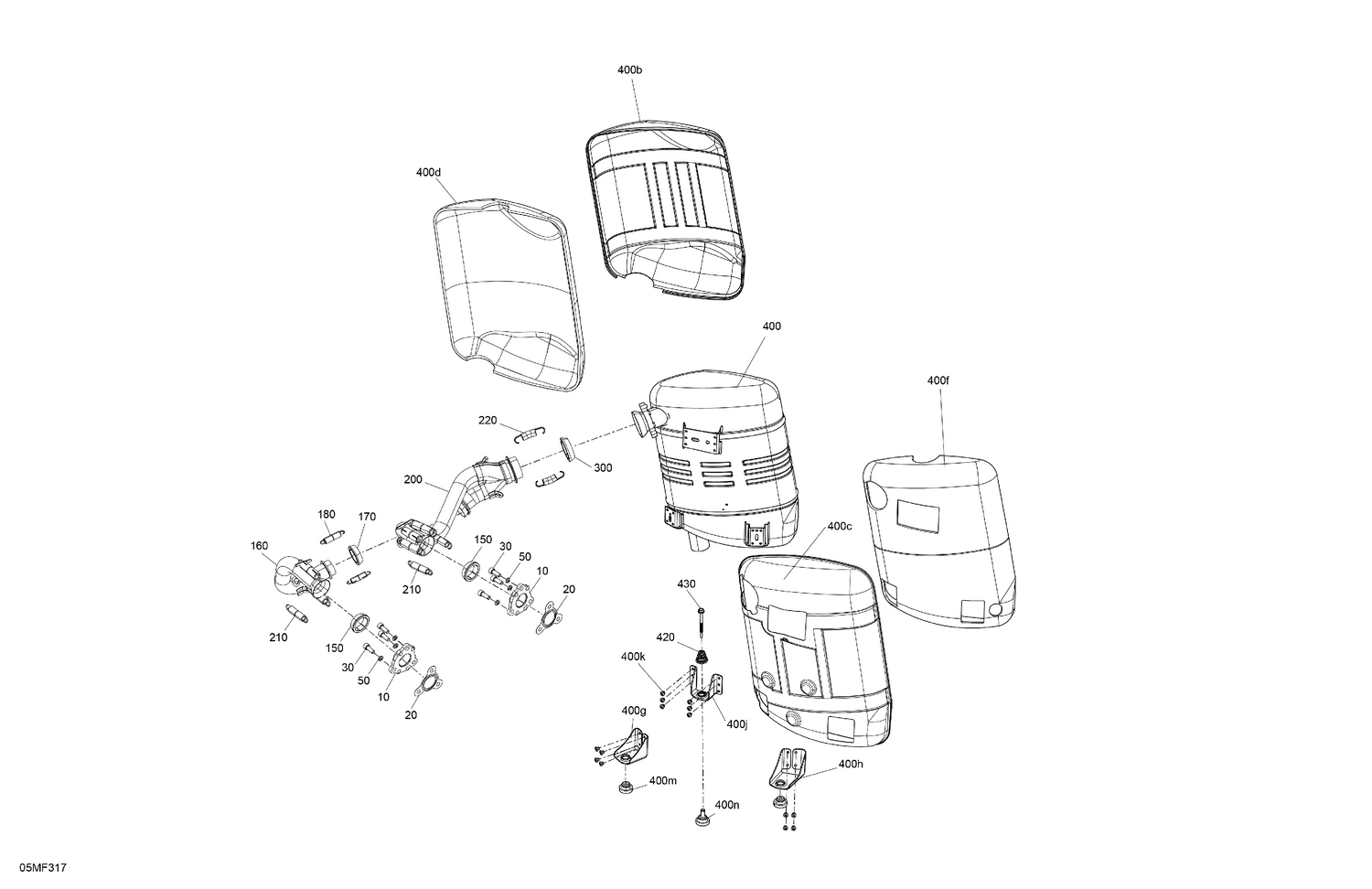

02- Engine - Exhaust
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 514054673 | Exhaust Manifold |
| 20 | 514055112 | Gasket |
| 30 | 250000414 | Socket Head Screw M8 X 22 |
| 50 | 250200111 | Washer |
| 150 | 514054807 | Exhaust Gasket |
| 160 | 514055778 | Pipe |
| 170 | 514054807 | Exhaust Gasket |
| 180 | 707601834 | Spring |
| 200 | 514055605 | Exhaust Pipe |
| 210 | 707601834 | Spring |
| 220 | 514056279 | Spring |
| 300 | 707601033 | Exhaust Gasket |
| 400b | 514055981 | RH Deflector |
| 400c | 514056330 | LH Deflector |
| 400d | 514056353 | Glass Wool |
| 400f | 514056354 | Glass Wool |
| 400g | 514056022 | Front Muffler Support |
| 400h | 514056038 | Rear Muffler Support |
| 400j | 514056055 | Support |
| 400k | 293150293 | Pop Rivet 3/16 X ,425 |
| 400m | 514055203 | Stopper |
| 400n | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
