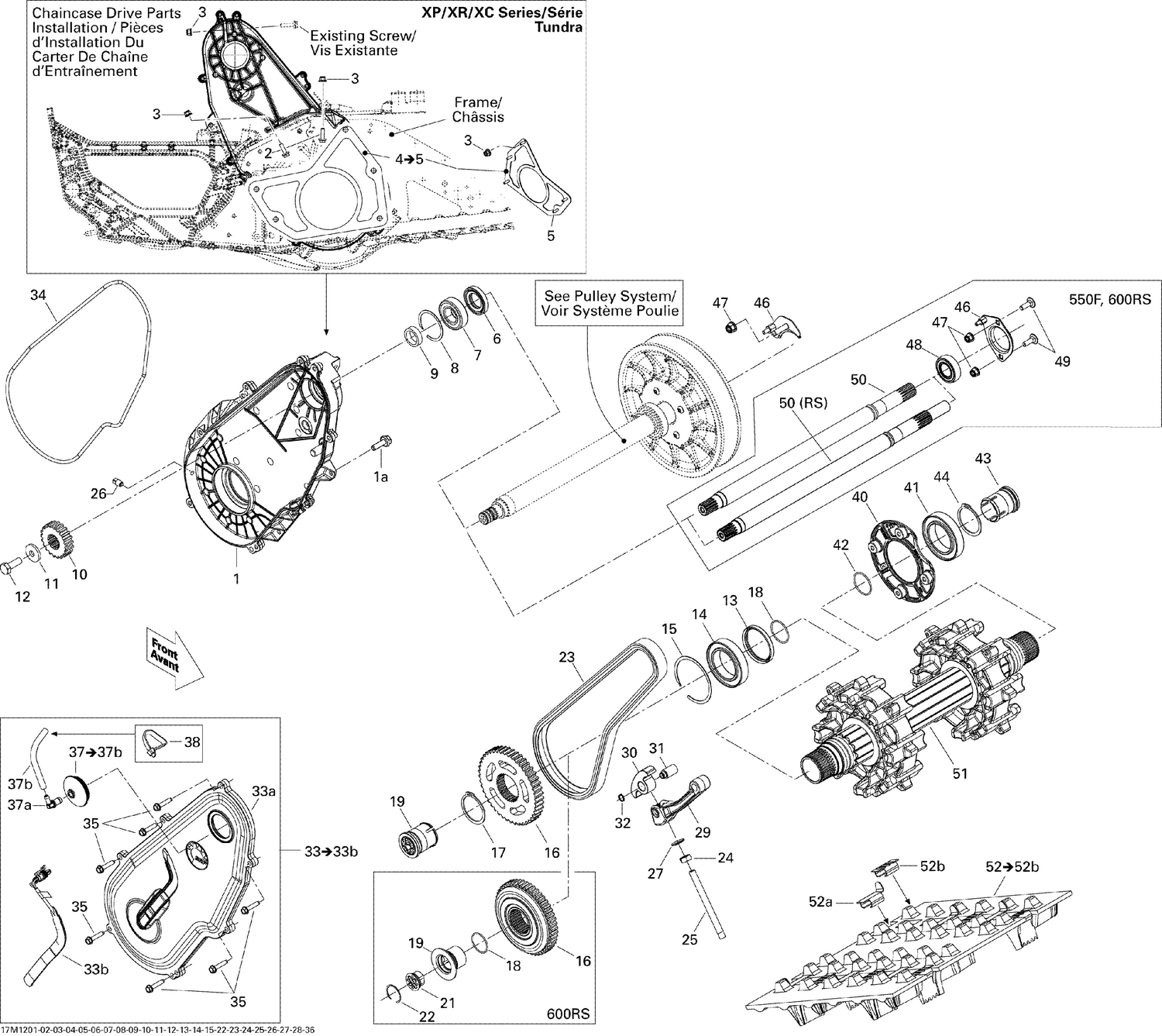

05- Drive System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153181 | Chaincase This part replaces 504152914. |
| 1a | XXX | Not Available As Spare Parts |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 233261434 | Flange Elastic Nut M6 |
| 5 | Not | Available As Spare Part - Clinch Stud M6 X 20 |
| 6 | 293200168 | Oil Seal This part replaces 293250175. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | 504152628 | Shim |
| 11 | 504152784 | Spring Washer M10 |
| 12 | 207103044 | Hex. Screw M10 X 30 |
| 13 | 293200159 | Oil Seal This part replaces 504152571. |
| 14 | 293350059 | Ball Bearing |
| 15 | 504152582 | Circlip |
| 17 | 504152572 | Circlip |
| 18 | 293300122 | O-Ring |
| 19 | 504152619 | Magnetic Cap |
| 21 | XXX | Not Available As Spare Parts |
| 22 | XXX | Not Available As Spare Parts |
| 24 | 232006414 | Hex. Nut M10 X 1.5 |
| 25 | 504152602 | Adjustment Screw |
| 26 | 504152636 | Magnetic Plug 1/8 - 27 NPTF |
| 27 | 250200100 | Bonded Washer |
| 29 | 504153429 | Tensioner chain This part replaces 504152685. |
| 30 | 504152739 | Slider Chain This part replaces 504153031. |
| 31 | 504152841 | Tensioner Axle |
| 32 | 504152282 | Circlip |
| 33a | 504153151 | Casting Cover This part replaces 504152917. |
| 33b | 504152896 | Rotation Sensor |
| 34 | 293300130 | Tight Seal |
| 35 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 37a | 414580700 | Male Connector |
| 37b | 219704410 | Polyurethane Hose 10000Mm Long |
| 38 | XXX | Not Available As Spare Parts |
| 40 | 504153886 | Retaining Ring This part replaces 504152949. |
| 41 | 293350059 | Ball Bearing |
| 42 | 293300122 | O-Ring |
| 43 | 504152619 | Magnetic Cap |
| 44 | 504152572 | Circlip |
| 46 | 504153089 | BEARING HOUSING ASS'Y - Call your local BRP dealership |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
| 48 | 293350074 | Ball Bearing |
| 49 | 207783044 | Carriage Bolt M8 X 30 |
| 50 | 504153000 | Countershaft |
| 51 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 52a | 415129528 | Track Guide |
