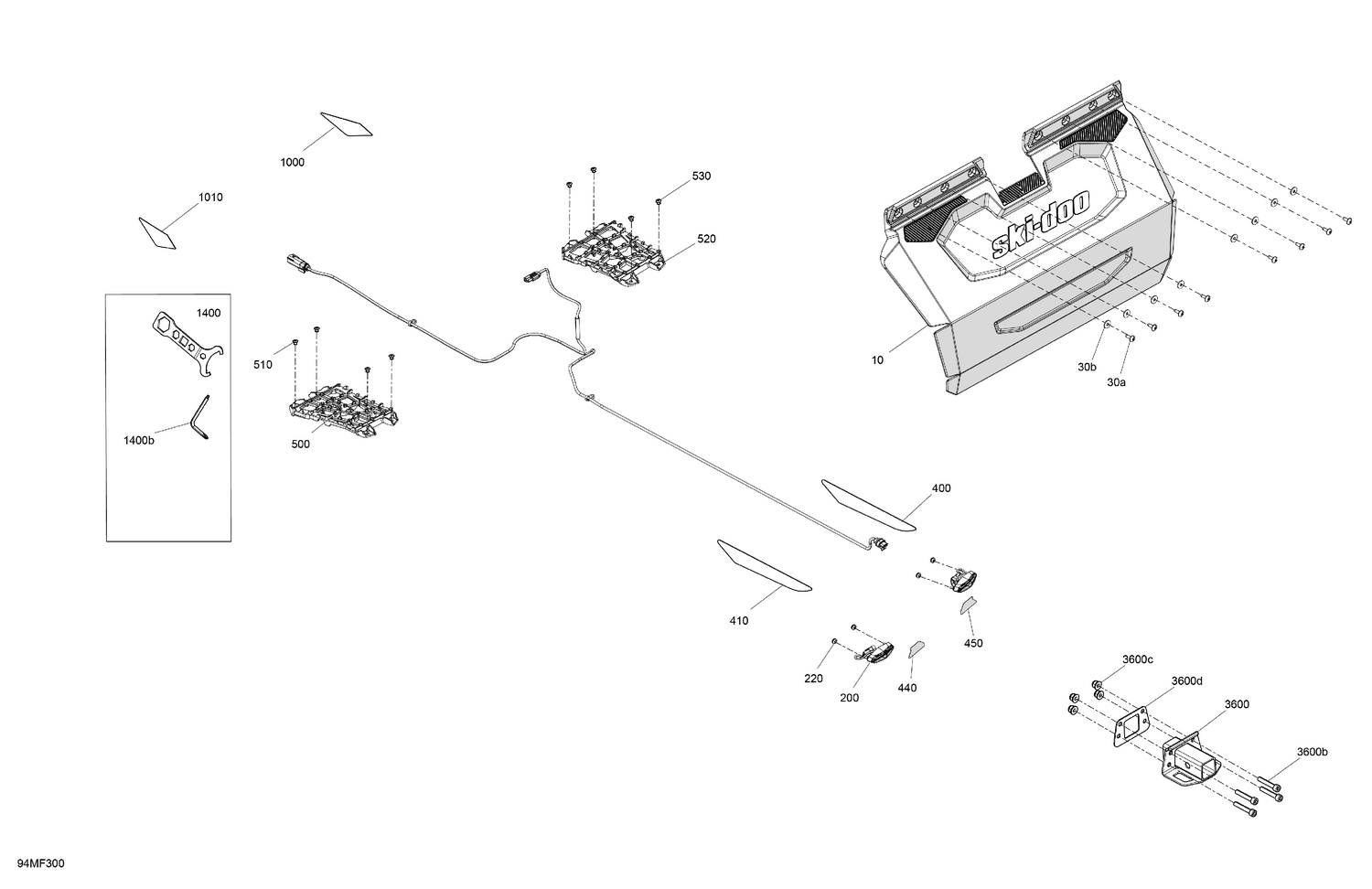

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001736 | Snow Guard 24" |
| 30a | 250000676 | Forming Screw M5 x 16 |
| 30b | 250200025 | Washer M5 |
| 200 | 520003071 | Taillight |
| 220 | 293720101 | Grommet |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 500 | 520003338 | Passenger Footrest |
| 510 | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 520 | 520003338 | Passenger Footrest |
| 530 | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3600b | 250001086 | Socket Head Screw M8 x 45 |
| 3600c | 233281466 | Elastic Flange Nut M8 |
