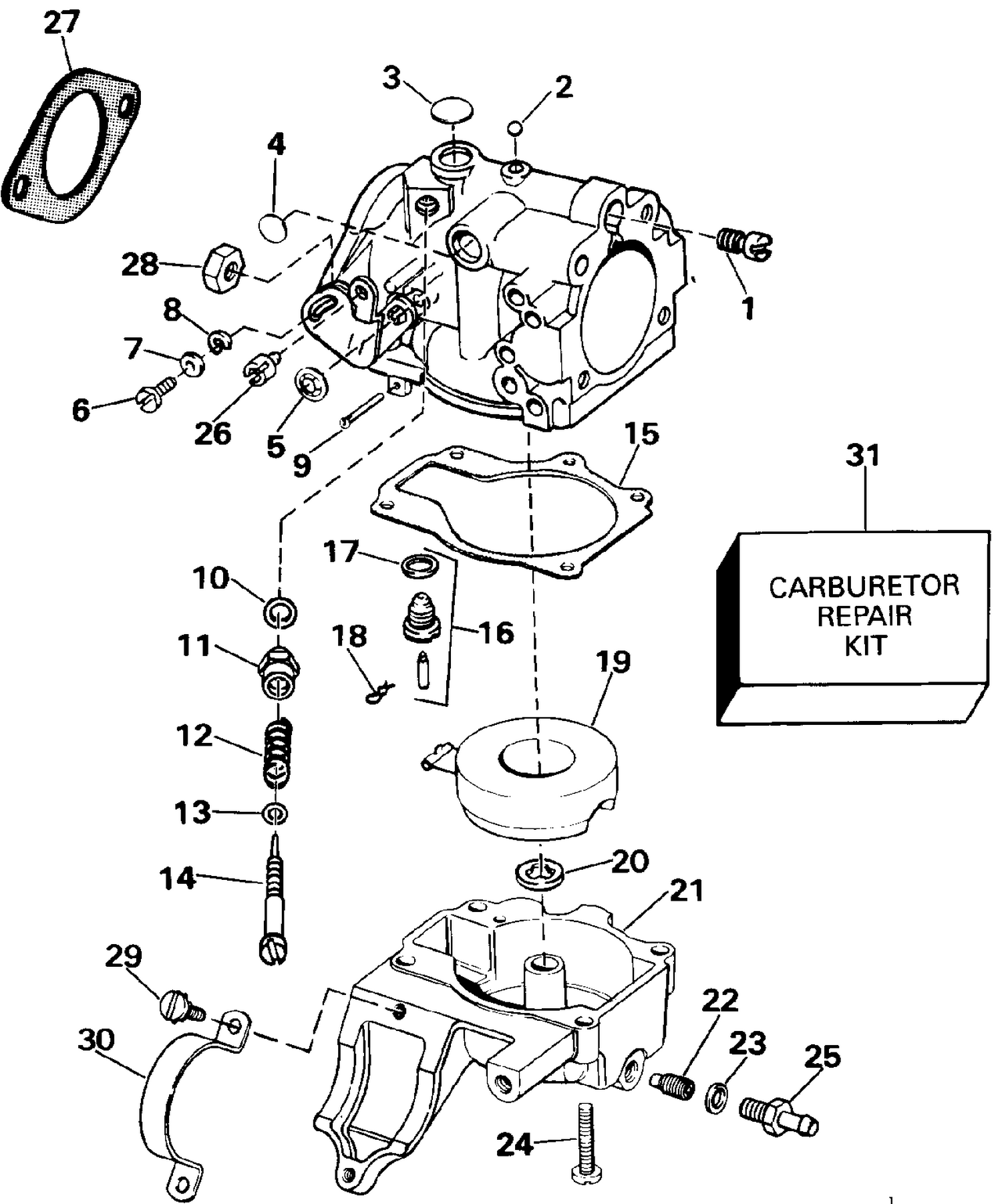

CARBURETOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0326928 | ORIFICE PLUG (#55) |
| 14 | 0335014 | NEEDLE VALVE, Slow speed |
| 18 | 0336842 | CLIP, SPRING |
| 21 | 0439383 | FLOAT CHAMBER This part replaces 0393131. |
| 24 | 0329513 | SCREW, Float bowl |
| 26 | 0313329 | LOCKWASHER, Carburetor link |
| 27 | 0325092 | GASKET |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0329594 | SCREW, Cam follower |
| 30 | 0328907 | COLLIER, amorçage vers support |
| 0434622 | 0434622 | CARBURETOR ASSY. |
