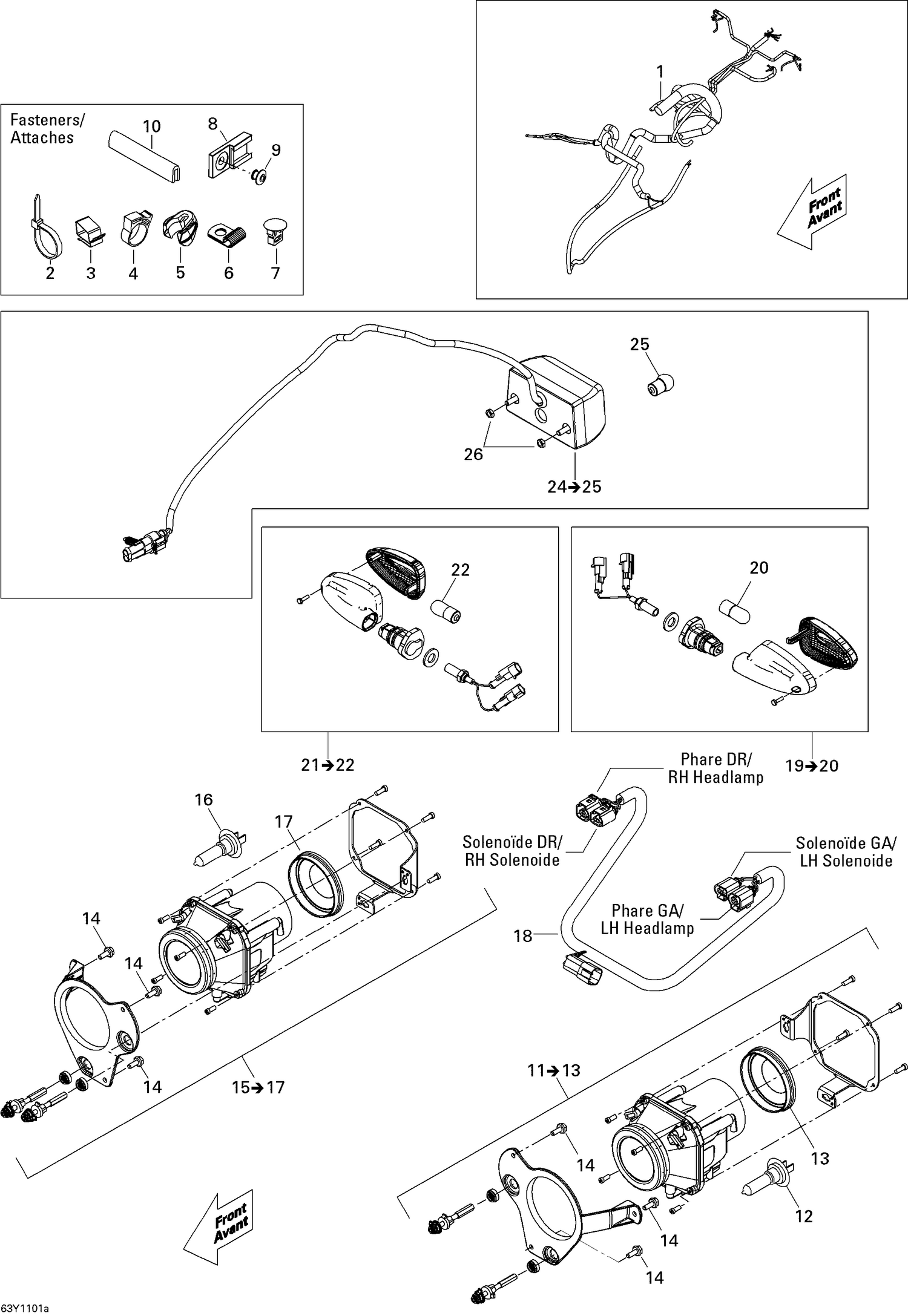

10- Lighting System SE5
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 293750008 | Tie Wrap 368 mm |
| 2 | 414115200 | Tie-Rap 180 mm |
| 4 | 293650082 | Clamp |
| 5 | 710001452 | WIRE BRACKET - Call your local BRP dealership |
| 6 | 415052400 | Bracket |
| 7 | 293750044 | Tie Rap Mount |
| 8 | 270000141 | Clip |
| 9 | 390402400 | Pop Rivet 3/16" |
| 10 | 219704354 | Trim 1000Mm Long |
| 12 | 219400069 | Halogen Bulb |
| 13 | 219400070 | Cap |
| 14 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 16 | 219400069 | Halogen Bulb |
| 17 | 219400070 | Cap |
| 18 | 710000792 | BEAM HARNESS ASS'Y - Call your local BRP dealership |
| 20 | 219800039 | Bulb 12V/10W, Amber |
| 22 | 219800039 | Bulb 12V/10W, Amber |
| 25 | 415129261 | Bulb 12V 10W |
