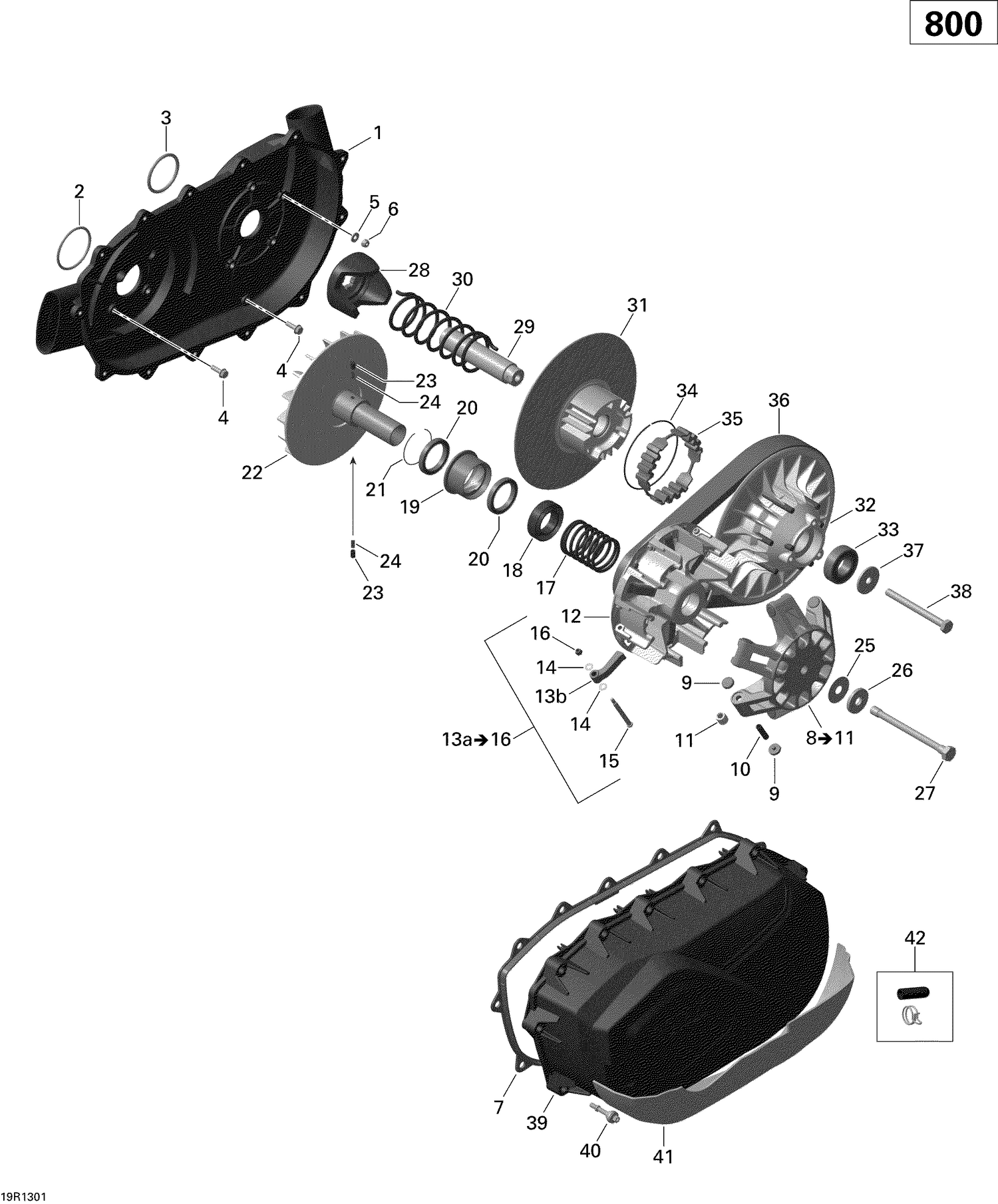

05- Transmission
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420612304 | CVT Air Guide This part replaces 420611408. |
| 2 | 420430409 | O-Ring This part replaces 420430408. |
| 3 | 420631089 | O-Ring This part replaces 420631088. |
| 4 | 420441311 | Hex.Screw M6 X 20 |
| 5 | 224061121 | Flat Washer |
| 6 | 232561414 | Elastic Stop Nut M6 |
| 7 | 420430126 | Gasket |
| 9 | 420281296 | Slider Shoe Set |
| 10 | 417223257 | Roller Axle |
| 11 | 417223767 | Roller This part replaces 417223387. |
| 12 | 420280467 | Outer Haft |
| 13b | Not | Available As Spare Part - Lever |
| 14 | Not | Available As Spare Part - Thrust Washer |
| 15 | Not | Available As Spare Part - Screw |
| 16 | Not | Available As Spare Part - Lock Nut M5 |
| 17 | 420238615 | Compression Spring, Drive Pulley |
| 18 | 420627578 | Seat Spring This part replaces 420627577. |
| 19 | 420257195 | Drive Pulley Clutch |
| 20 | 420632377 | Ball Bearing |
| 21 | 420245951 | Retaining Ring |
| 22 | 420280374 | Inner Half |
| 23 | 420229577 | Spring Sleeve |
| 24 | 420239134 | Spring |
| 25 | 420627920 | Thrust Washer |
| 26 | 420627768 | Spring Washer This part replaces 420627765. |
| 27 | 420641859 | Hex. Screw M12 X 140 This part replaces 420641855. |
| 28 | 420280473 | Cam This part replaces 420280472. |
| 29 | 420220914 | Driven Pulley Shaft |
| 30 | 420638040 | Compression Spring |
| 31 | 420280499 | Inner Half Ass'y |
| 33 | 420932421 | Ball Bearing |
| 34 | 420245911 | Retaining Ring This part replaces 420245910. |
| 35 | 420660124 | Torque Gear |
| 36 | 422280366 | V-Belt This part replaces 715000302. |
| 37 | 420627594 | Thrust Washer This part replaces 420627590. |
| 38 | 420441485 | Hex. Screw M10 X 110 This part replaces 420441480. |
| 39 | 420611397 | Variator Cover This part replaces 420611395. |
| 40 | 420440568 | Hex Screw M6 X 30 This part replaces 420440567. |
