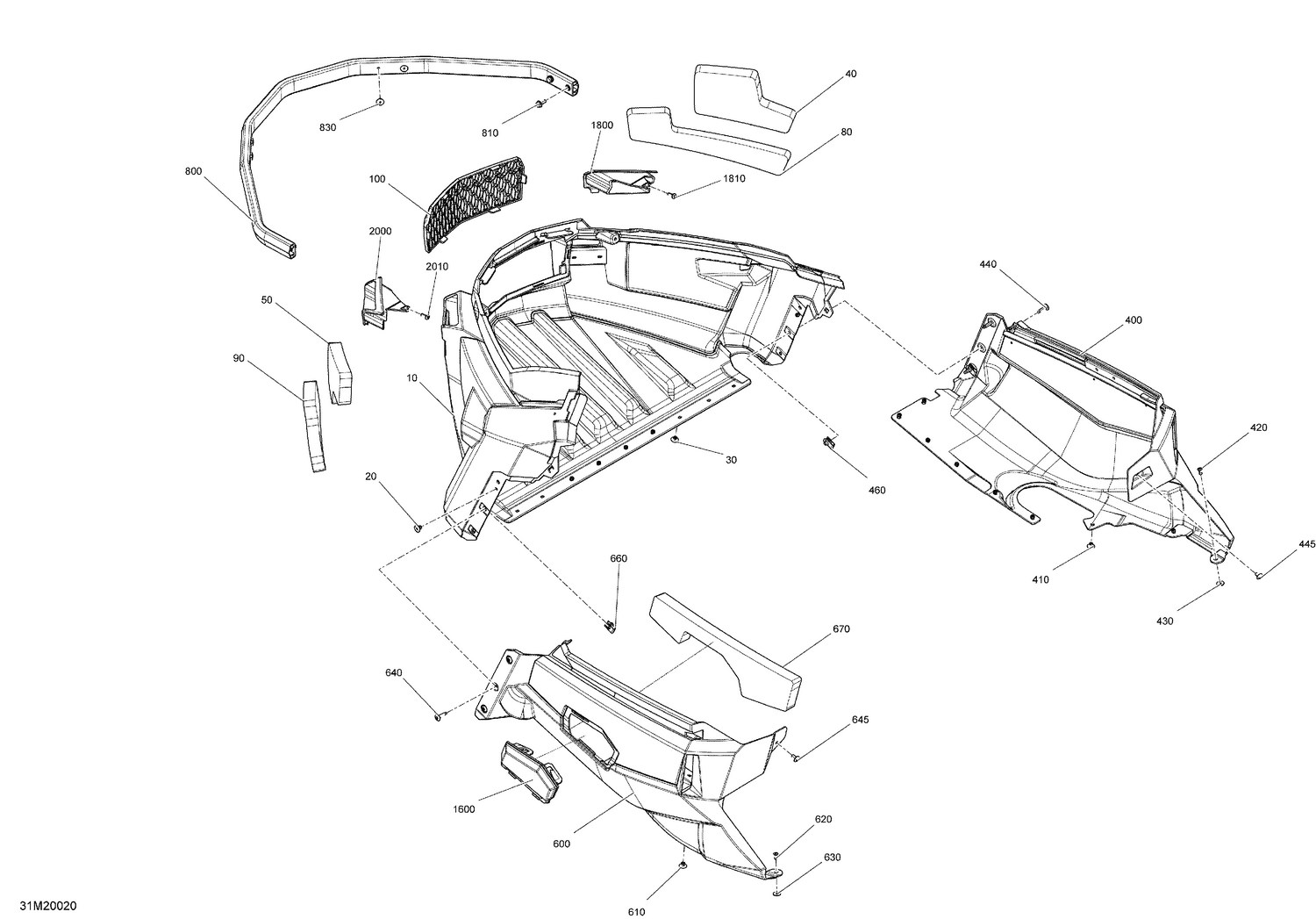

09- Body - Bottom Pan
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007362 | Bottom Pan |
| 20 | 293150104 | Pop Rivet 3/16" |
| 30 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007204 | RH Upper Bottom Pan Foam |
| 50 | 502007205 | LH Upper Bottom Pan Foam |
| 80 | 502007206 | RH Lower Bottom Pan Foam |
| 90 | 502007207 | LH Lower Bottom Pan Foam |
| 100 | 502006887 | Botton Pan Grille |
| 400 | 502006965 | Black RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 420 | 390402300 | Pop Rivet 3/16" |
| 430 | 517124300 | Washer |
| 440 | 250000618 | Torx Screw M6 X 25 |
| 445 | 250000995 | Torx-truss M/s M6 X 10 |
| 460 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 600 | 502006966 | Black LH Bottom Pan |
| 610 | 293150104 | Pop Rivet 3/16" |
| 620 | 390402300 | Pop Rivet 3/16" |
| 630 | 517124300 | Washer |
| 640 | 250000618 | Torx Screw M6 X 25 |
| 645 | 250000767 | Torx Truss Screw M6 X 12 |
| 660 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 670 | 502007208 | LH Bottom Pan Foam |
| 800 | 502007121 | Black Front Bumper |
| 810 | 207661644 | Hex. Flange Screw M6 X 16 |
| 830 | 293150104 | Pop Rivet 3/16" |
| 1600 | 502006970 | Black Bottom Pan Door |
| 1800 | 502007127 | RH Air Inlet |
| 1810 | 250000720 | Torx Screw K50 X 16 |
| 2000 | 502007128 | LH Air Inlet |
